Memory

Intel/AMD AM4

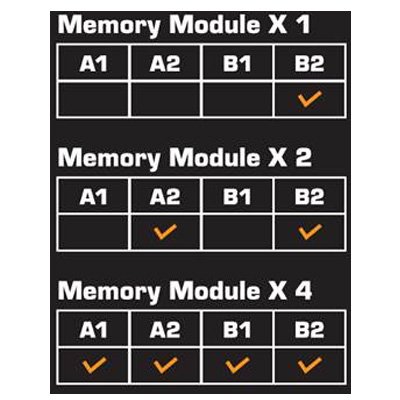

(A) Refer to ASRock motherboard manual for single/dual memory module
installation preference
Refer to ASRock motherboard manual for single/dual memory module
(B) Open memory slot by pressing down the Latch
Open memory slot by pressing down the Latch
(C) Use both hands to install memory modules firmly
Use both hands to install memory modules firmly
(D) Make sure you hear a “click”, indicating memory modules installed correctly
Make sure you hear a “click”, indicating memory modules installed correctly
