• Unique Feature
  ASRock USB 3.1 Gen2
  - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
  - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
  ASRock Super Alloy

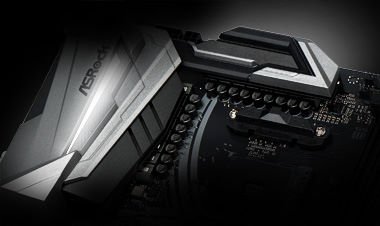

  - XXL Aluminum Alloy Heatsink

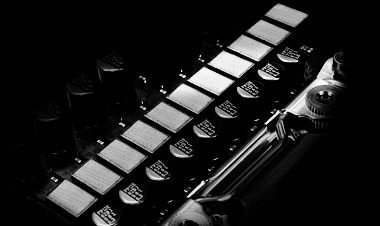

  - Premium 60A Power Choke
  - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  - Dual-Stack MOSFET (DSM)
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

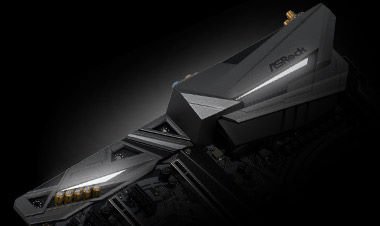

  - I/O Armor
  - Matte Black PCB
  - High Density Glass Fabric PCB
  - 2oz Copper PCB
  AQUANTIA^® / Marvell 10G LAN

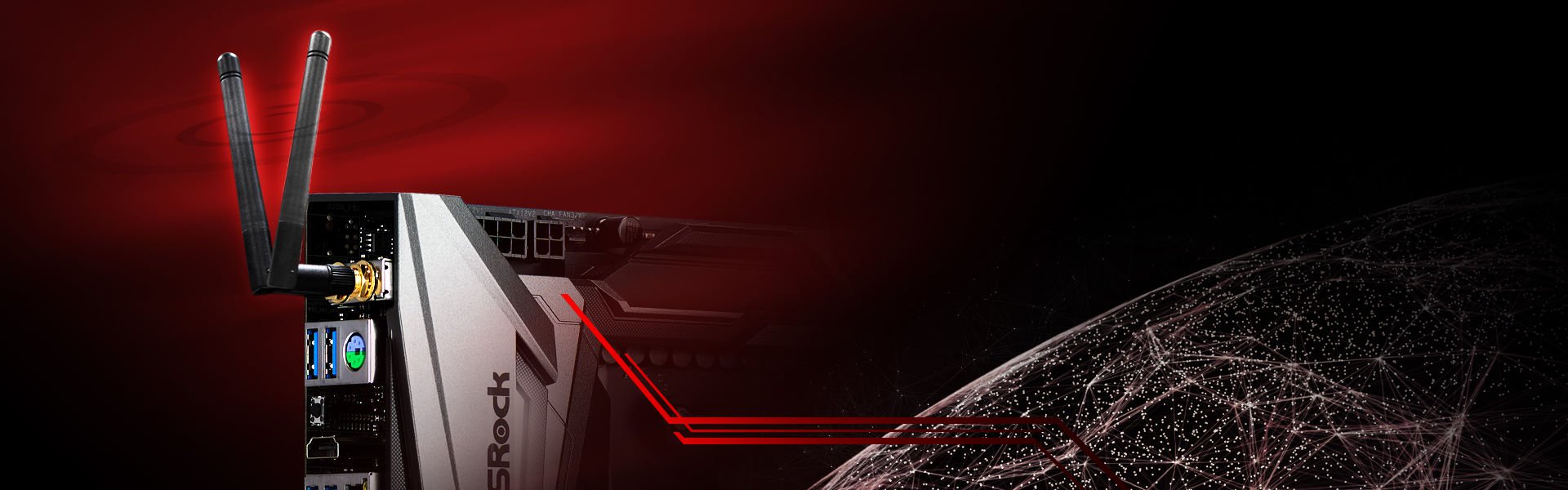

  Intel^® 802.11ac WiFi

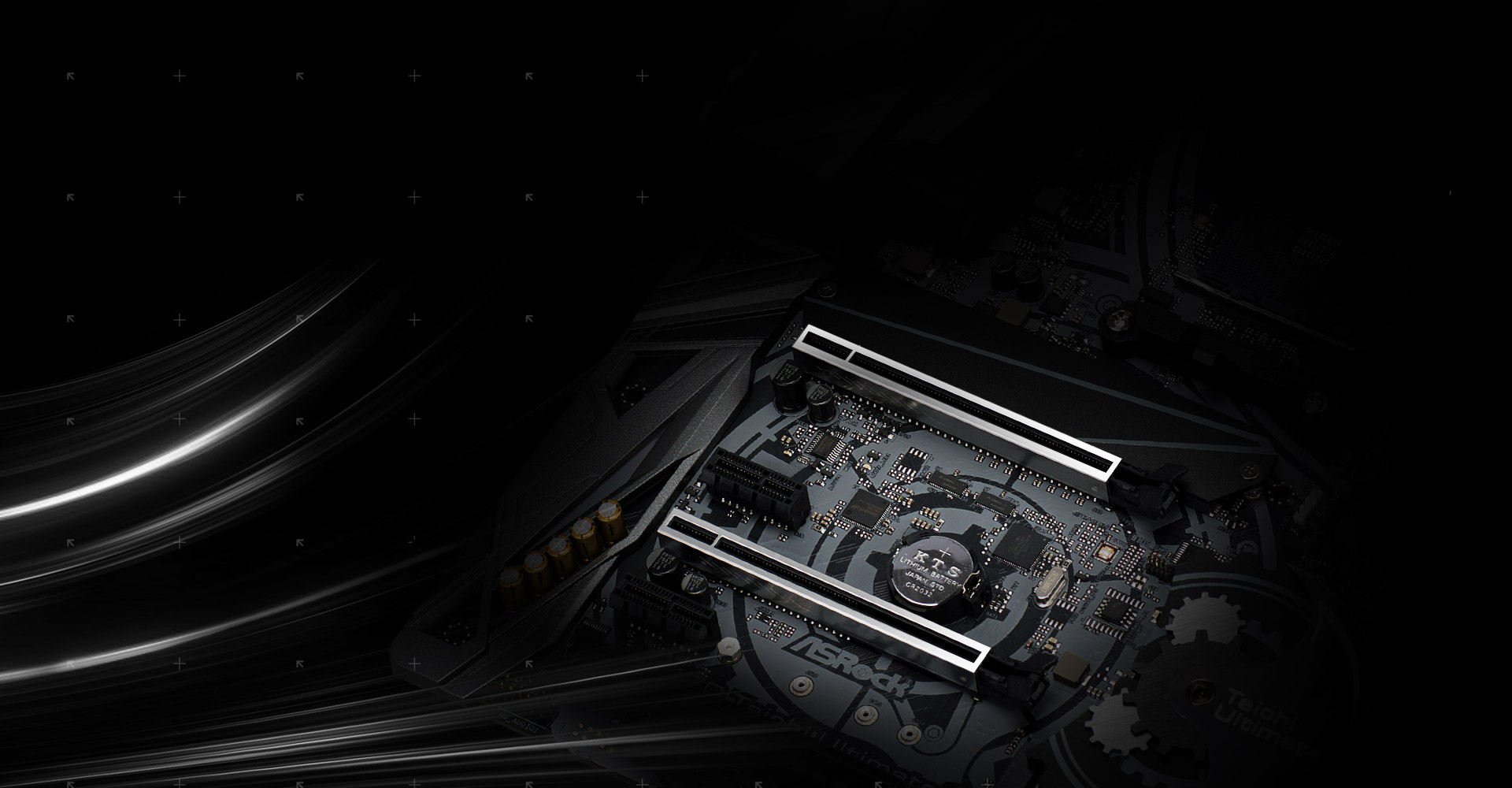

  ASRock Steel Slots
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Ultra USB Power
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  - IR Digital PWM
  - 16 Power Phase design
  - Capable of providing extra 300W for CPU
  - Supports ASRock Hyper BCLK Engine II
• Chipset
  - AMD Promontory X470
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  - Max. capacity of system memory: 64GB**
  - 15μ Gold Contact in DIMM Slots



  *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
  Please refer to below table for AMD non-XMP memory frequency support.

  Ryzen Series CPUs (Vermeer):


  Ryzen Series APUs (Cezanne):


  Ryzen Series APUs (Renoir):


  Ryzen Series CPUs (Matisse):


  Ryzen Series CPUs (Pinnacle Ridge):


  Ryzen Series CPUs (Picasso):


  Ryzen Series CPUs (Summit Ridge):


  Ryzen Series CPUs (Raven Ridge):


  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
• Graphics
  - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  - DirectX 12, Pixel Shader 5.0
  - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Ports (Compliant HDMI monitor is required)
  - Supports HDCP 1.4 with HDMI 1.4 Port
  - Supports 4K Ultra HD (UHD) playback with HDMI Port



  *Actual support may vary by CPU

  **The Max shared memory 16GB requires 32GB system memory installed.
• Audio
  - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Supports Purity Sound™ 4
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB isolate shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - RGB LED
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports DTS Connect
• LAN
  1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA^® / Marvell AQC107):
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports PXE
  1 x Intel^® Gigabit LAN 10/100/1000 Mb/s (1 x Intel^® I211AT):
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Wireless LAN
  - Intel^® 802.11ac WiFi Module
  - Supports IEEE 802.11a/b/g/n/ac
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 433Mbps
  - Supports Bluetooth 4.2 / 3.0 + High speed class II
• Slots
  AMD Ryzen series CPUs (Vermeer, Cezanne, Renoir, Matisse, Summit Ridge and Pinnacle Ridge)
  - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*
  AMD Ryzen series CPUs (Picasso, Raven Ridge)
  - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*
  AMD Athlon series CPUs
  - 1 x PCI Express 3.0 x16 Slot (single at x4 (PCIE1))*

  - 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)**
  - 2 x PCI Express 2.0 x1 Slots (Flexible PCIe)
  - Supports AMD Quad CrossFireX™ and CrossFireX™***
  - Supports NVIDIA^® Quad SLI™ and SLI™****
  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)



  *Supports NVMe SSD as boot disks

  **If PCIE5 slot is occupied, M2_2 will be disabled

  ***This feature is only supported with Ryzen Series CPUs (Vermeer, Cezanne, Renoir, Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge).

  ****This feature is only supported with Ryzen Series CPUs (Vermeer, Cezanne, Renoir, Matisse, Summit Ridge and Pinnacle Ridge).
• Storage
  - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Cezanne, Renoir, Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*
  - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)*



  *If M2_2 is occupied, PCIE5 slot will be disabled
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  - 1 x TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x AMD Fan LED Header*
  - 1 x RGB LED Header**
  - 1 x Addressable LED Header***
  - 1 x CPU Fan Connector (4-pin)****
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 1 x AMD LED Fan USB Header
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
  - 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142)
  - 1 x Clear CMOS Button
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED



  *The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

  **Supports in total up to 12V/3A, 36W LED Strip

  ***Supports in total up to 5V/3A, 15W LED Strip

  ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x Optical SPDIF Out Port
  - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)*
  - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)*
  - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Button
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



  *Ultra USB Power is supported on USB3_5_6 ports.
  ACPI wake-up function is not supported on USB3_5_6 ports.
• Software and UEFI
  Software
  - ASRock A-Tuning
  - ASRock Polychrome SYNC
  UEFI
  - ASRock Full HD UEFI
  - ASRock Instant Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 4 x SATA Data Cables
  - 1 x ASRock SLI_HB_Bridge_2S Card
  - 2 x ASRock WiFi 2.4/5 GHz Antennas
  - 2 x Screws for M.2 Sockets
• Hardware Monitor
  - Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
• Form Factor
  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 2oz Copper PCB
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit*



  *Summit Ridge do not officially support Windows^® 11.
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
