ASRock vBIOS Upgrade Instruction

Radeon RX 5700 XT Taichi vBIOS Update Procedures

Radeon RX 5700 XT Taichi X 8G OC+ supports OC BIOS and Silent BIOS. Users will need to update both vBIOS.

1. Power down the system and switch the vBIOS to [OC BIOS].

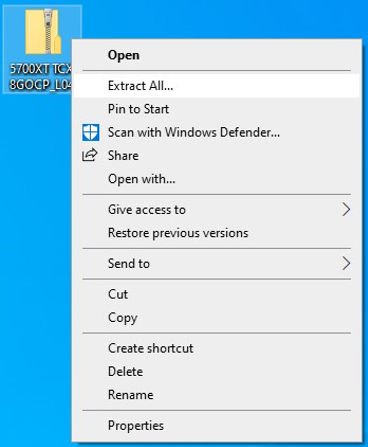

2. Download the vBIOS file and right click on it to choose the "Extract all".

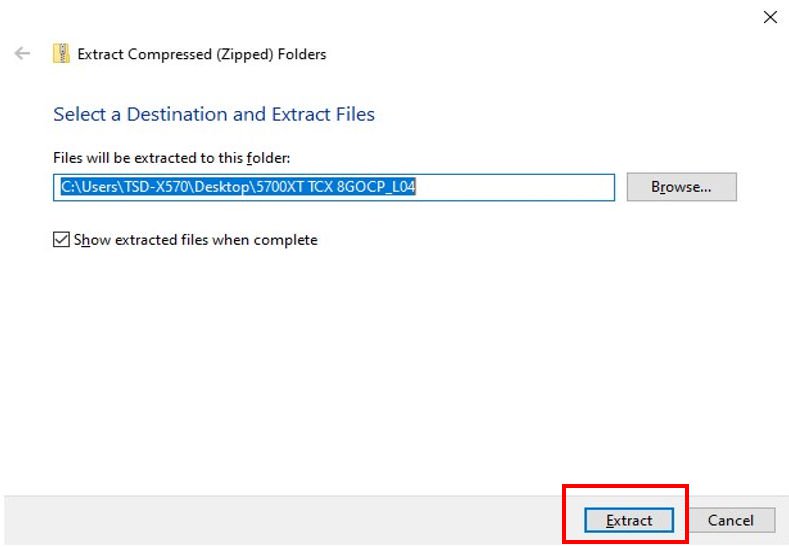

3. Extract Compressed folders.

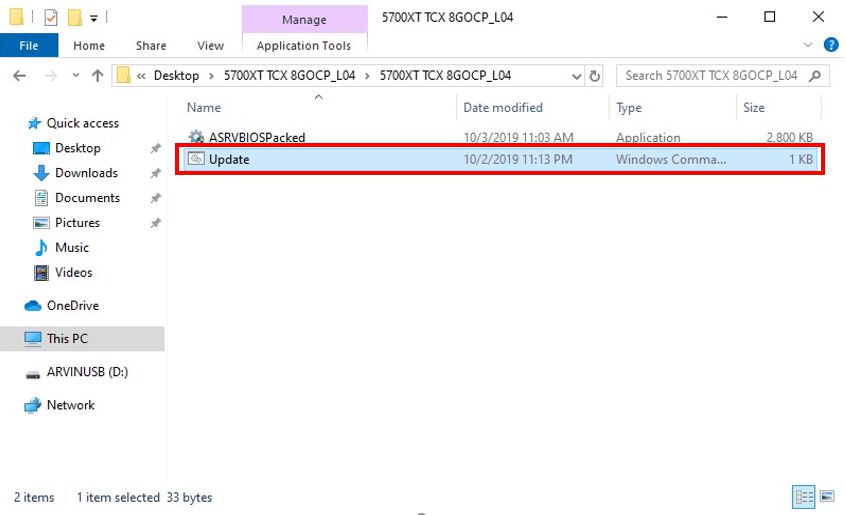

4. Double click the "Update" file and the vBIOS update procedures start.

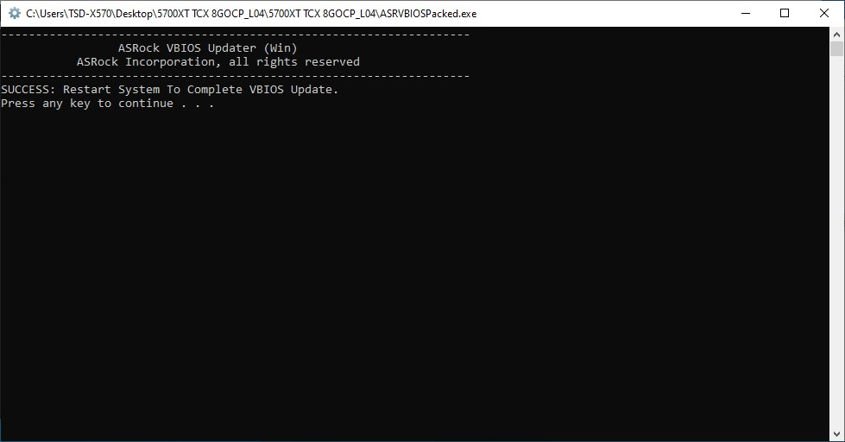

5. After vBIOS update is finished, it will show "SUCCESS: Restart System To Complete VBIOS Update".

   Please press any key and reboot your system to finish the BIOS update procedures.
6. Power down the system and refer to Step 1 to switch the vBIOS to [SILENT BIOS].

7. Repeat Step 2 to Step 5 to update the "SILENT BIOS".
