Jupiter H470

Supports 10th/11th Gen Intel^® Core™ Processors (LGA1200), up to 65W

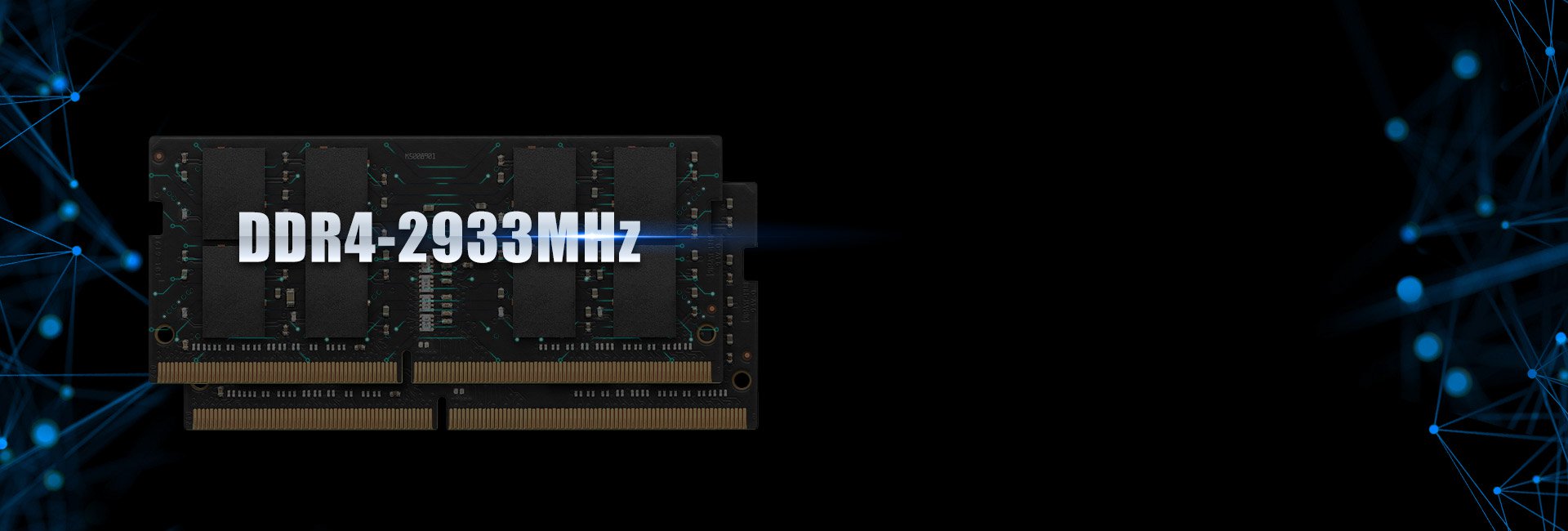

Supports DDR4-2933MHz Dual Channel Memory, up to 64GB.
Integrated Cooling Solution
2 x USB 3.2 Gen1 Type-C
6 x USB 3.2 Gen1 Type-A
Dual DisplayPort, HDMI
Supports M.2 Wi-Fi ac/ax module

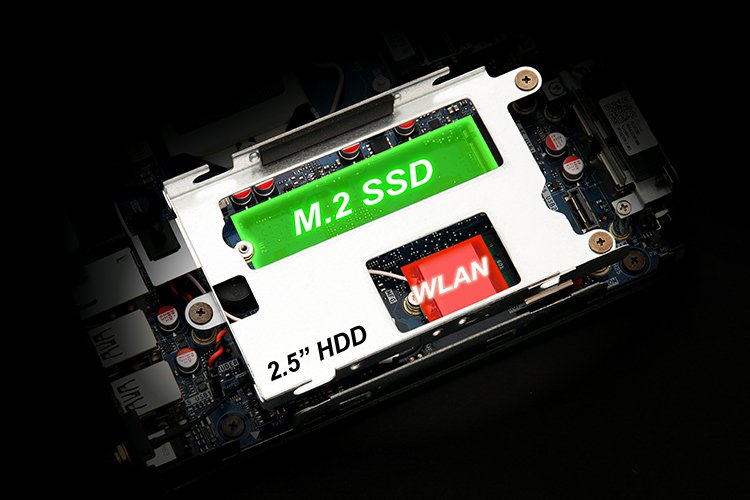

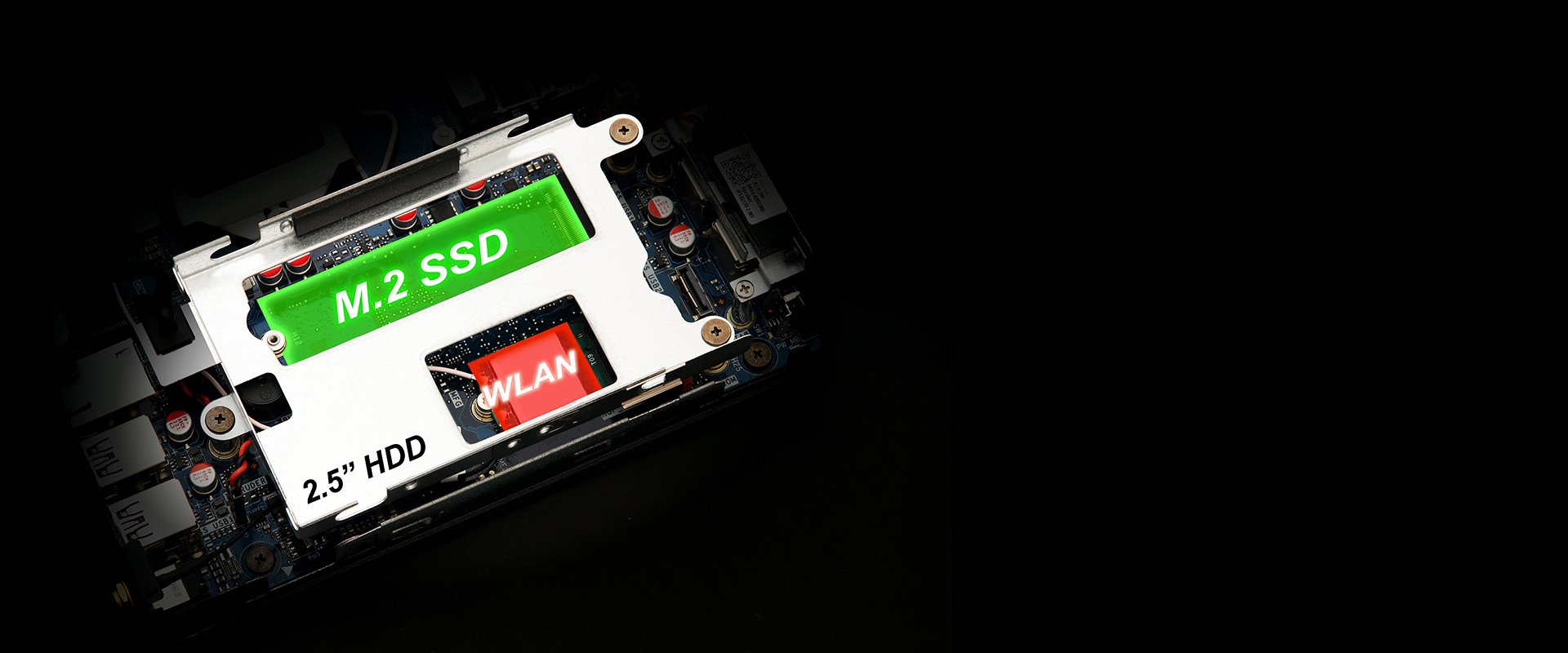

Supports M.2 (2280) PCIe Gen3 x4 NVMe / SATA 6Gb SSD
2.5" Hard Drive Bay
1 x RS232 (COM) Port
Support Intel Optane™ Technology

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

Jupiter H470

CPU
- Supports 10th/11th Gen Intel^® Core™ Processors (LGA1200) (Max. TDP 65W)
Chipset
- Intel^® H470 Chipset
Cooler
- Integrated Cooling Solution
Memory
- Supports 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC)*

*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.
Graphics
- Integrated Intel^® UHD Graphics
Graphics Output

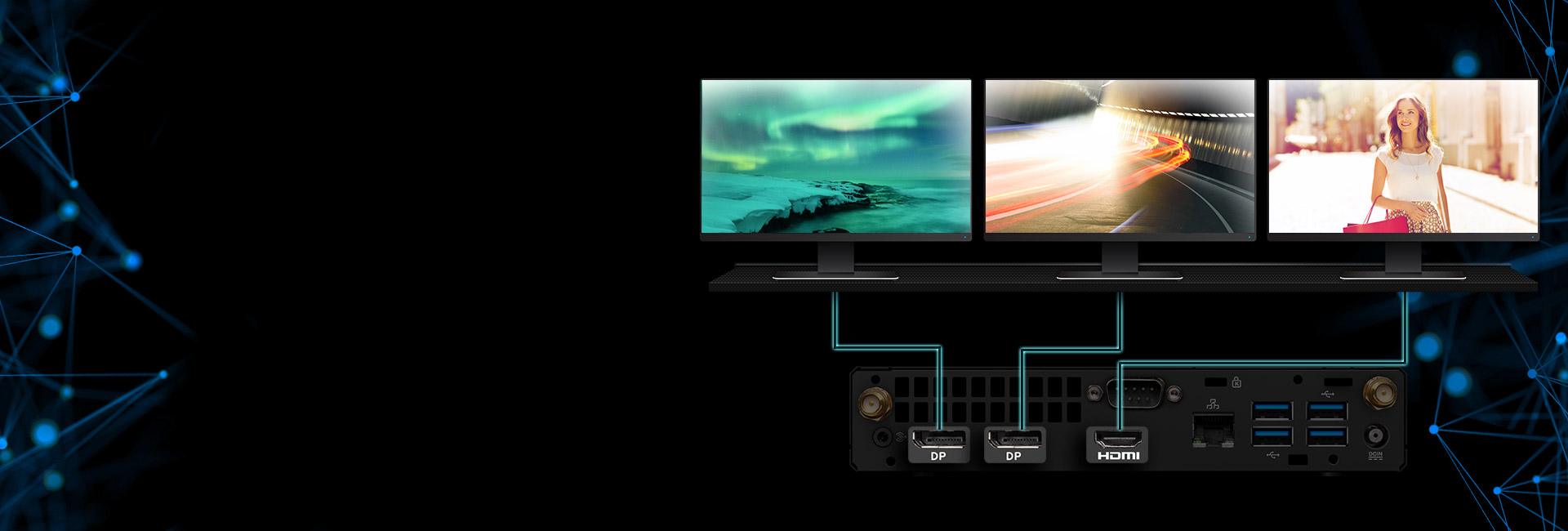

- 2 x DisplayPort (4K@60Hz)
- 1 x HDMI (4K@30Hz or 4K@60Hz )**

*Supports up to 3 displays simultaneously

**11th Gen Core Processor can support HDMI 4K@60Hz .
Audio
- 1 x Head Phone with Mic Jack
- 1 x Mic-In
- 1 x Speaker Out
- 1 x 2W Speaker
- Realtek ALC233

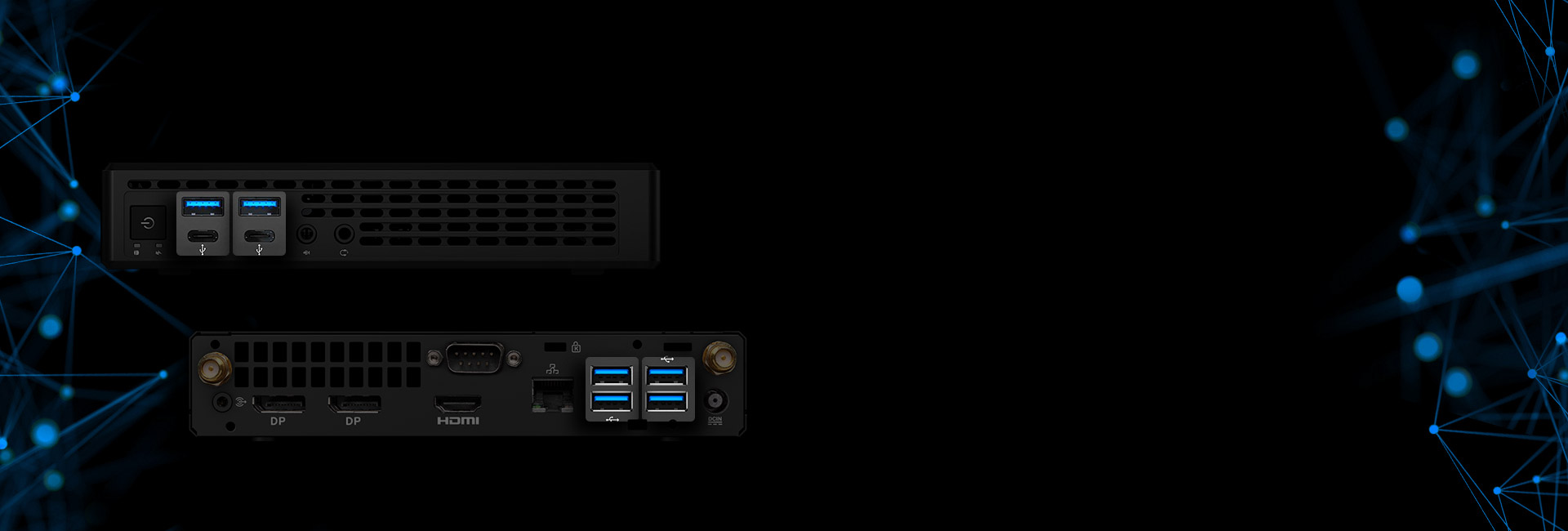

Front USB
- 2 x USB 3.2 Gen1 Type-C
- 2 x USB 3.2 Gen1 Type-A
Rear USB
- 4 x USB 3.2 Gen1 Type-A
Storage
- M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
LAN
- 1 x RJ45 Gigabit LAN
- Intel^® I219V
WLAN

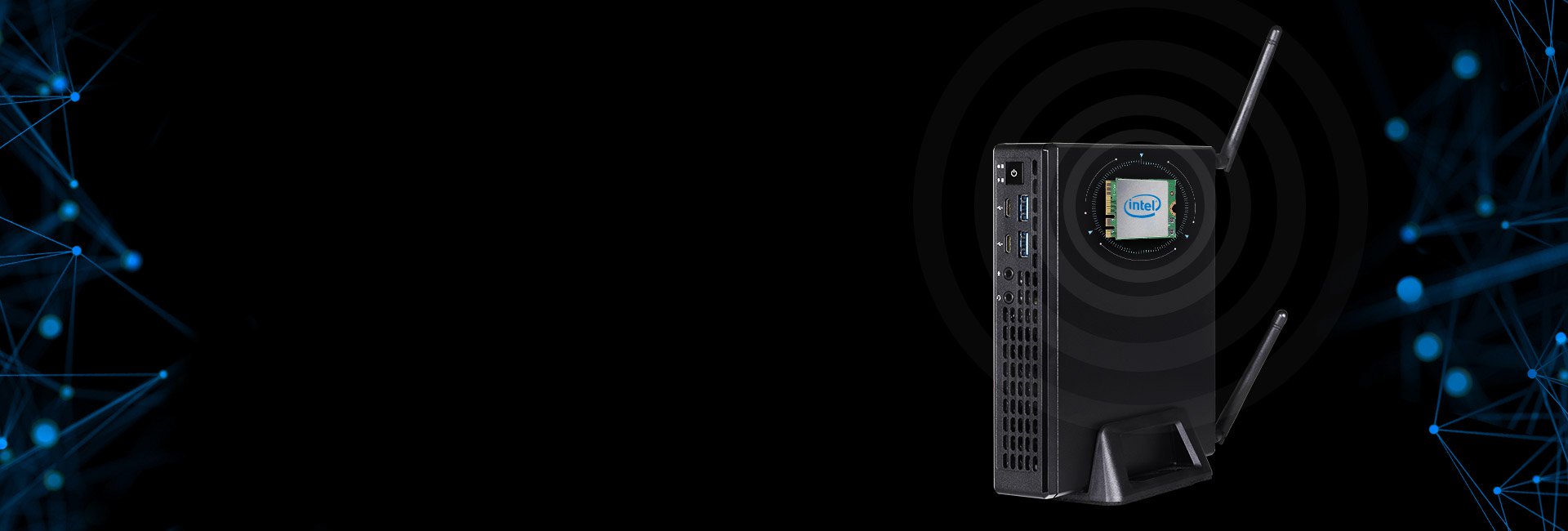

- Intel^® AC-3168 Wi-Fi Module (optional)
Connectors
1 x 4-Pin Fan Connector
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header
1 x 2-Pin Chassis Intrusion Header
1 x COM Port Header*
1 x D-Sub Header*

*COM Port shared with D-Sub
Power Unit
- 90W/19V Adapter
Accessory
- 1 x SATA Data with Power Cable
- 1 x Screws Pack

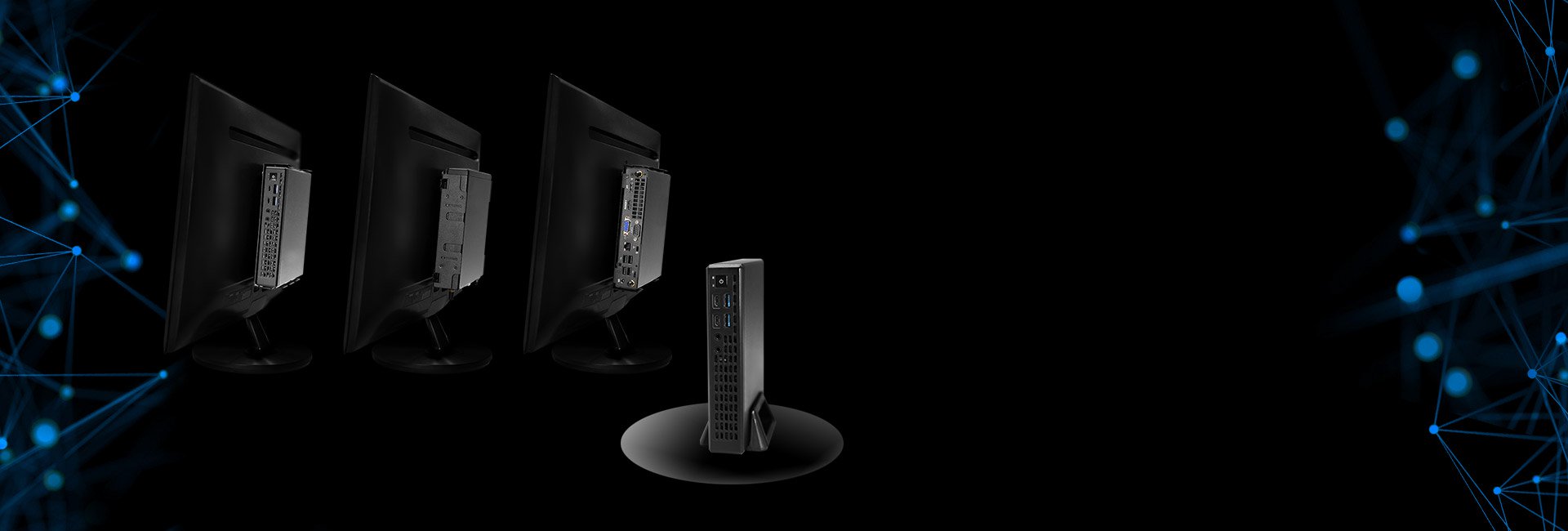

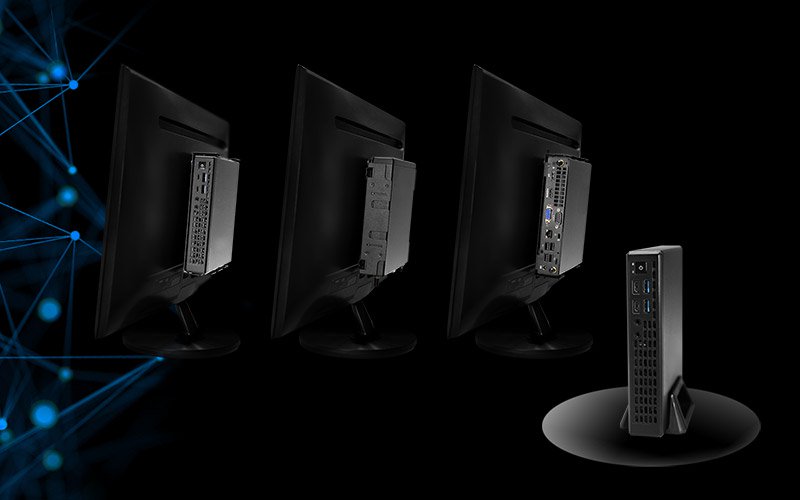

- 1 x Stand
- 1 x VESA Mount
- 2 x Antenna
Dimension
- Motherboard: 170 x 170 (Proprietary)
- Barebones: 178 x 178 x 34 mm (1.0L)

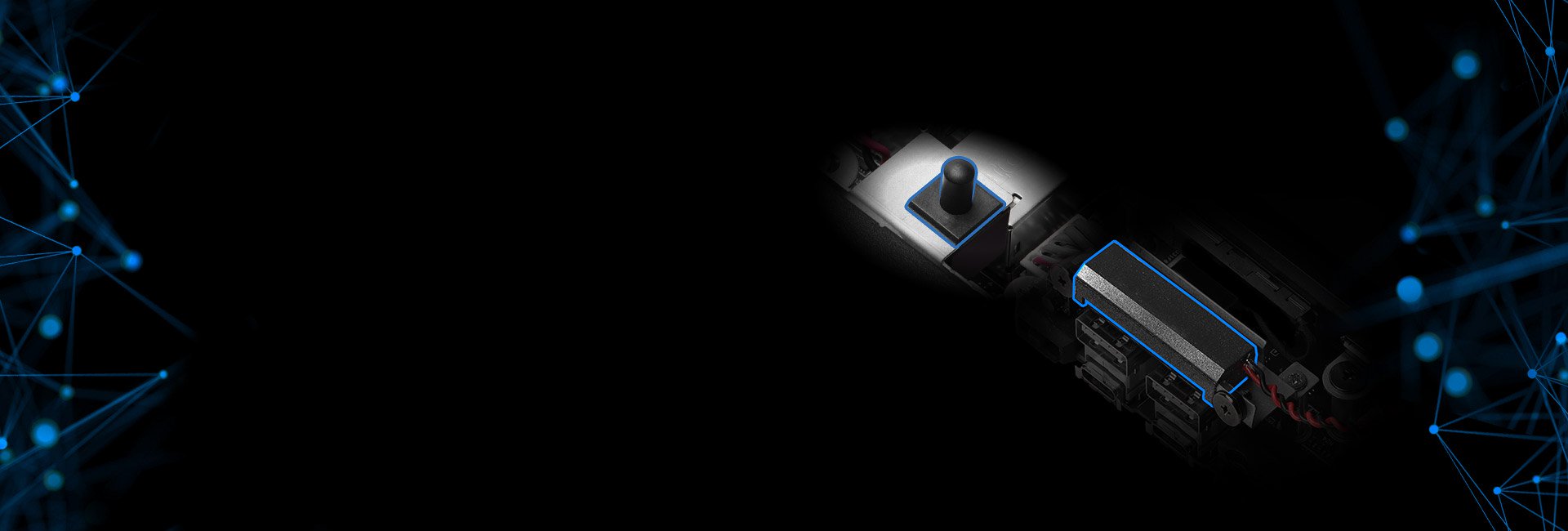

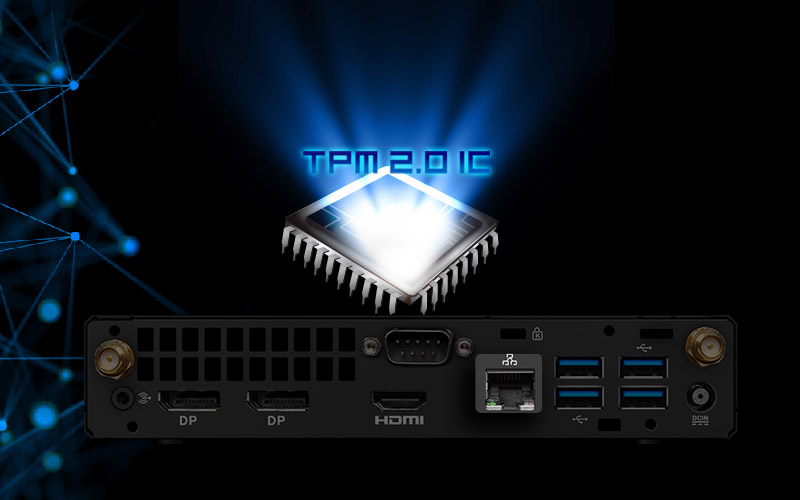

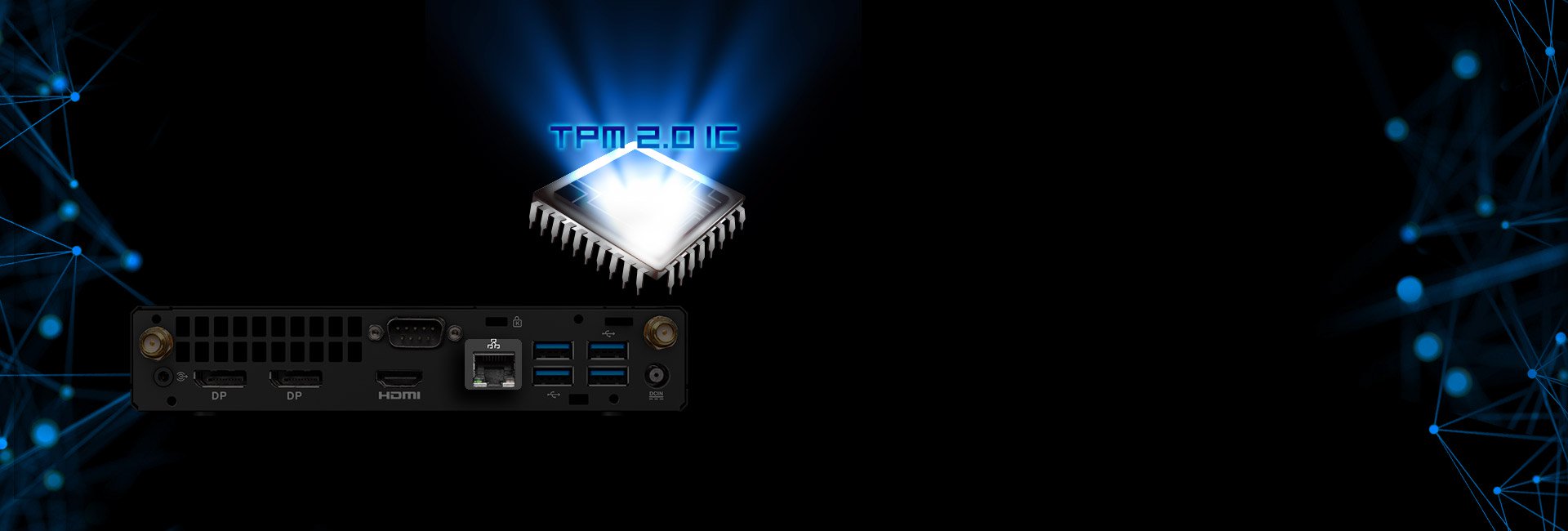

Security
- Kensington lock
- Key Lock
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
