ASRock Mars 4000U Series

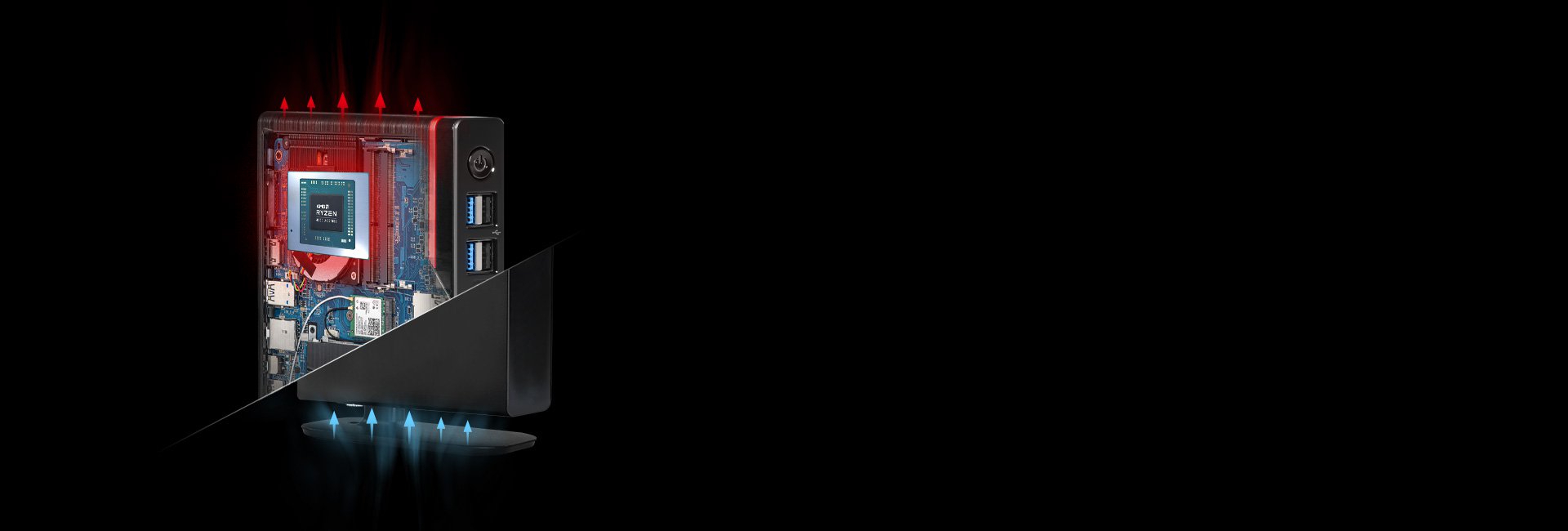

CPU
- AMD Ryzen™ 7 4800U (8C16T, Turbo 4.2GHz)

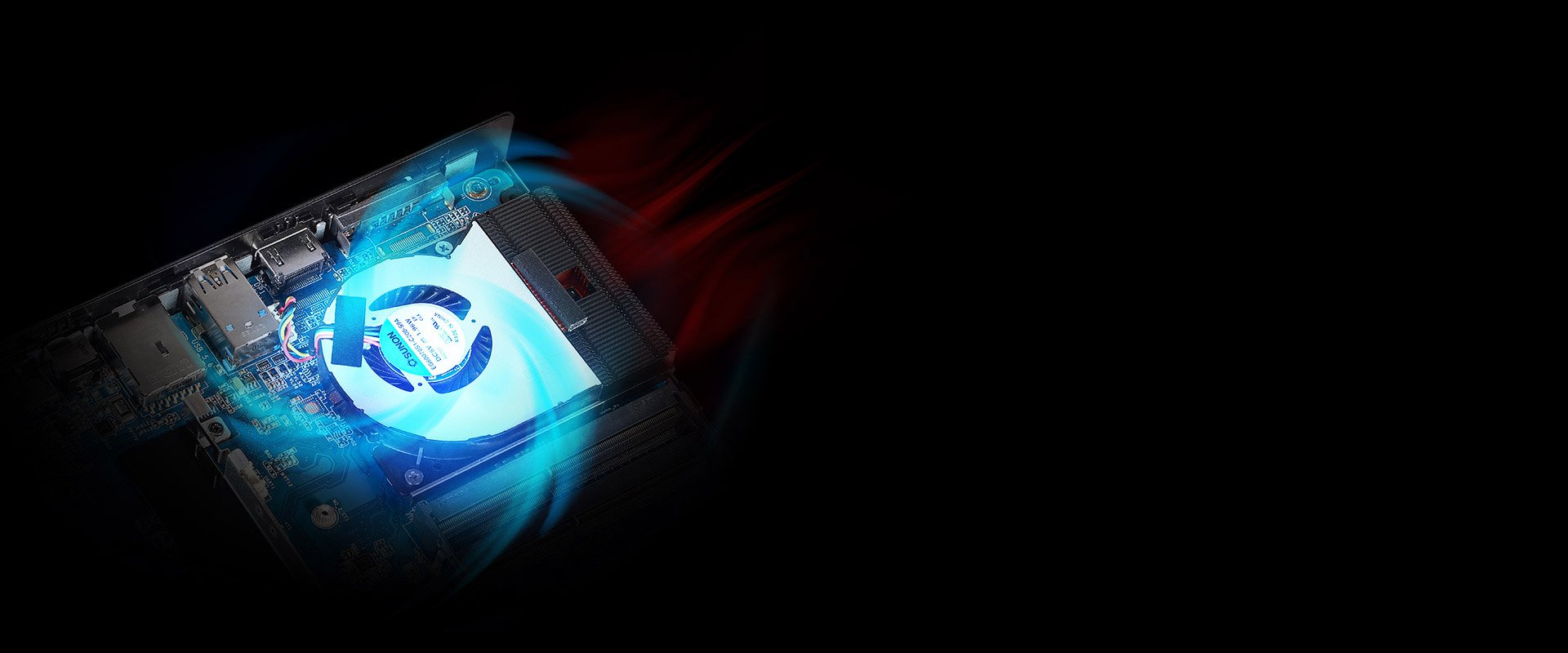

Cooler
- Integrate Proprietary Fansink

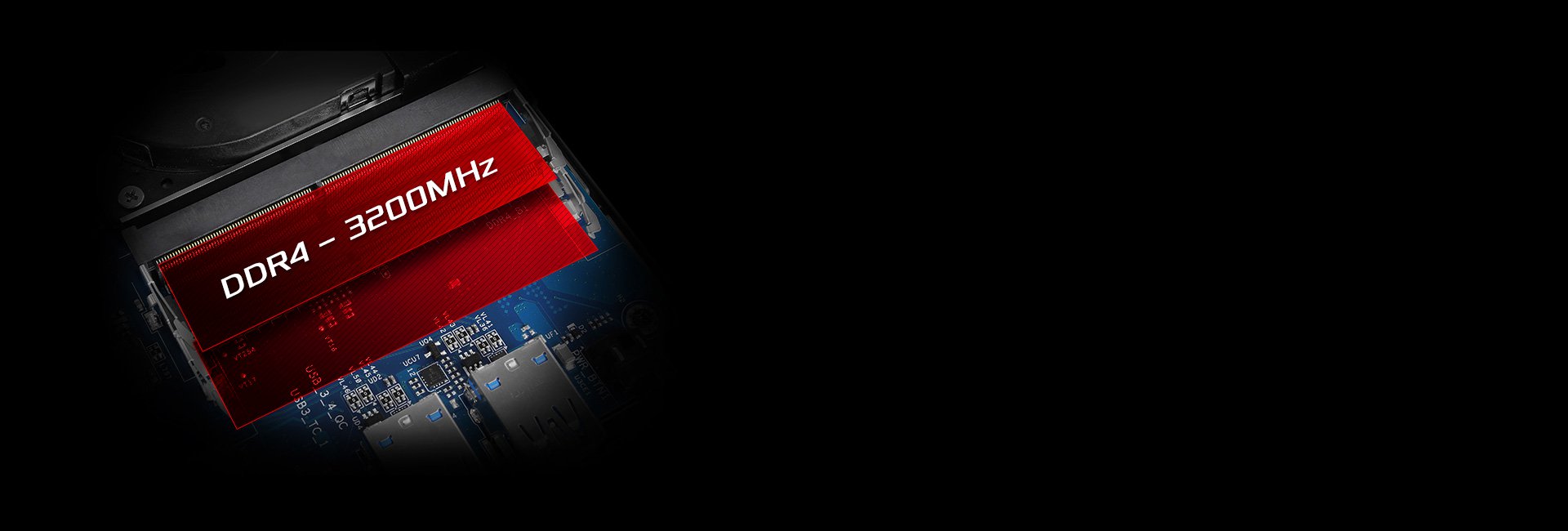

Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- AMD Radeon™ Graphics

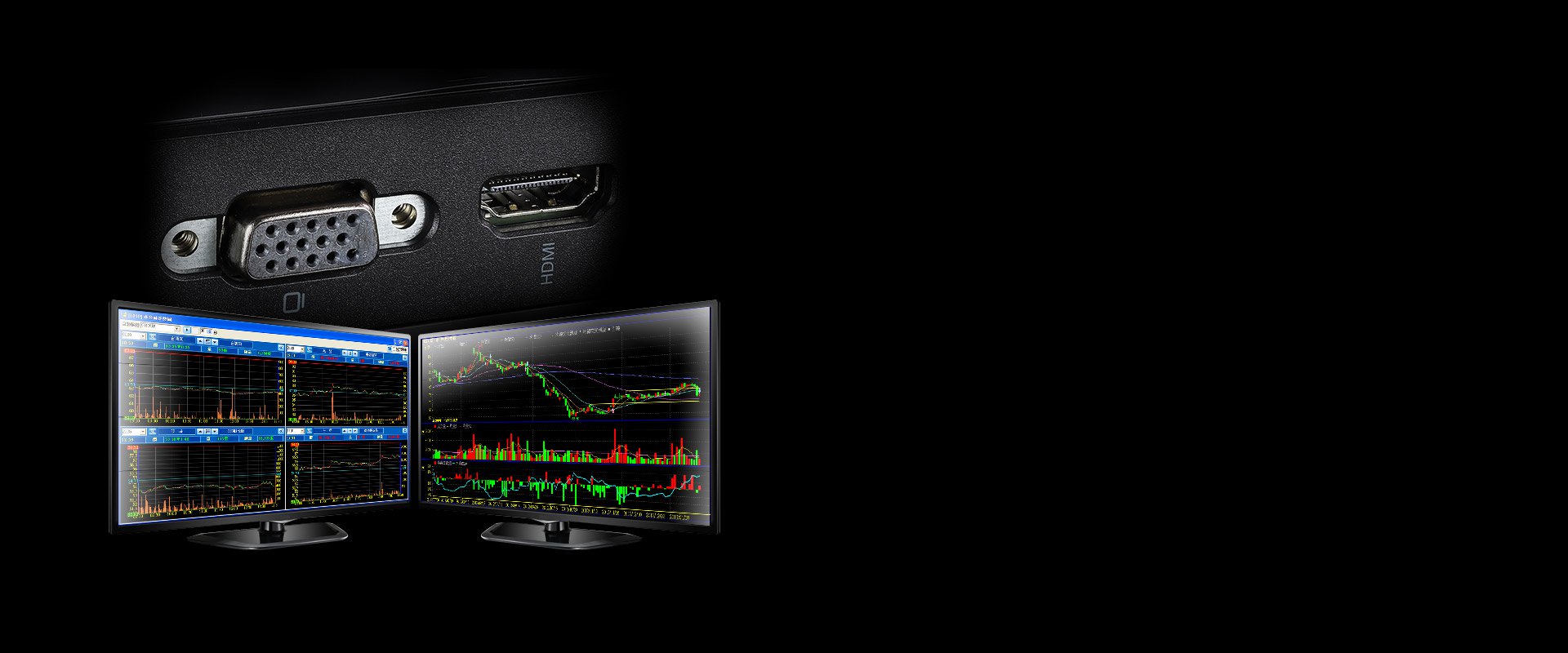

Graphics Output
- 1 x HDMI (4K@60Hz)
- 1 x D-Sub (1920x1080)

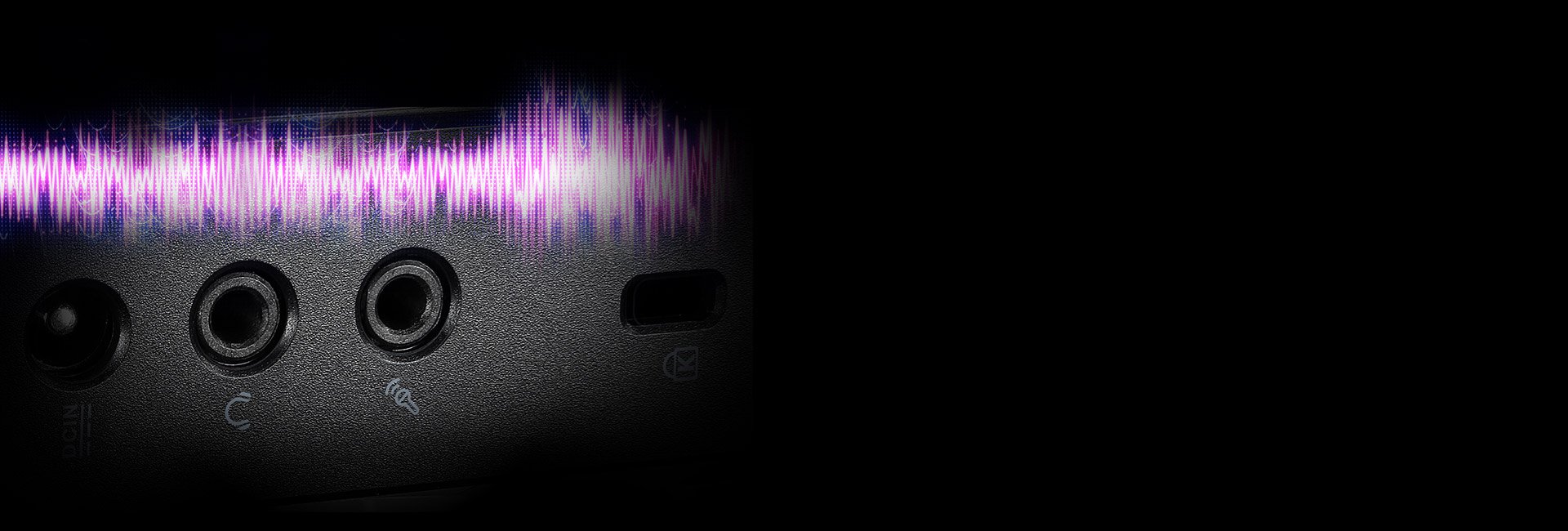

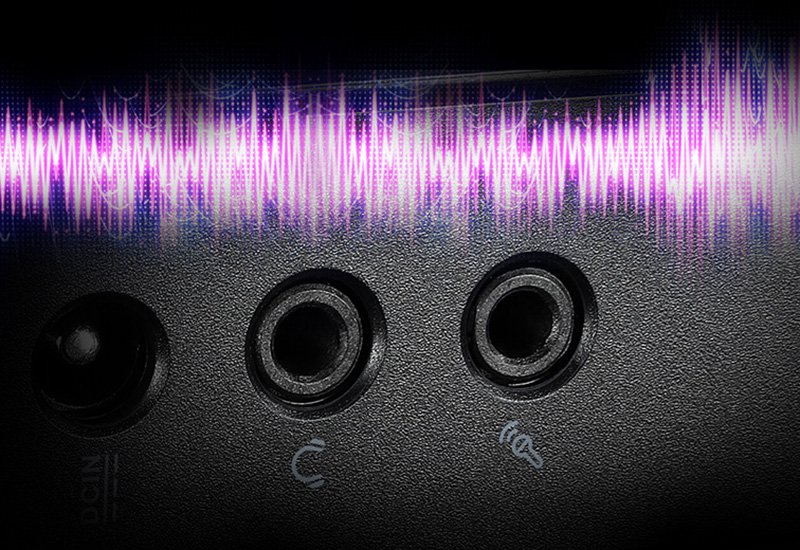

Audio
- Realtek ALC233-VB2
- 1 x Line Out
- 1 x Microphone

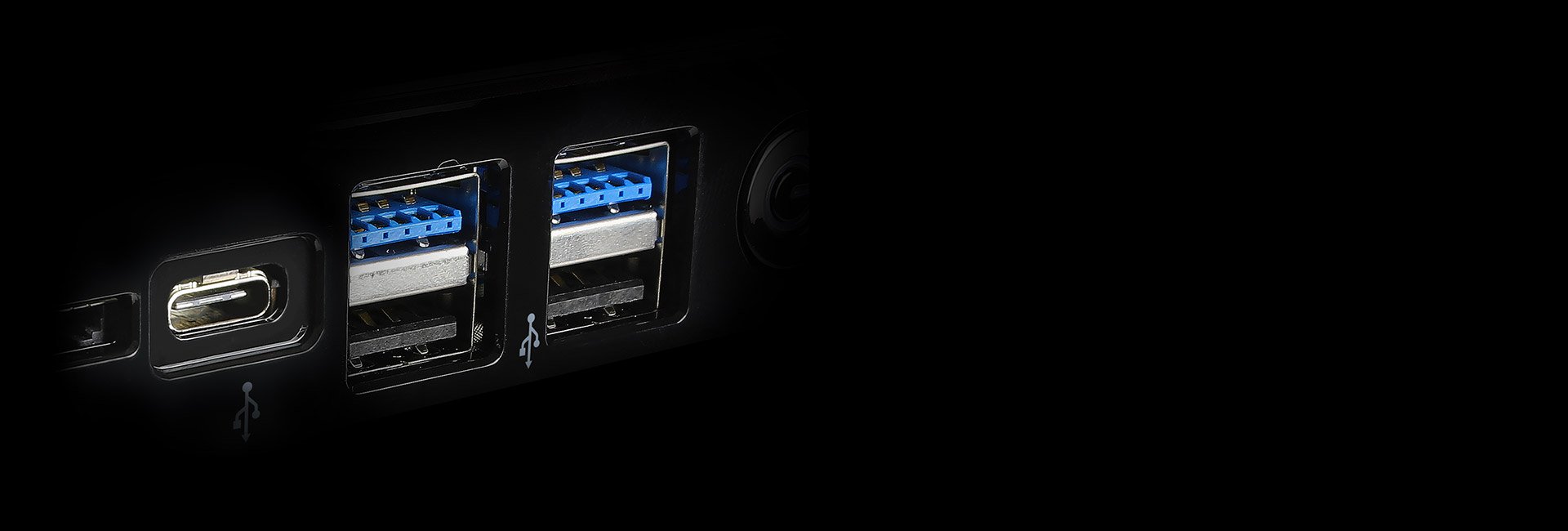

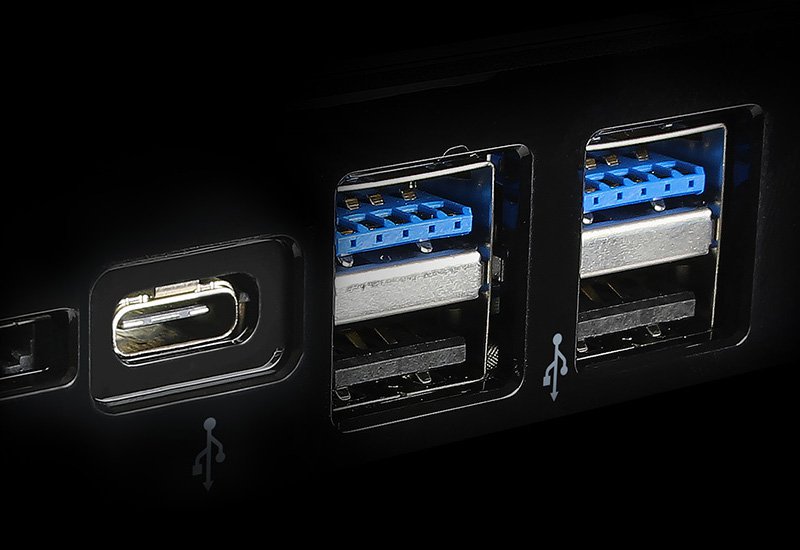

Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps)
- 2 x USB 3.2 Gen1 Type-A (5Gbps)
- 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A

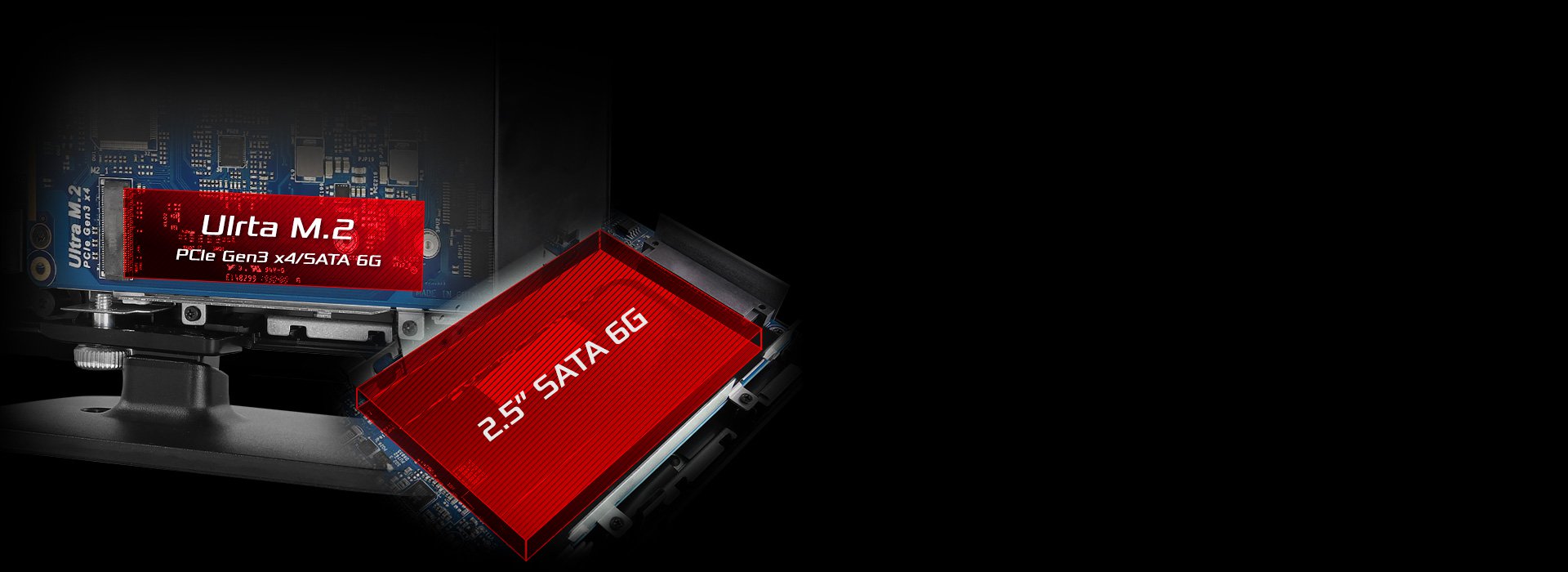

Storage
- 1x Ultra M.2 (2280) PCIe Gen3 x4 & SATA 6Gb
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive

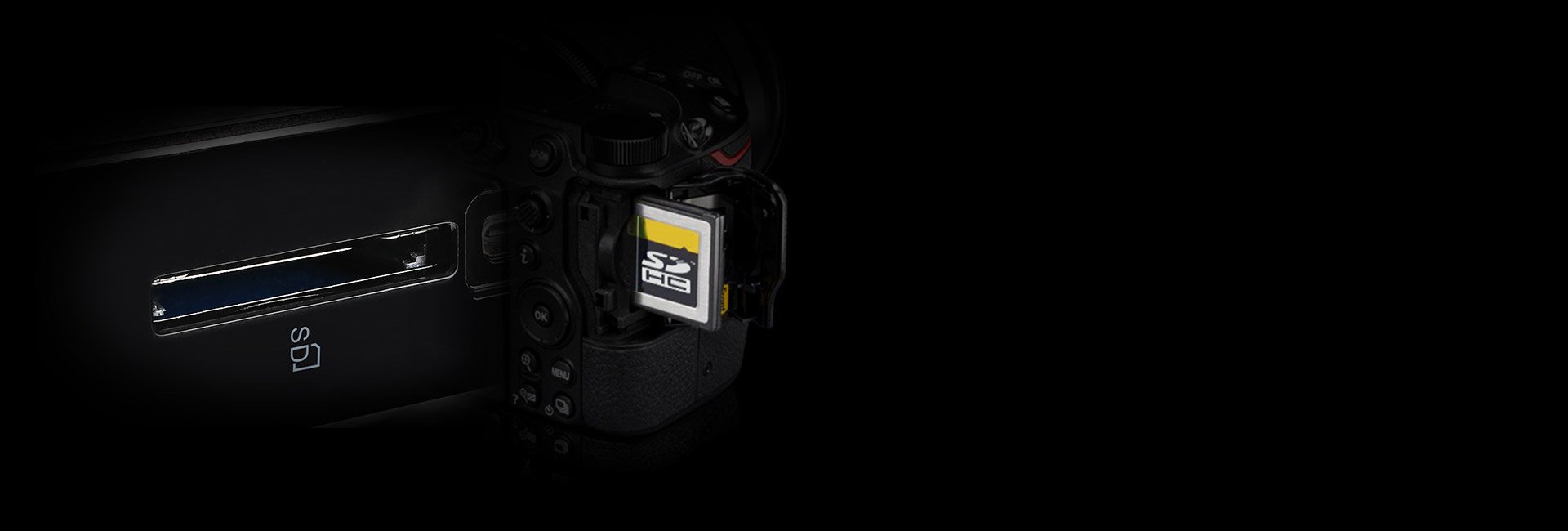

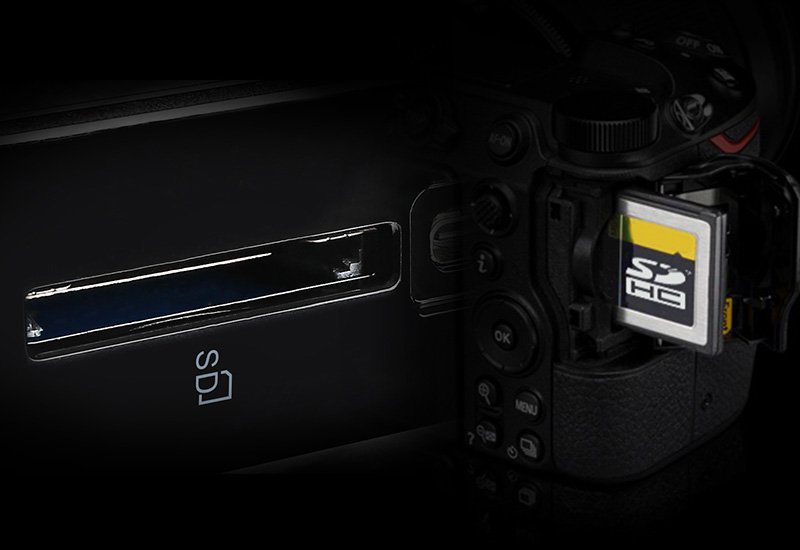

- 1 x SD Card Reader
LAN
- 1 x RJ45 Gigabit LAN

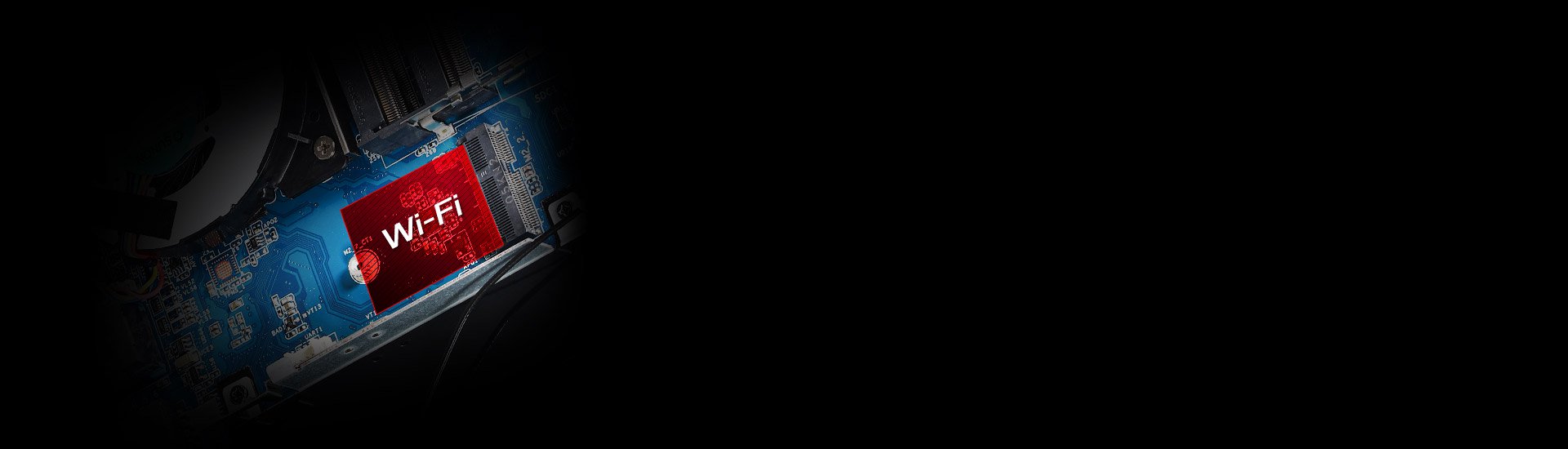

WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
- Intel^® AX200 Wi-Fi 6 Module
Power Unit
- 65W/19V Adapter
Dimension
- 194 x 150 x 26 mm (~0.7L)
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certification
- CE, FCC
Remark

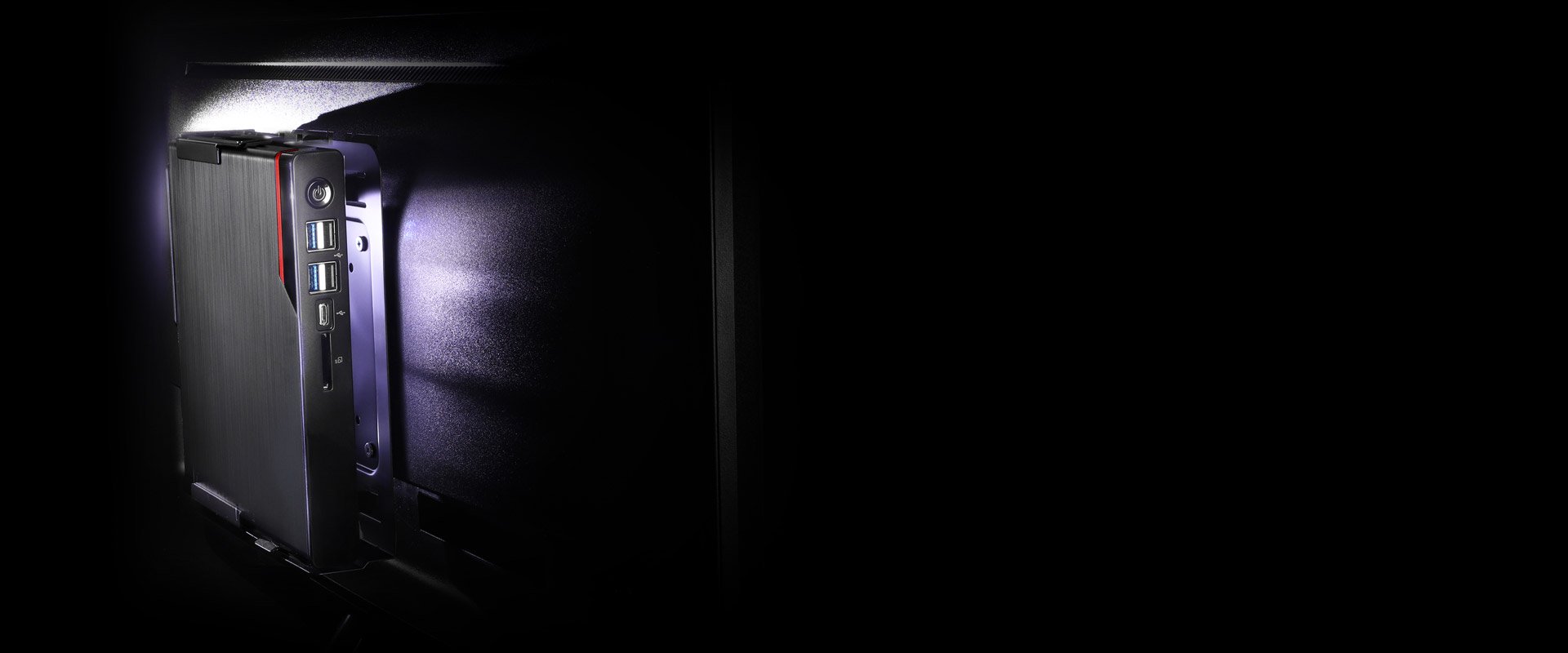

- VESA Mount
- Stand

CPU
- AMD Ryzen™ 5 4500U (6C6T, Turbo 4.0GHz)
Cooler
- Integrate Proprietary Fansink
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- AMD Radeon™ Graphics
Graphics Output
- 1 x HDMI (4K@60Hz)
- 1 x D-Sub (1920x1080)
Audio
- Realtek ALC233-VB2
- 1 x Line Out
- 1 x Microphone
Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps)
- 2 x USB 3.2 Gen1 Type-A (5Gbps)
- 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A
Storage
- 1x Ultra M.2 (2280) PCIe Gen3 x4 & SATA 6Gb
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x SD Card Reader
LAN
- 1 x RJ45 Gigabit LAN (Realtek RTL8111H)
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
- Intel^® AX200 Wi-Fi 6 Module
Power Unit
- 65W/19V Adapter
Dimension
- 194 x 150 x 26 mm (~0.7L)
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certification
- CE, FCC
Remark
- VESA Mount
- Stand

CPU
- AMD Ryzen™ 3 4300U (4C4T, Turbo 3.7GHz)
Cooler
- Integrate Proprietary Fansink
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- AMD Radeon™ Graphics
Graphics Output
- 1 x HDMI (4K@60Hz)
- 1 x D-Sub (1920x1080)
Audio
- Realtek ALC233-VB2
- 1 x Line Out
- 1 x Microphone
Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps)
- 2 x USB 3.2 Gen1 Type-A (5Gbps)
- 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A
Storage
- 1x Ultra M.2 (2280) PCIe Gen3 x4 & SATA 6Gb
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x SD Card Reader
LAN
- 1 x RJ45 Gigabit LAN
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
- Intel^® AX200 Wi-Fi 6 Module
Power Unit
- 65W/19V Adapter
Dimension
- 194 x 150 x 26 mm (~0.7L)
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certification
- CE, FCC
Remark
- VESA Mount
- Stand

CPU
- AMD Ryzen™ 7 4800U (8C16T, Turbo 4.2GHz)
- AMD Ryzen™ 7 4700U (8C8T, Turbo 4.1GHz)
- AMD Ryzen™ 5 4600U (6C12T, Turbo 4.0GHz)
- AMD Ryzen™ 5 4500U (6C6T, Turbo 4.0GHz)
- AMD Ryzen™ 3 4300U (4C4T, Turbo 3.7GHz)
Cooler
- Integrate Proprietary Fansink
Memory
- Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
Graphics
- AMD Radeon™ Graphics
Graphics Output
- 1 x HDMI (4K@60Hz) co-layout with DisplayPort
- 1 x D-Sub (1920x1080) co-layout with HDMI
Audio
- Realtek ALC233-VB2
- 1 x Line Out
- 1 x Microphone
Front USB
- 1 x USB 3.2 Gen1 Type-C (5Gbps)
- 2 x USB 3.2 Gen1 Type-A (5Gbps)
- 2 x USB 2.0
Rear USB
- 2 x USB 3.2 Gen1 Type-A
Storage
- 1x Ultra M.2 (2280) PCIe Gen3 x4 & SATA 6Gb
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (*M.2 slot shared with SATA port)
- 1 x SD Card Reader
LAN
- 1 x RJ45 Gigabit LAN
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors
- 1 x 4-Pin CPU Fan Connector
Power Unit
- 65W/19V Adapter
Dimension
- 7.0-in x 5.7-in, 17.8 cm x 14.5 cm
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
