X99X Killer X99X Killer/3.1 X99M Killer X99M Killer/3.1 Z97X Killer Z97X Killer/3.1 Z97 Killer Z97 Killer/3.1 Z97M Killer H97 Killer

1. Premium 60A Power Choke , 12 Power Phase Design , Digi Power
2. Fatal1ty Mouse Port
3. eSATA
4. Dual Gigabit LAN (Intel® I218V+ Qualcomm® Atheros® AR8171)
5. USB 3.0 5Gb/s
6. Ultra M.2 Socket (PCIe Gen3 x4 & SATA3)
7. Purity Sound™ 2
8. PCIe Power Connector
9. Reset Switch with LED
10. Power Switch with LED
11. 2 x PCIe 3.0 x16 , Supports Quad SLI / Quad CrossFireX
12. 10 SATA3 6Gb/s
13. Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket
14. Premium Memory Alloy Choke , Nichicon 12K Platinum Caps
15. Quad Channel DDR4 Memory Technology 4 x DDR4 3000+(OC), Max. Capacity Up to 64GB Supports DDR4 ECC* / UDIMM, RDIMM Memory Modules

  *ECC is supported with Intel® Xeon® processors
  ASRock Fatal1ty Interview - Newegg TV
ASRock Killer Series adopt the Killer™ E2200 Intelligent Networking Platform, which is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.
Delivering faster networking performance for time-sensitive UDP (User Datagram Protocol) based applications, such as online games and high quality media streaming.
   * Test results may vary depending on the setup, internet environment and time.
Use Qualcomm Atheros Killer Network Manager to classify and prioritize online games, HD video and high quality audio for better quality and fewer interruptions in your online experience. See which applications are hogging bandwidth and tune performance for each, so they don't interfere with your online gameplay or other streams. Monitor and manage the health and performance of your gaming rig with graphical displays, detailed logging and complete redesigned user interface.

Ultra M.2

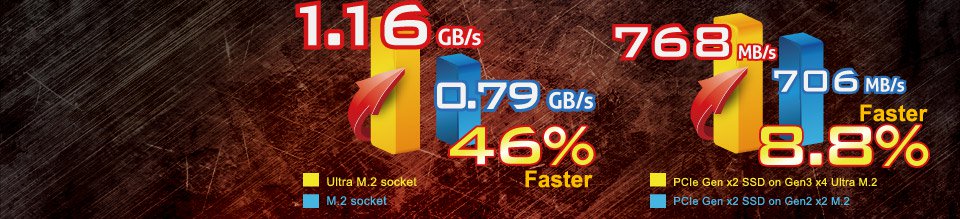

The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s. In addition to support PCIe Gen3 x4 M.2 modules, the Ultra M.2 also supports SATA3 6Gb/s M.2 modules.
Compared to other M.2 design, Ultra M.2 design uses PCIe Gen3 x4 bandwidth from CPU directly which delivers lower latency and higher speed.

Support 5 types of M.2 devices: 30 mm, 42 mm, 60 mm, 80 mm, and 110 mm
Hi-Density Power Connector
Hi-Density Power Connectors can reduce 23% power loss and decrease the power connector's temperature up to 22℃.
Ultra Dual-N MOSFET
Combining with two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
15μ Gold Contact in DIMM Slots
Providing Better Anti-Oxidation Protection
The Next-Gen MOSFET Lower Rds(on) 2.9 mΩ Lower Temperature & Higher Efficiency
15μ Gold Contact in VGA PCIe Slot
Providing Better Anti-Oxidation Protection
PCIe Power Connector
Providing More Juice & Stability for VGA cards
Intel® LAN
Better performance & Lower CPU Utilization.
Qualcomm® Atheros® Killer LAN
Identify and accelerate traffic to your game, Killer LAN delivers fast networking with a new level of online gaming performance.
Purity Sound 2
Including 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier and Nichicon Fine Gold audio caps that reduce noise level significantly and satisfy even the pickiest audiophiles.
XXL Aluminum Alloy Heatsink
The Extra Large Heatsinks Dramatically Take Away Heat & Cool Down MOSFETs, Chipsets
What good is a weapon if you are unable to wield it proficiently? Key Master consists of two major features, Sniper Key and Macro Key. It can enhance your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay, turning your boring old keyboard and mouse into lethal weapons. Key Master may be prohibited by some games. We suggest disabling Key Master if it violates the game's end user license agreement.

Macro Key Tired of those repetitive keystrokes? Create your own set of keyboard hotkeys and macros with Macro Key to save the trouble.
Sniper Key Use Sniper Key to shift the mouse speed when you're in sniper mode, it will greatly sharpen your accuracy.
Mouse Track
  Without Sniper Key With Sniper Key
XSplit Broadcaster is a desktop application designed to make your multimedia broadcasting, live-streaming and recording a lot easier and more fun. XSplit Gamecaster is a simplified version of XSplit Broadcaster. We’re giving XSplit Broadcaster & XSplit Gamecaster 3-month premium license bundle for FREE! A US$ 24.95 value!


Broadcast Platform Broadcast Software Broadcasting!
  * XSplit is provided by SplitmediaLabs, Ltd. Restriction may apply and the offer is subject to change, termination or discontinuation by SplitmediaLabs, Ltd. without prior notice. Please visit the website for further details : http://www.asrock.com/microsite/Fatal1ty/

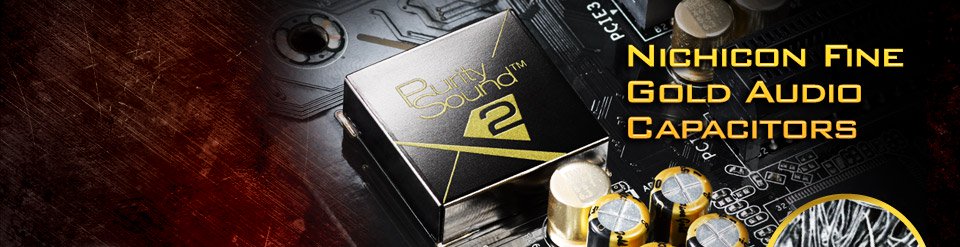

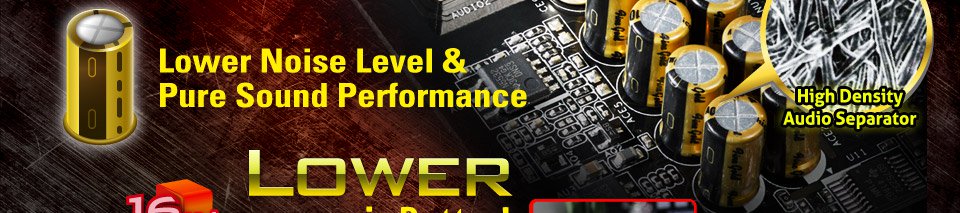

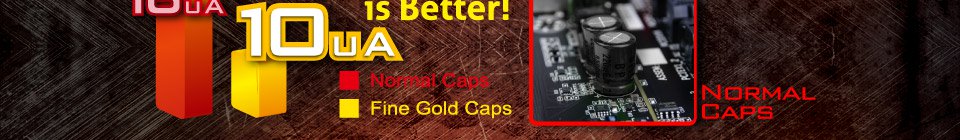

  Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.

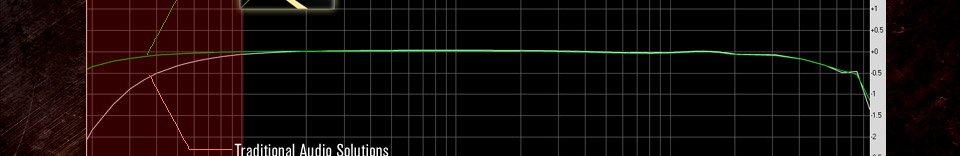

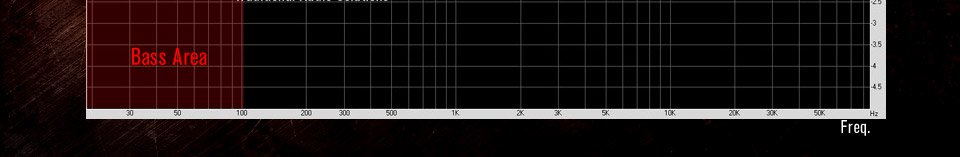

  This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz bass low freq area, Purity Sound™ 2 still maintains its frequency response (0.4dB) and provides better bass with the TI® NE5532 amplifier, improving the bass quality by 20% (1.6dB)!
