About Mini-STX

The Mini Socket Technology Extended (Mini-STX) form factor adds the flexibility to support Intel® LGA 1151 socket-based Intel® processors in the mini PC segment

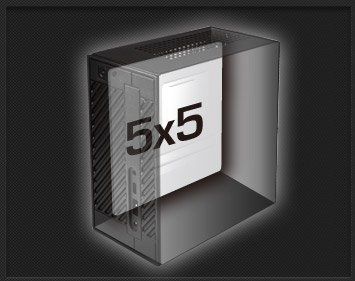

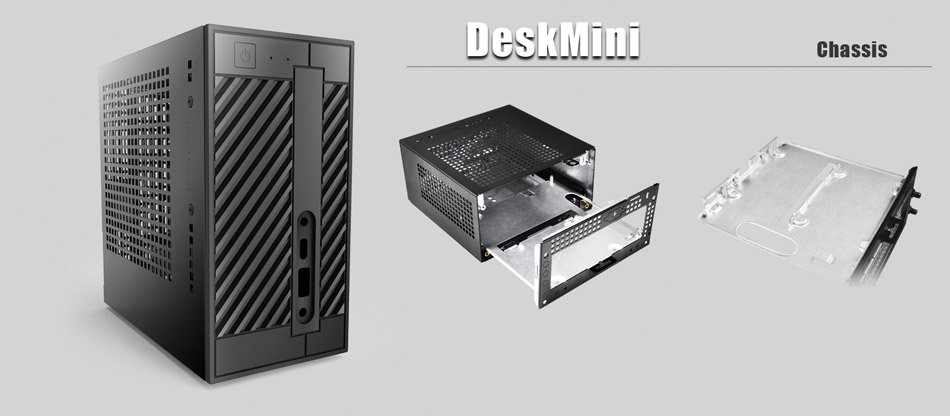

Standard 5x5 Building Block Chassis

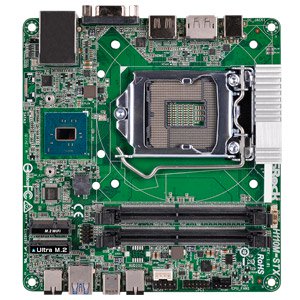

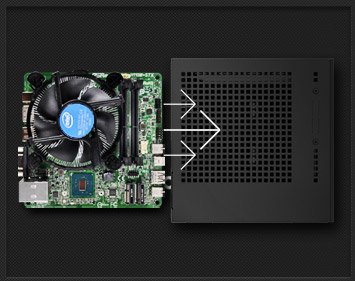

New Mini-STX Form Factor

Unique Features

Smaller Size, Better performance

Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance.

Higher Value, Better performance

Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors.

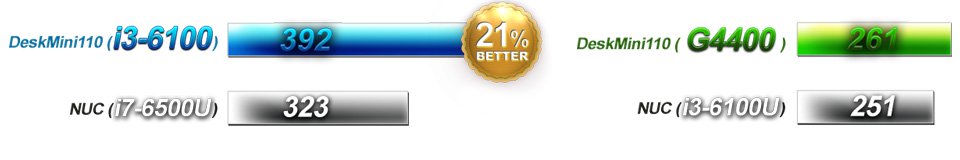

CPU Performance Test(Cinebench R15)

DC-In Adapter

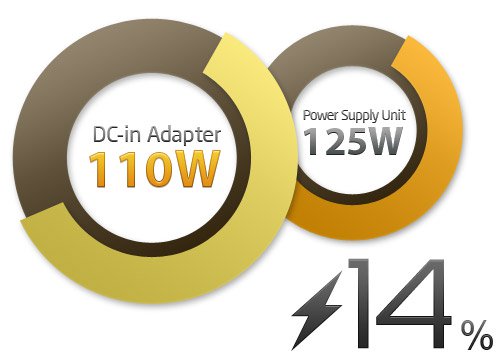

The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design.

Tons of Customization Options

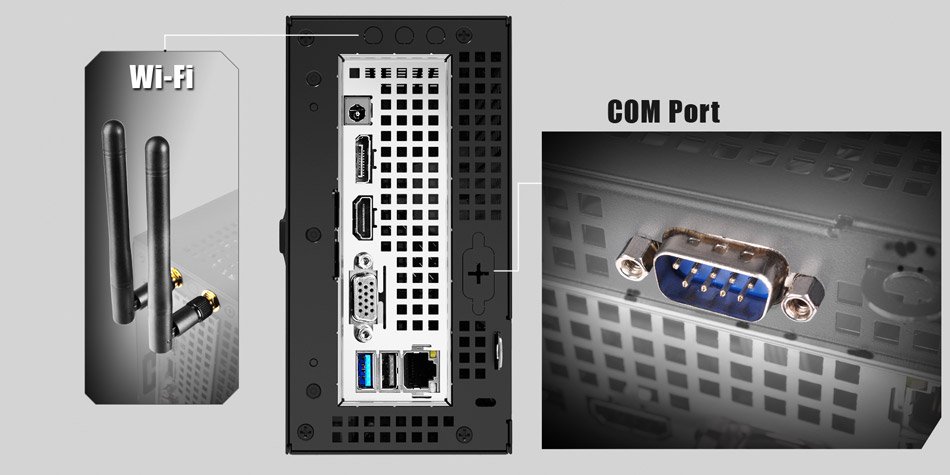

COM port header, TPM 2.0 chip, slim thermal fan or standard Intel box fan. Customize your own mini-STX.

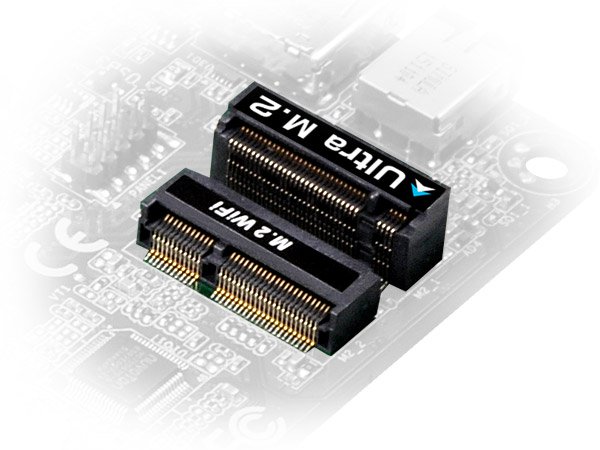

Two M.2 Slots

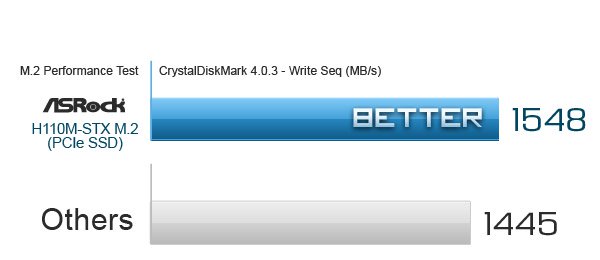

A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs.

* SATA type M.2 module is not supported.

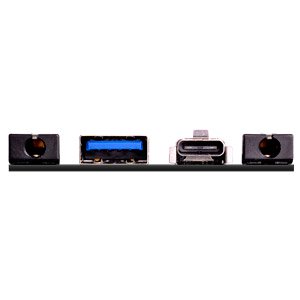

USB 3.0 Type-C

A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.

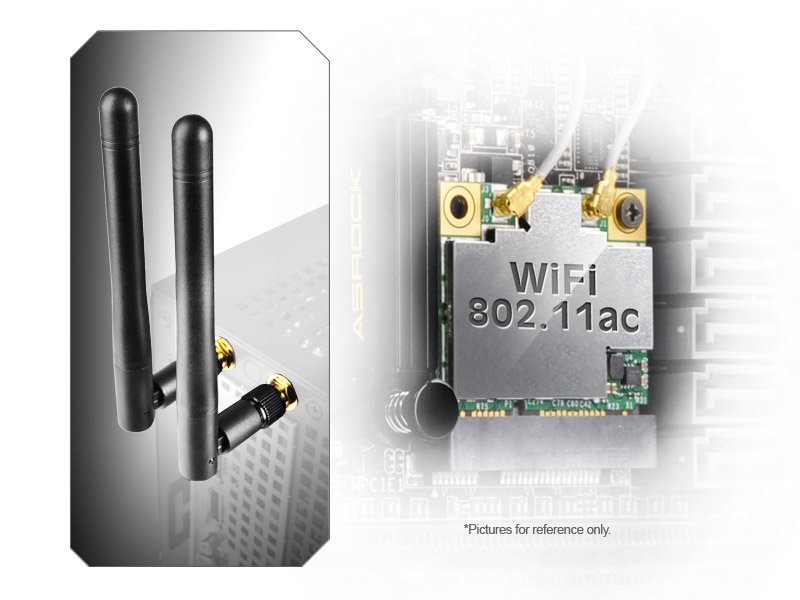

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.

*Available only with DeskMini 110W

Flexible LAN Choice

Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN.

Two SATA3 Headers

There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.

Three Graphics Outputs

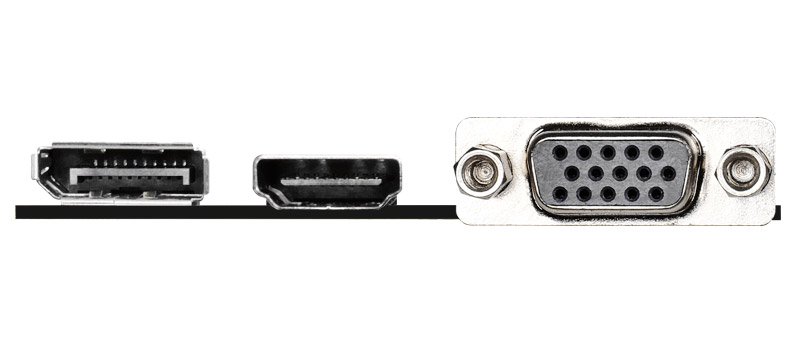

This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.

*Supports up to 2 displays simultaneously

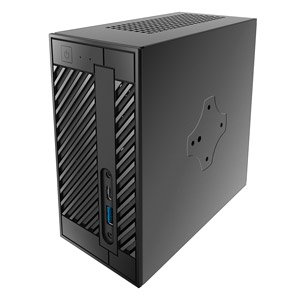

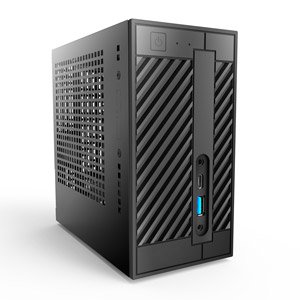

DeskMini

Room for two 2.5" HDDs/SSDs

Space for standard Intel box fans

Customization Options

Note

Photo Gallery



Specifications

DeskMini 110

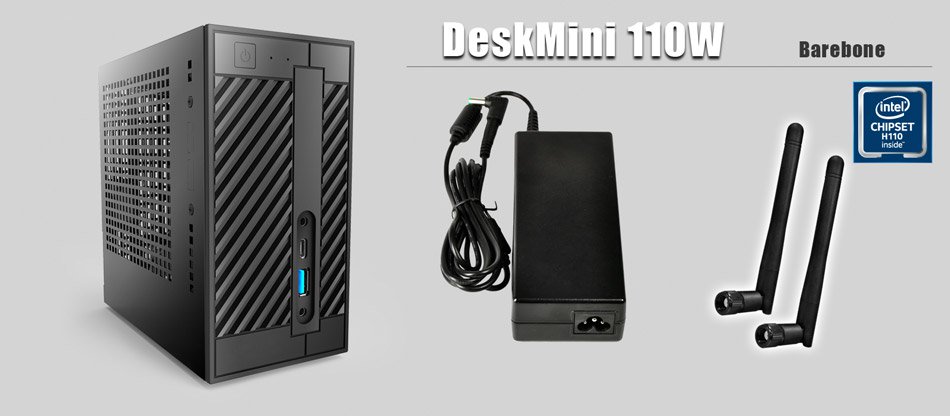

DeskMini 110W

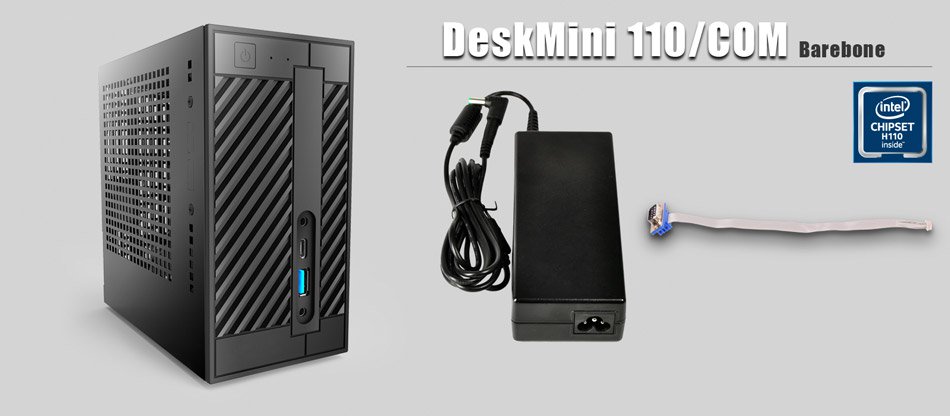

DeskMini 110/COM

Chassis 1.92L (155 x 155 x 80mm)
CPU Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) (Max. TDP 65W)
CPU cooling Supports Standard Intel Box Fan Coolers
Motherboard ASRock H110M-STX (Mini-STX)
Chipset Intel H110
Graphics Intel HD Graphics
Memory Supports DDR4 2400MHz, 2 x SO-DIMM Slots, Max. 32GB
Audio Realtek ALC283
LAN Intel Gigabit I219V LAN
Expansion Slots 1 x M.2 (key E 2230) Slot for WiFi + BT Module,
1 x M.2 SSD Slot (Supports type 2280 M.2 PCIe Gen3 x4)*
* SATA type M.2 module is not supported.

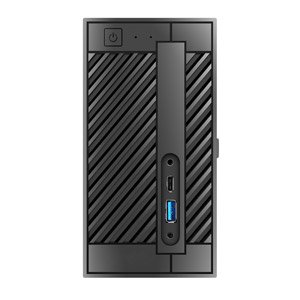

Front I/O Power Button, Power LED & HDD LED
1 x USB 3.0, 1 x USB 3.0 (Type-C),
1 x Headphone with MIC , 1 x MIC-In

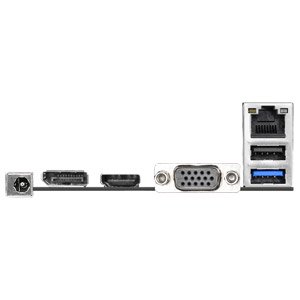

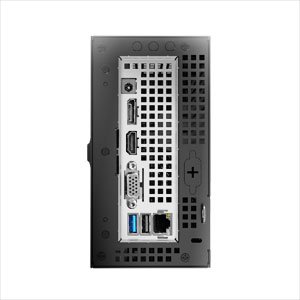

Rear I/O 1 x VGA , 1 x HDMI, 1 x DP, 1 x USB 3.0,
1 x USB 2.0, 1 x LAN, 1 x DC-In Jack
Onboard Connectors 1 x CPU_Fan_1 Connector (4-Pin), 2 x USB 2.0 Headers,
1 x CPU_Fan_2 Connector (5-Pin), 1 x Internal Speaker Header(4-Pin) ,
1 x Front Panel Header
Chassis Intrusion (2-Pin)
Drive Bays Supports 2 x 2.5" HDDs or SSDs
* HDD support type: 2.5" SATA hard drive(7mm & 9.5mm)
Power adapter 120W/19V Power Adapter
Operation temp. 0-35°C
Accessory 1 x CD , 1 x QIG , 1 x 120W Power Adapter , 1 x Power Cord(by region) , 2 x SATA Cables
Remark 1 x Kensington Lock, 1 x Key Lock




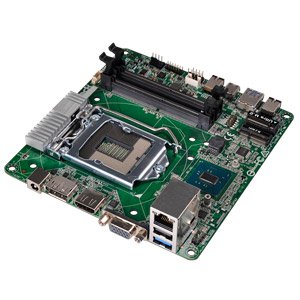

H110M-STX

H110M-STX/COM

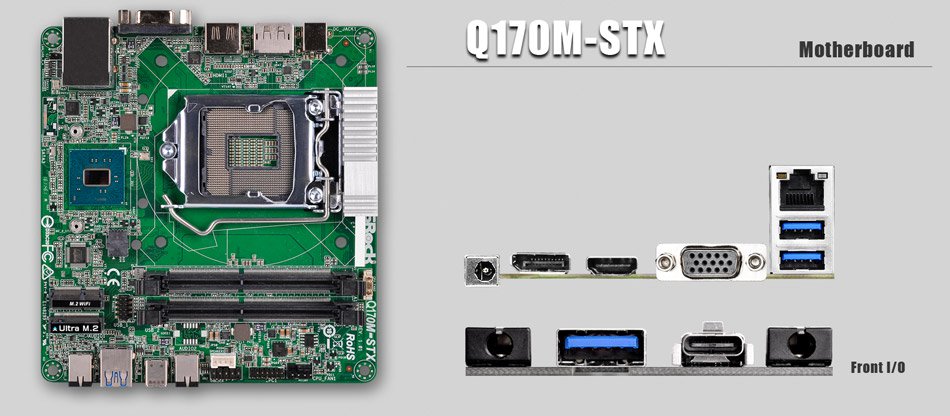

Q170M-STX

Form Factor Mini-STX
CPU Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) (Max. TDP 65W)
Chipset Intel H110
Memory Supports DDR4 2400MHz, 2 x SO-DIMM Slots, Max. 32GB
Graphics Intel HD Graphics
Graphics Outputs 1 x HDMI, 1 x DP, 1 x VGA
Wi-Fi Slot 1 x M.2 (key E 2230) Slot for WiFi + BT Module
Storage 2 x SATA3 with Power connectors, 1 x M.2 SSD Slot
(Supports Type 2280 M.2 PCIe Gen3 x4)*
* SATA type M.2 module is not supported.
Audio 1 x Head Phone with MIC Jack, 1 x MIC-In, (Realtek ALC283 Codec)
USB 1 x USB 2.0 Type-A (Rear), 2 x USB 3.0 Type-A (1*Front, 1*Rear),
1 x USB 3.0 Type-C (Front)
LAN Intel Gigabit I219V LAN (I219LM is Optional)
Onboard Connectors 2 x USB 2.0 Headers 1 x Front Panel Header,
1 x CPU_Fan_1 Connector (4-Pin), 1 x CPU_Fan_2 Connector (5-Pin),
1 x DC-In Jack (Supports 19V 120W Power Adapters),
1 x Internal Speaker Header (4-Pin), 1 x Chassis Intrusion Header (2-Pin)
Remark CPU_Fan_1 Connector (4-Pin) supports Intel Box Fan Coolers
CPU_Fan_2 Connector (5-Pin) supports Intel 1L Thermal Modules
Supports TPM 2.0 (Optional)




Chassis 1.92L (155 x 155 x 80mm)
Color Black
Material Steel Body + Plastic Bezel
MB Form Factor Supports Standard Intel Mini-STX MB
CPU Cooling Supports Standard Intel 65W CPU & Intel Box Fan Cooler
Drive Bays Supports 2 x 2.5" HDD or SSD
* HDD support type: 2.5" SATA hard drive(7mm & 9.5mm)
Front I/O Power Button, Power LED & HDD LED, 1 x Space for Head
Phone / MIC, Jack, 1 x Space for MIC Jack, 1 x Space for USB
Connector (Type-A), 1 x Space for USB Connector (Type-C)
Rear I/O Supports Standard Mini-STX I/O Rear Plate
Remarks 1 x Kensington Lock, 1 x Key Lock

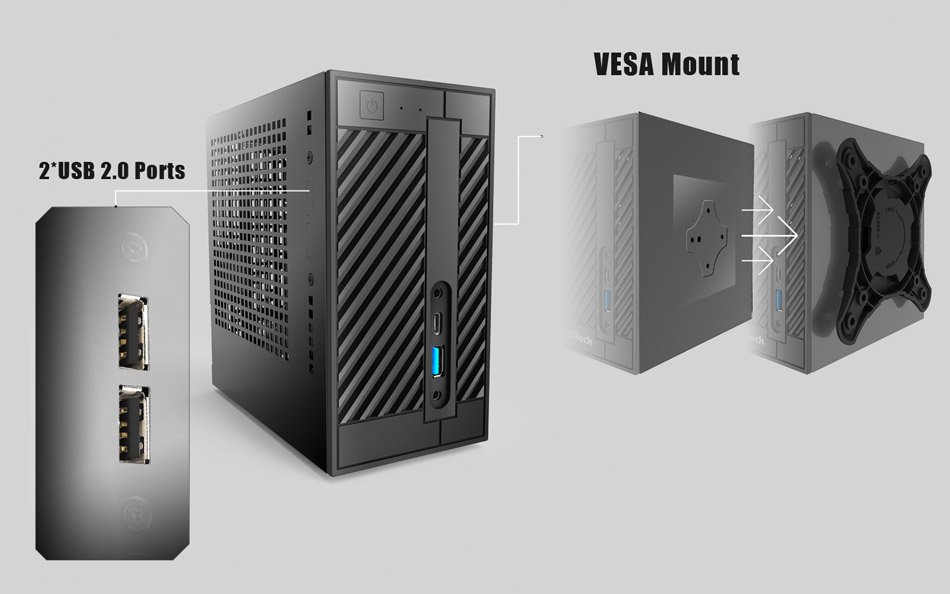

*Optional: 3 x External Antennas, 2 x USB Side Ports, 1 x COM Port , Chassis Intrusion, VESA Mount
