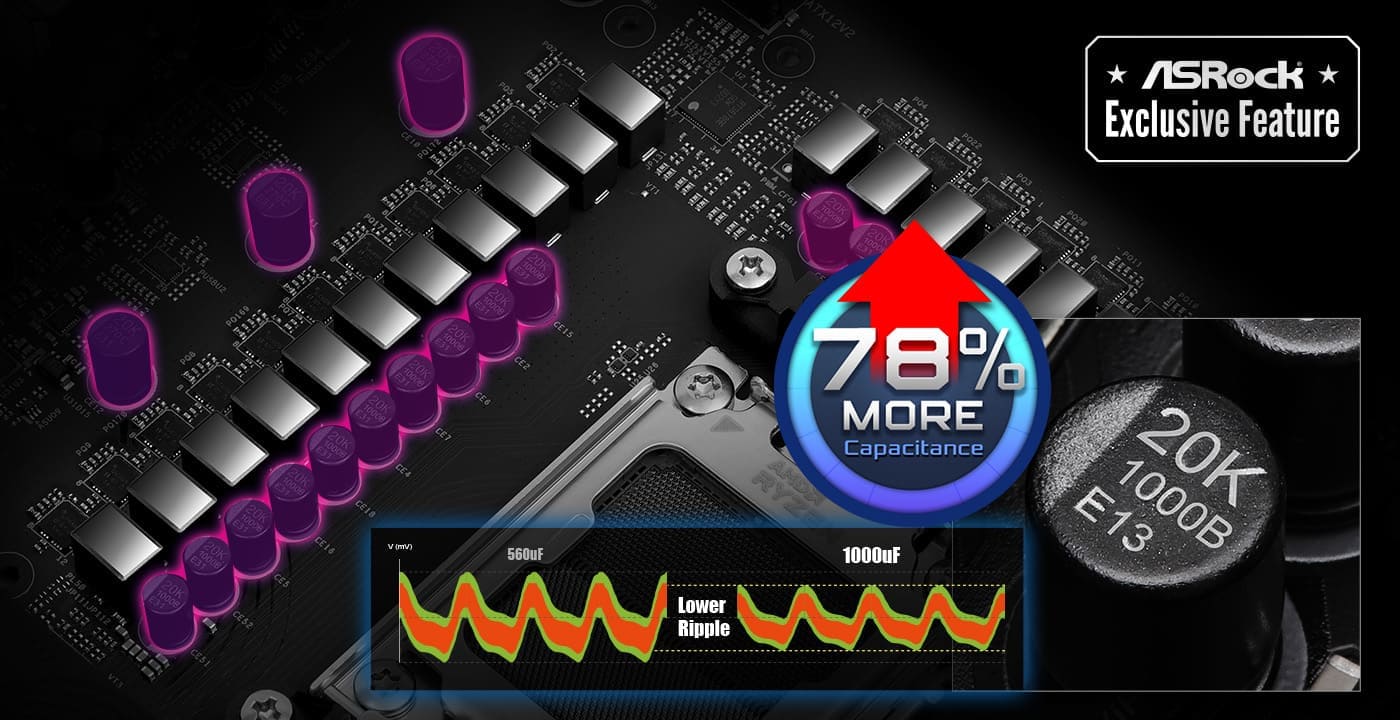

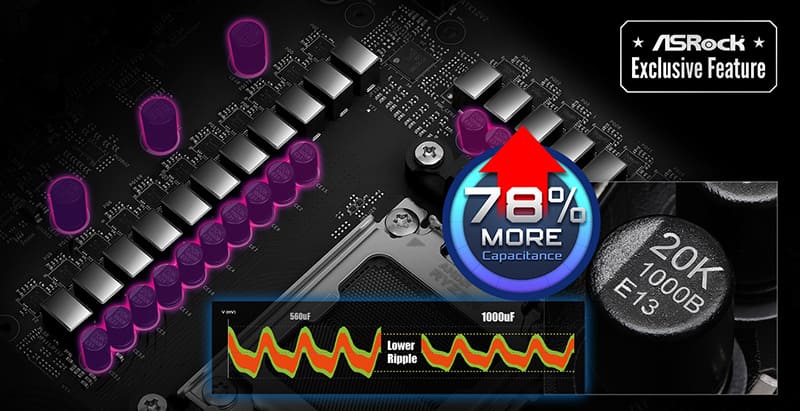

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:
● Higher Capacitance: Greater charge storage for better support under high loads.
● Lower Ripple: Reduced power output fluctuations, improving quality.
● More Stable Output Current: Stable power supply, minimizing voltage impacts.
● Better Performance & System Stability: Increased reliability and consistent performance.
Exclusive 20K Cap with 1000uF Capacitance

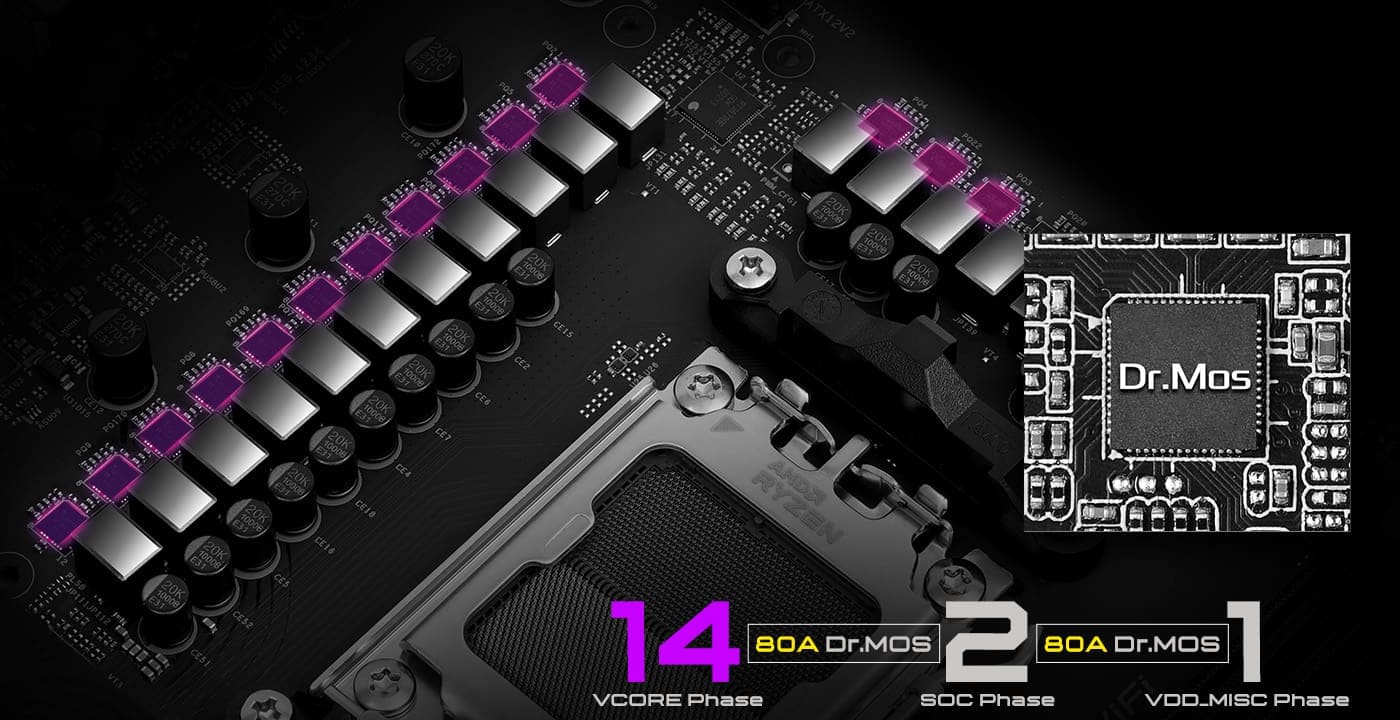

14+2+1 Power Phase Design, 80A Dr.MOS
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

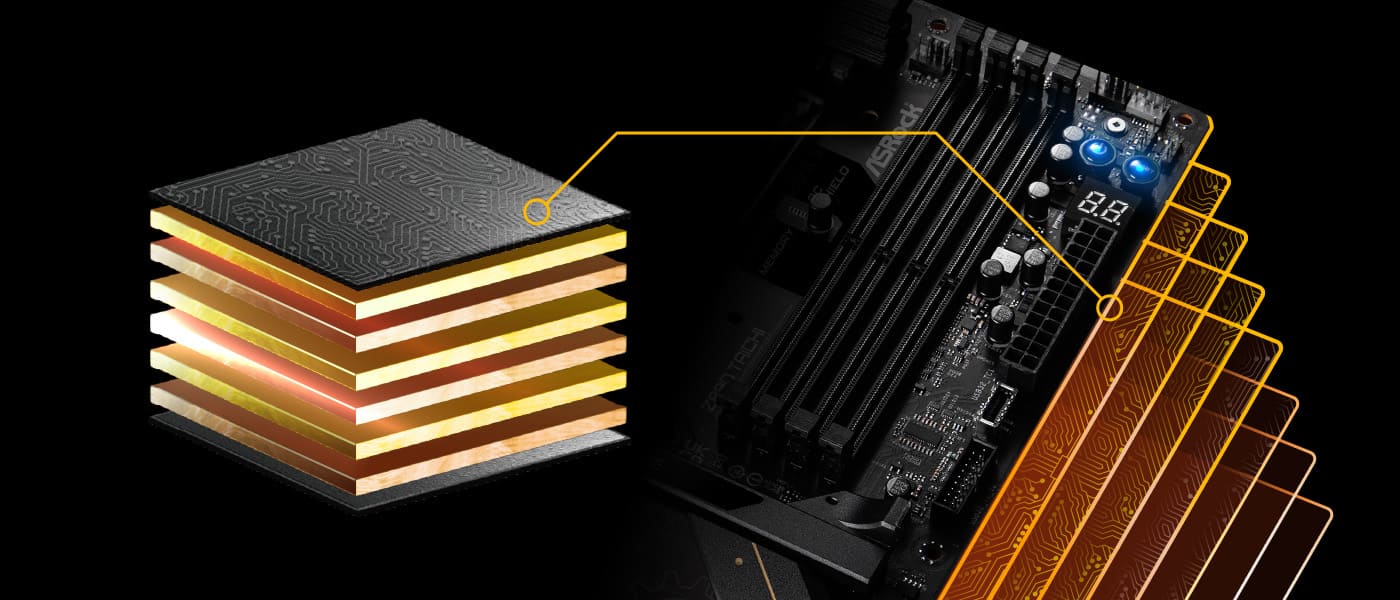

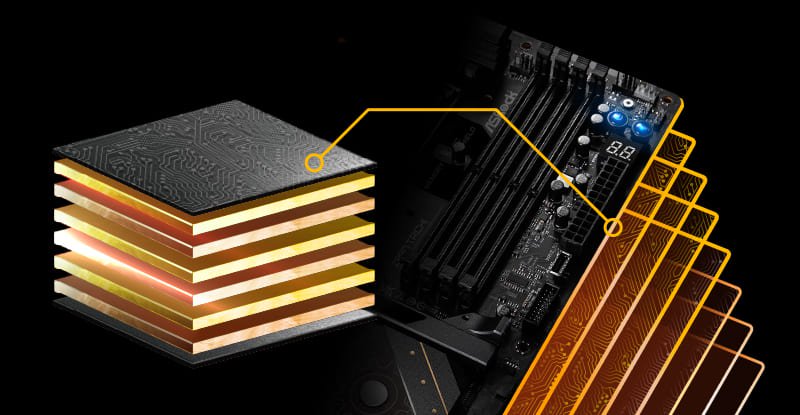

8-Layer PCB Design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

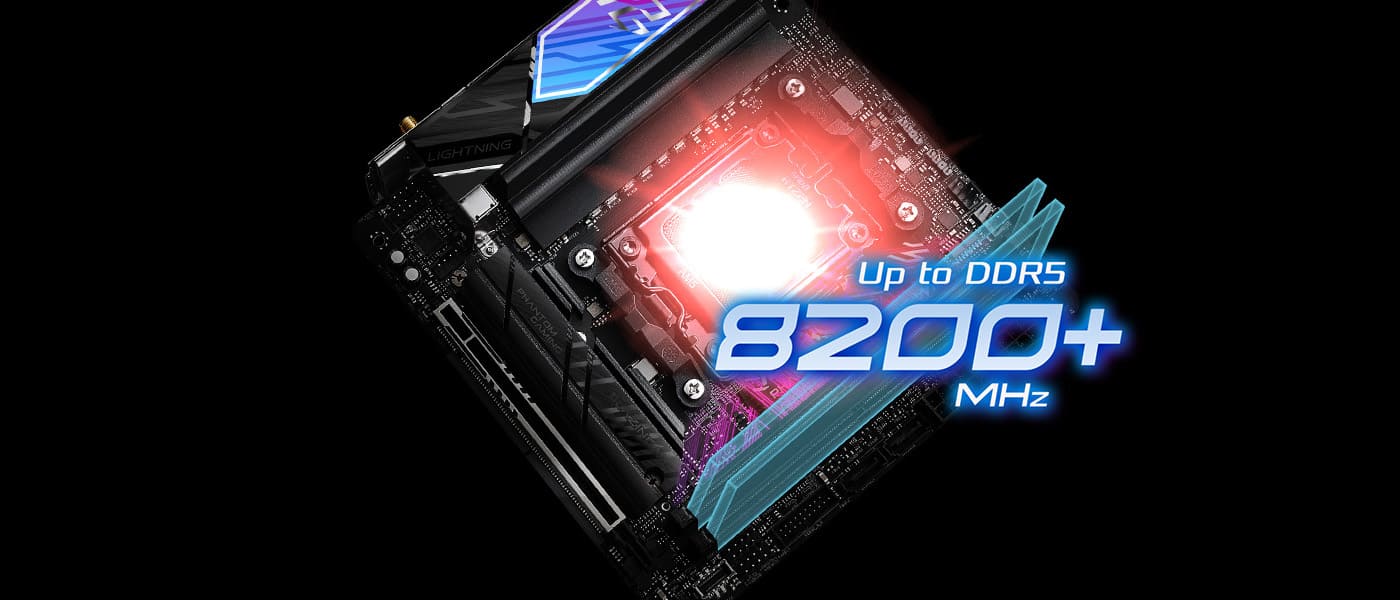

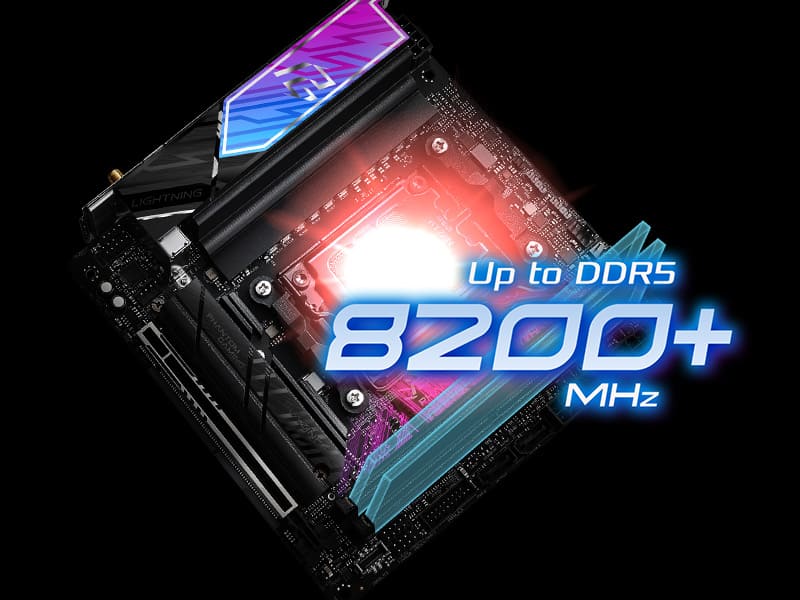

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

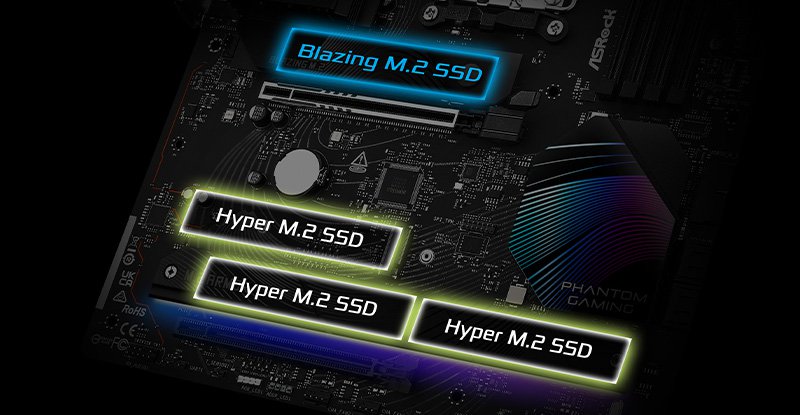

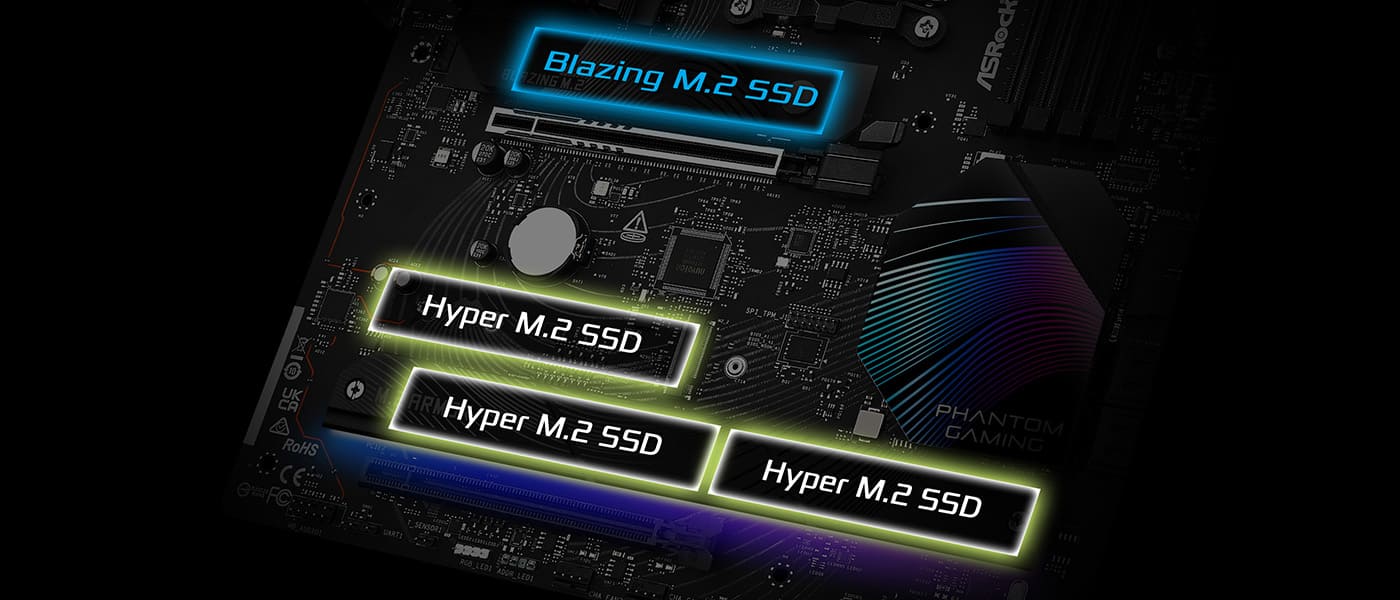

High Speed M.2 Solution
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

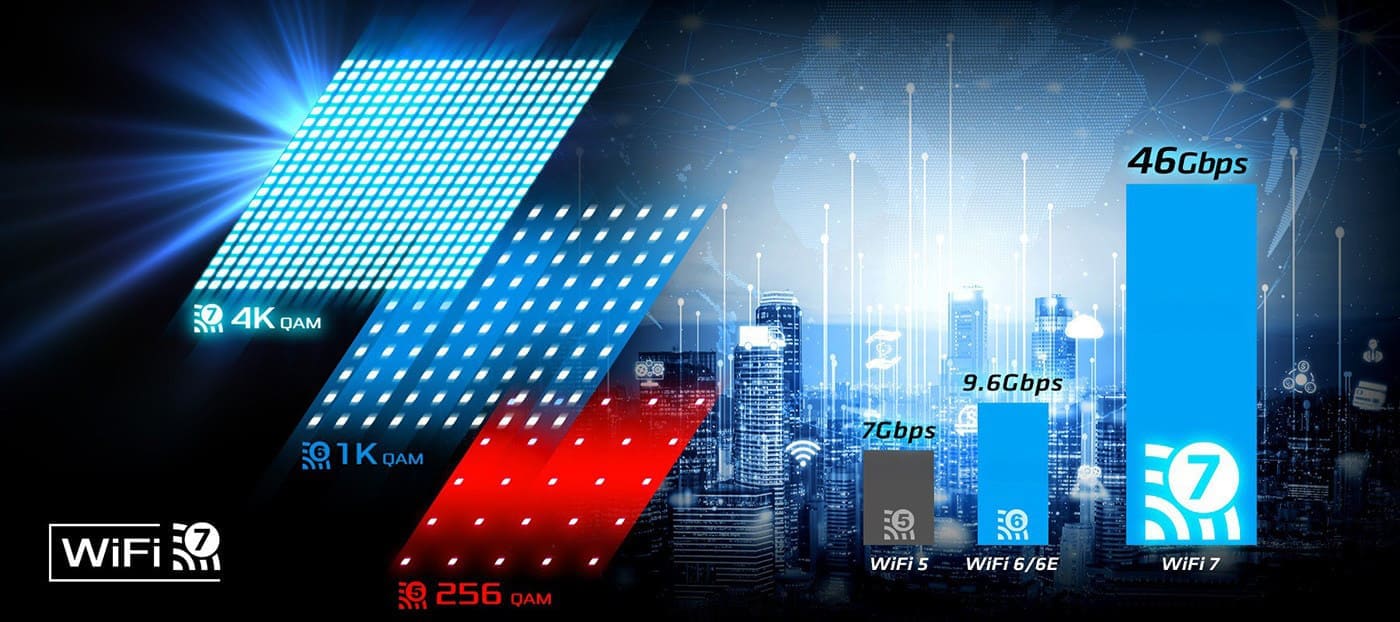

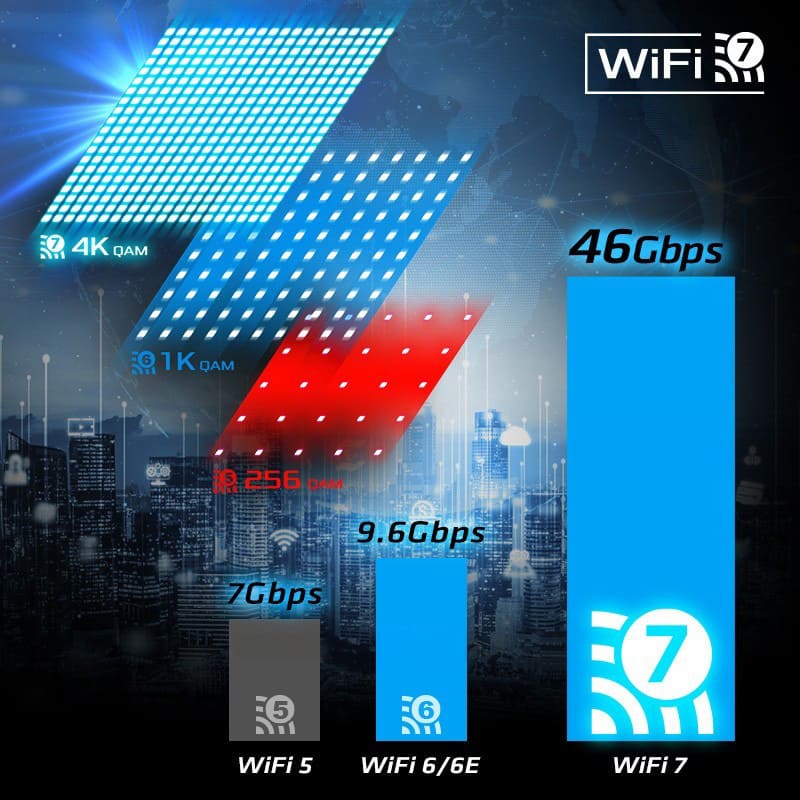

802.11be Wi-Fi 7
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Killer™ Ethernet E3100
The Killer E3100 2.5 Gbps Ethernet controller is designed specially for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

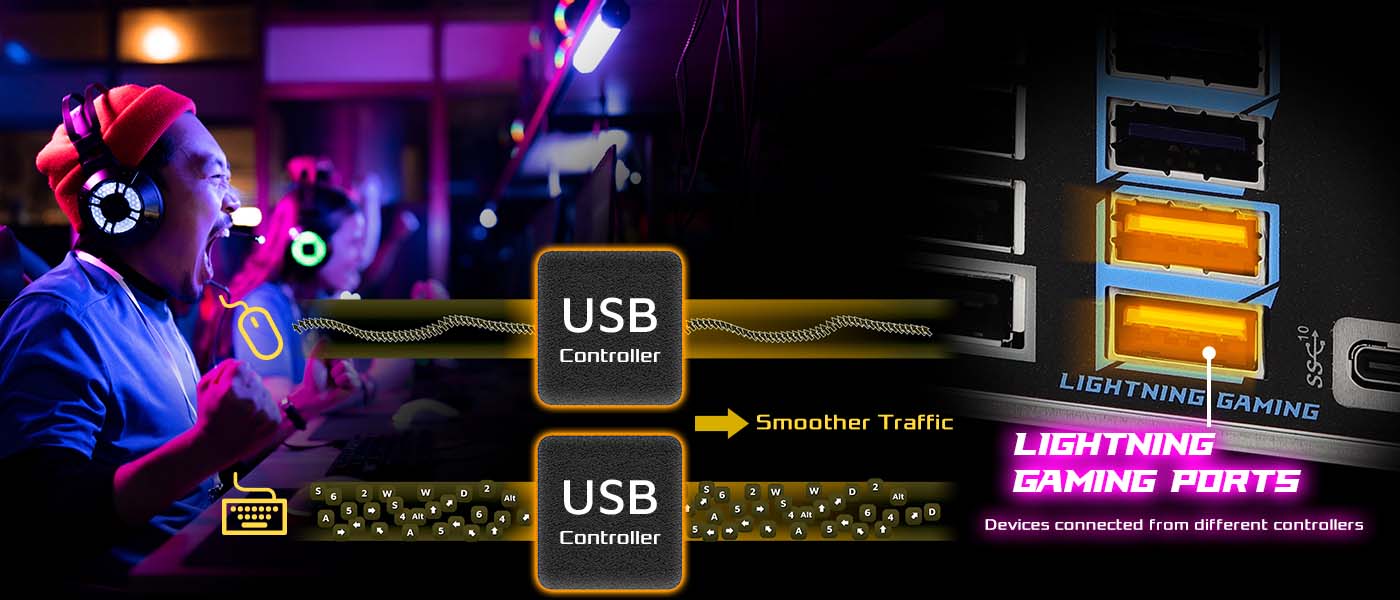

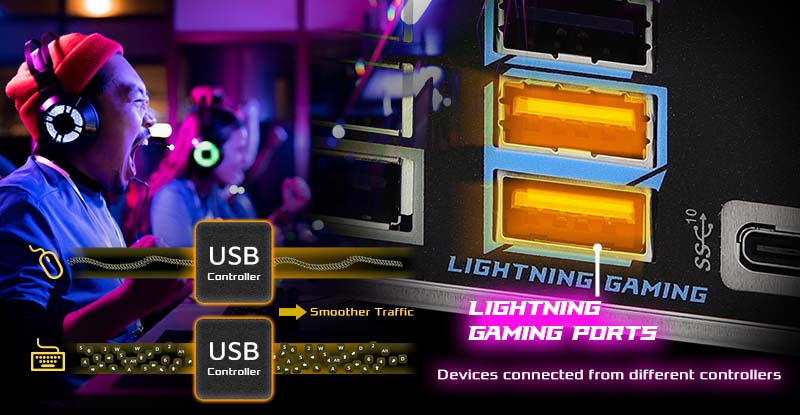

Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

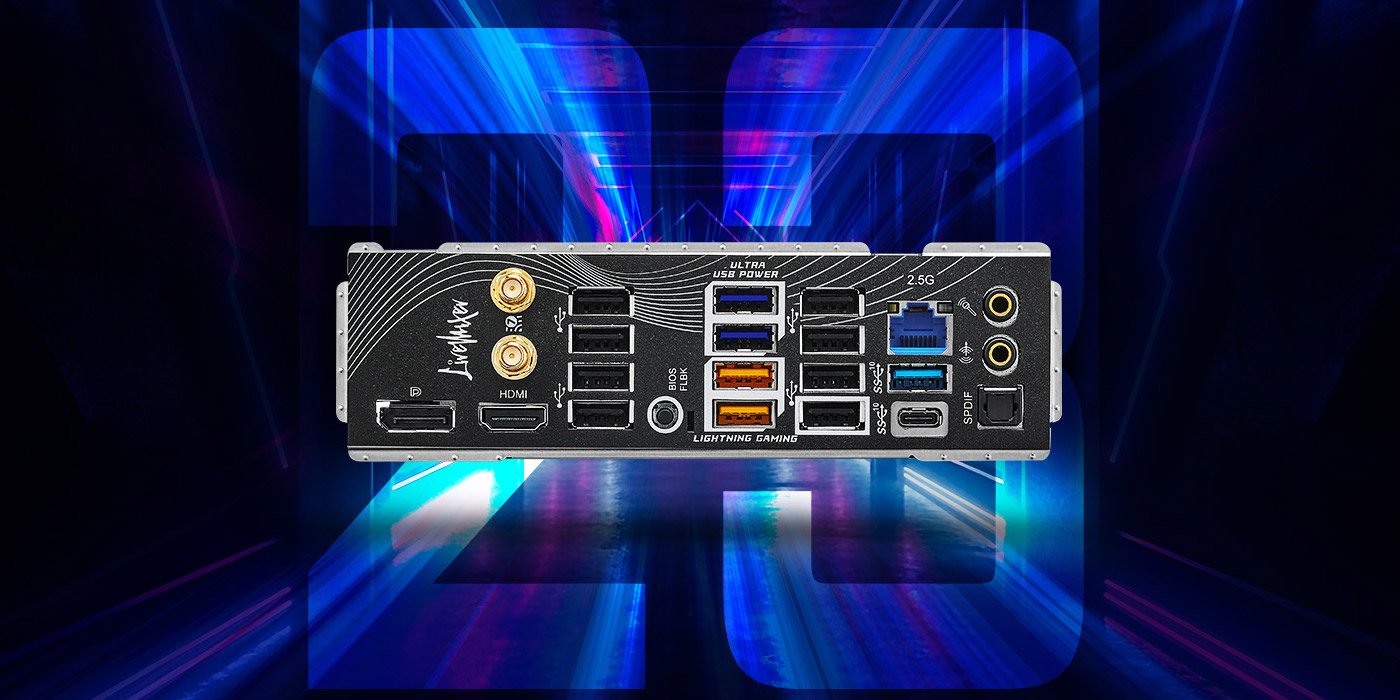

Up to USB 23 Ports (Front + Rear)
Featuring 23 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs.

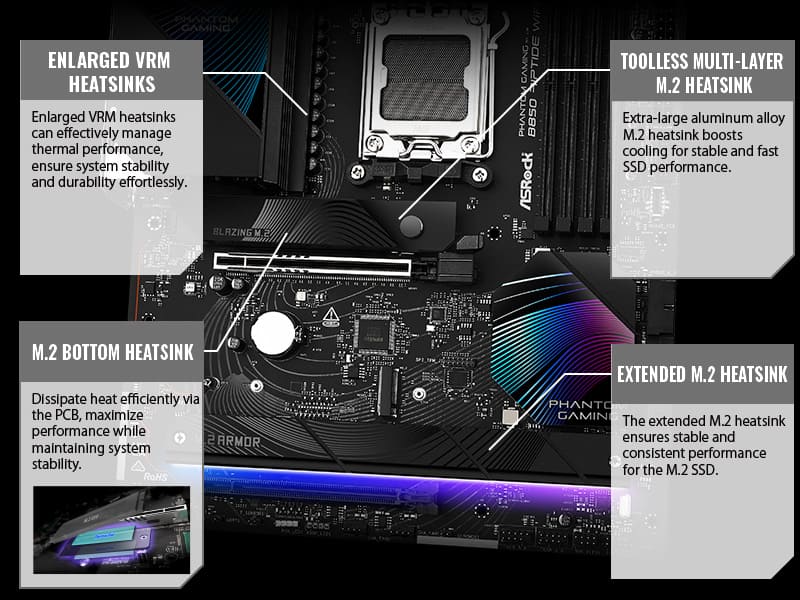

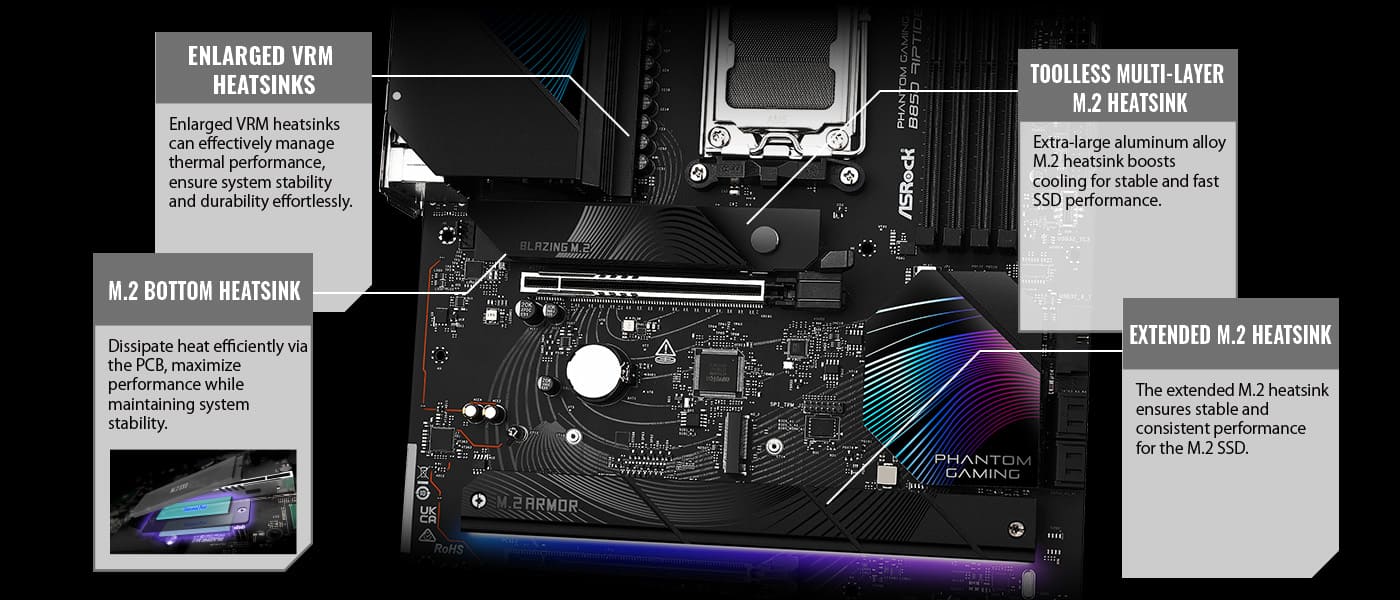

Optimal Cooling Solution
Designed for stability and performance, this motherboard is equipped with multiple enlarged heatsinks, ensuring efficient heat dissipation and maintaining an excellent cooling performance under heavy workloads.
Graphics Card Lite Release Design
Equipped with an enlarged latch for easy pressing, simplifying both the installation and removal of graphics cards.
M.2 Heatsink Toolless Design
M.2 Heatsink Toolless Design
Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
M.2 Bottom Heatsink
M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
BIOS Flashback
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
*Features may vary by model.
New B850 Series Motherboards
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Outputs: 1 HDMI
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
7 USB 3.2 Gen1 (3 Rear, 4 Front) - Killer 2.5G LAN, 802.11be Wi-Fi 7
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Outputs: 1 HDMI
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
7 USB 3.2 Gen1 (3 Rear, 4 Front) - 2.5G LAN, 802.11be Wi-Fi 7
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A+C (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - 2.5G LAN, 802.11be Wi-Fi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Outputs: 1 HDMI, 1 USB Type-C (DP-alt)
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Rear)(DP-alt Mode)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - 2.5G LAN, 802.11axe Wi-Fi 6E
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Supports M.2 Bottom Heatsink
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
- Graphics Outputs: 1 HDMI, 1 USB Type-C (DP-alt)
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Rear) (DP-alt Mode)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - 2.5G LAN
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Supports M.2 Bottom Heatsink
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Outputs: 1 HDMI, 1 USB Type-C (DP-alt)
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Rear) (DP-alt Mode)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - 2.5G LAN, 802.11axe Wi-Fi 6E
- Realtek ALC897 7.1 CH HD Audio Codec
- Supports M.2 Bottom Heatsink
- ATX
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
- Graphics Outputs: 1 HDMI, 1 USB Type-C (DP-alt)
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Rear) (DP-alt Mode)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - 2.5G LAN
- Realtek ALC897 7.1 CH HD Audio Codec
- Supports M.2 Bottom Heatsink
- Micro ATX
- 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen4x2) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN, 802.11be Wi-Fi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Supports Lite Release Design
- Micro ATX
- 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen4x2) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN, 802.11be Wi-Fi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Supports Lite Release Design
- Micro ATX
- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN, 802.11axe Wi-Fi 6E
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Supports M.2 Bottom Heatsink
- Micro ATX
- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Supports M.2 Bottom Heatsink
- Micro ATX
- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN, 802.11axe Wi-Fi 6E
- Realtek ALC897 7.1 CH HD Audio Codec
- Supports M.2 Bottom Heatsink
- Micro ATX
- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN
- Realtek ALC897 7.1 CH HD Audio Codec
- Supports M.2 Bottom Heatsink
- Micro ATX
- 6+1+1 Phase Power Design, Dr.MOS for VCore
- 2 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 USB 3.2 Gen1 (3 Rear, 2 Front) - 2.5G LAN, 802.11axe Wi-Fi 6E
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Micro ATX
- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
- Graphics Outputs: 1 HDMI, 1 DisplayPort
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5G LAN
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Mini-ITX
- 10+1+1 Phase Power Design, 110A SPS for VCore
- 2 x DDR5 DIMMs
- 1 PCIe 5.0 x16
- Graphics Outputs: 1 HDMI, 1 USB Type-C (DP-Alt)
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2 Type-C (Rear)(DP-alt Mode)
2 USB 3.2 Gen2 Type-A (Rear)
1 USB 3.2 Gen1 Type-C (Front)
3 USB 3.2 Gen1 (1 Rear, 2 Front) - Killer 2.5G LAN, 802.11axe Wi-Fi 6E
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
B850 Riptide WiFi
B850 Steel Legend WiFi
B850 LiveMixer WiFi
B850 Pro RS WiFi
B850 Pro RS
B850 Pro-A WiFi
B850 Pro-A
B850M Riptide WiFi
B850M Steel Legend WiFi
B850M Pro RS WiFi
B850M Pro RS
B850M Pro-A WiFi
B850M Pro-A
B850M-X WiFi
B850M-X
