939CPU Board

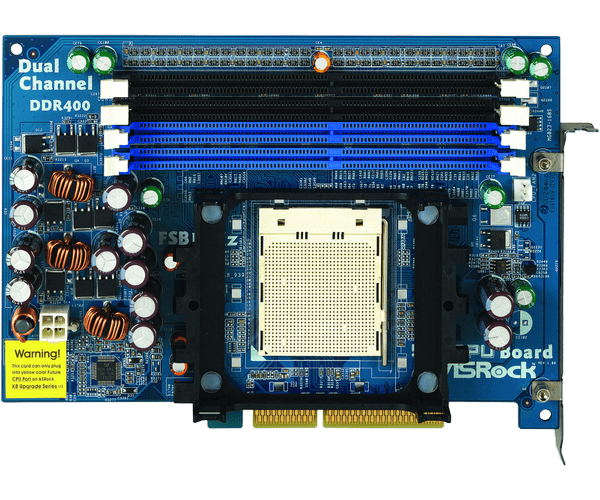

The 939CPU Board is an CPU upgrade module for ASRock K8Upgrade series motherboard. The 939CPU Board contains socket939, Dual Channel DDR DIMMs, and independent power input, which provides a quick upgrade capability from socket754 to socket939 CPU.

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Support Motherboard
K8Upgrade-760GX, K8Upgrade-1689, K8Upgrade-VM800, K8Upgrade-PCIE, K8Upgrade-NF3
Support Interface
- Support Yellow-colored ASRock Future CPU Port*
- 124pin gold-finger connector
- 3-phase power interface

*The 939CPU Board with the yellow-colored indication label is designed for the K8Upgrade Series motherboard with the yellow-colored Future CPU Port.
CPU Socket
- Socket 939 for AMD 64-bit Athlon 64 / Athlon 64FX processors*
- Supports Hyper Transport Technology
- Supports AMD Cool‘n’Quiet™ Technology

*939CPU Board offers an upgrade path from 754 pin to 939 pin CPU, however, the actual FSB speed may vary in terms of motherboard chipset specification.
Onboard Chip
- n/a
Memory Slot
- Supports Dual Channel Technology
- DIMM slots: 4
- Max. capacity: 4GB
Connector
- CPU FAN connector
- 4 pin +12V ATX power connector
Form Factor
- 198mm x 140mm
