754Bridge

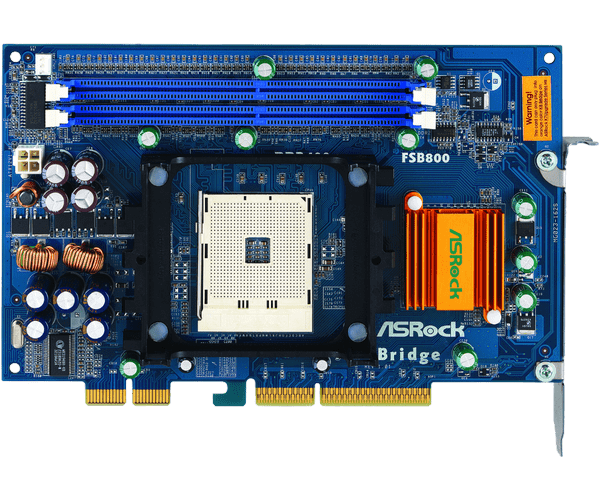

The 754Bridge card is an CPU upgrade module for ASRock K7Upgrade series motherboard. The 754Bridge card contains socket754, DDR DIMMs, VIA K8T800 chipset, and independent power input, which provides a quick upgrade capability from socketA(462) CPU to socket754 CPU.

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Support Motherboard
K7Upgrade-600, K7Upgrade-880
Support Interface
- Support Orange-colored ASRock K8 Bridge Port*
- 124pin+46pin gold-finger connector

*The 754Bridge card with the orange-colored indication label is designed for the K7Upgrade Series motherboard with the orange-colored K8 Bridge Port.
CPU Socket
- Socket 754 for AMD 32-bit Sempron™ and 64-bit Athlon64 processors
- FSB 1.6GT/s
- Supports HyperTransport Technology
Onboard Chip
- Northbridge: VIA K8T800 (Capable Of Supporting FSB800MHz / 1.6GT/s CPU)
Memory Slot
- Supports DDR400/333/266
- DIMM slots: 2
- Max. capacity: 2GB
Connector
- CPU FAN connector
- 4 pin +12V ATX power connector
Form Factor
- 216mm x 140mm
