• Unique Feature
  ASRock Super Alloy
  - Premium 50A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports 10^th Gen Intel^® Core™ Processors (Socket 1200)
  - Digi Power design
  - 7 Power Phase design
  - Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  - Intel^® H410
• Memory
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB**
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots



  *Please refer to Memory Support List on ASRock's website for more information.
  Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, GT, DRAM, VCCSA, PCH, VCCST Voltage Multi-adjustment
• Graphics
  - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel^® SGX Content Protection, UHD Blu-ray Disc
  - Three graphics output options: D-Sub, DVI-D and HDMI***
  - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port



  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.

  ***Supports up to 2 displays simultaneously
• Audio
  - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  - Supports Surge Protection
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111GN
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 3.0 x16 Slot*
  - 2 x PCI Express 3.0 x1 Slots
  - 1 x PCI Slot



  *Supports NVMe SSD as boot disks
• Storage
  - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*

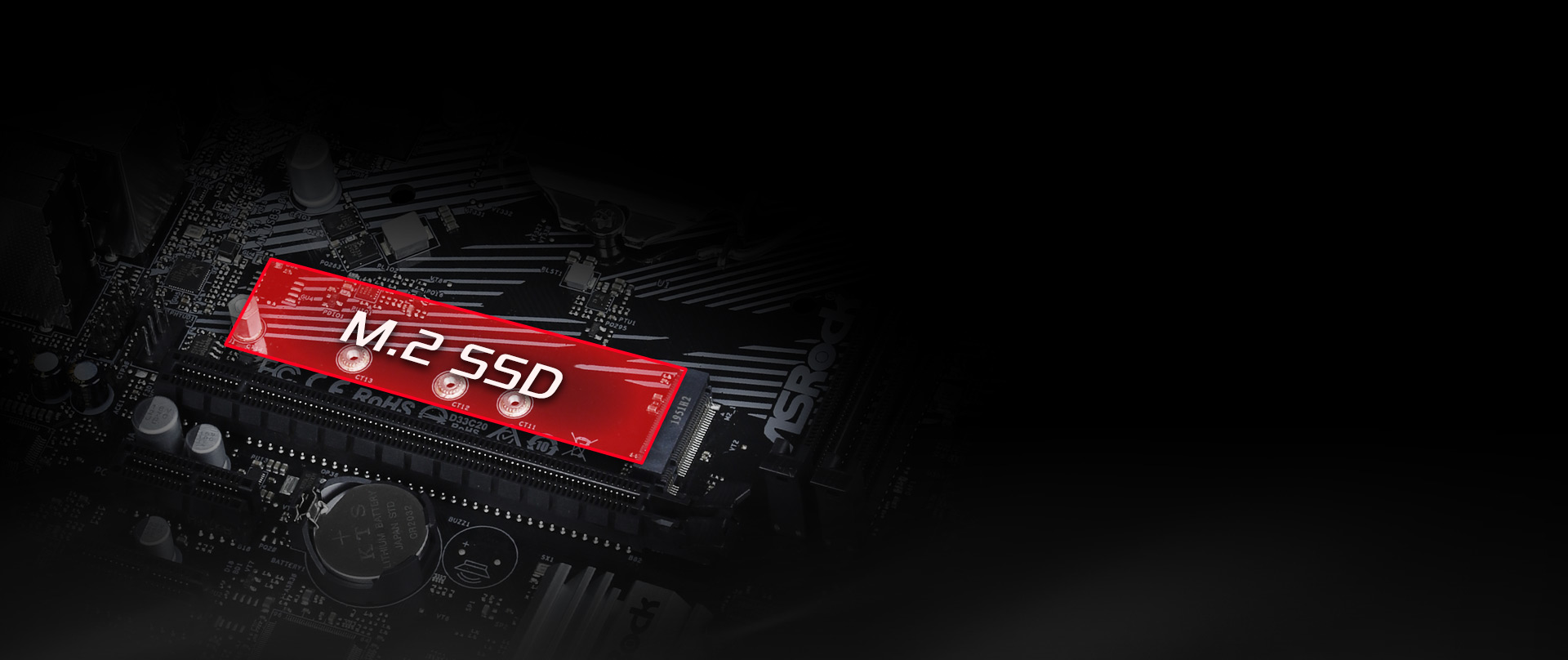

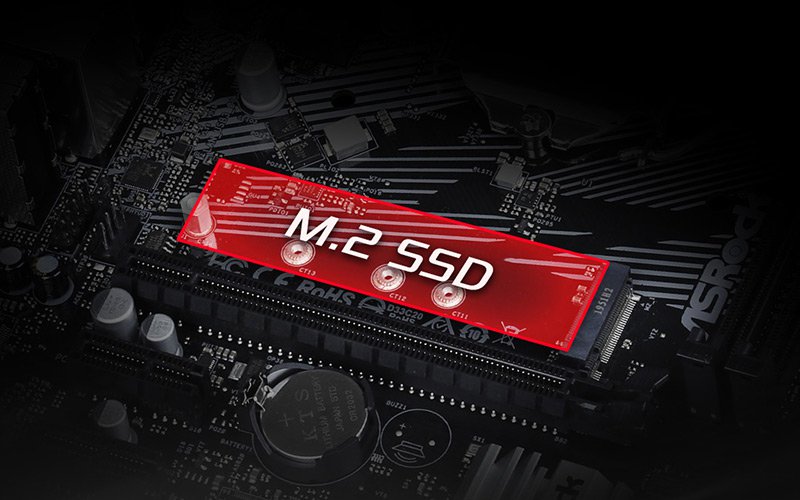

  - 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**



  *If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

  **Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  - 1 x Print Port Header
  - 1 x COM Port Header
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis Fan Connector (4-pin)**
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)



  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

  ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x Serial Port: COM1
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 1 x Screw for M.2 Socket
• Hardware Monitor
  - Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
  - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
  - CASE OPEN detection
  - CPU Core, DRAM, PCH, VCCSA Voltage Multi-adjustment
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 7.4-in, 24.4 cm x 18.8 cm
  - Solid Capacitor design
• OS
  - Microsoft Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
