Built for Extreme Overclocking

Z890 Taichi OCF is the pinnacle of ASRock’s commitment to extreme overclocking. Engineered to meet the demands of professional overclockers, this motherboard delivers unparalleled precision, overclocking capability, and performance. As part of the Taichi family, it sets a new standard for those who push their systems to the limit.

A New Era of Taichi

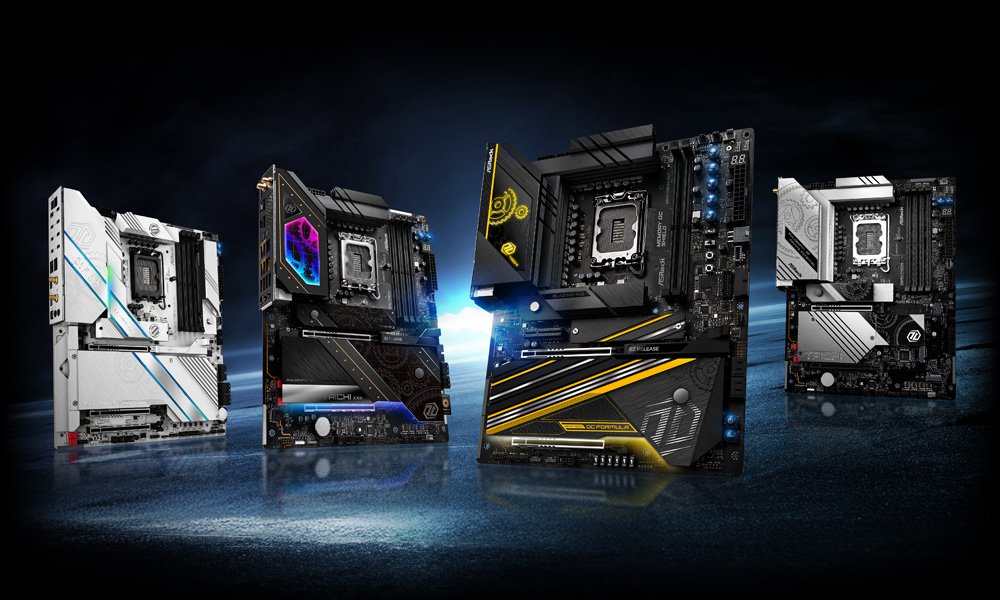

ASRock's flagship motherboard lineup is undergoing a major overhaul, unifying water cooling, extreme overclocking, and all-around flagship models into a powerful Taichi family.

This expansion incorporates the highly acclaimed OCF series water-cooling motherboards and OC Formula series overclocking motherboards, resulting in the Taichi OCF for custom water cooling, Taichi OCF for extreme overclocking, and the all-around flagship Taichi/Taichi Lite.

This transformation refines product positioning, centralizing ASRock's flagship offerings under the Taichi brand to meet the diverse needs of high-end PC enthusiasts. This strategic combination enhances the brand's impact, delivering exponential synergy and reinforcing its status as a premier flagship motherboard brand.

Unleashing Extreme Performance

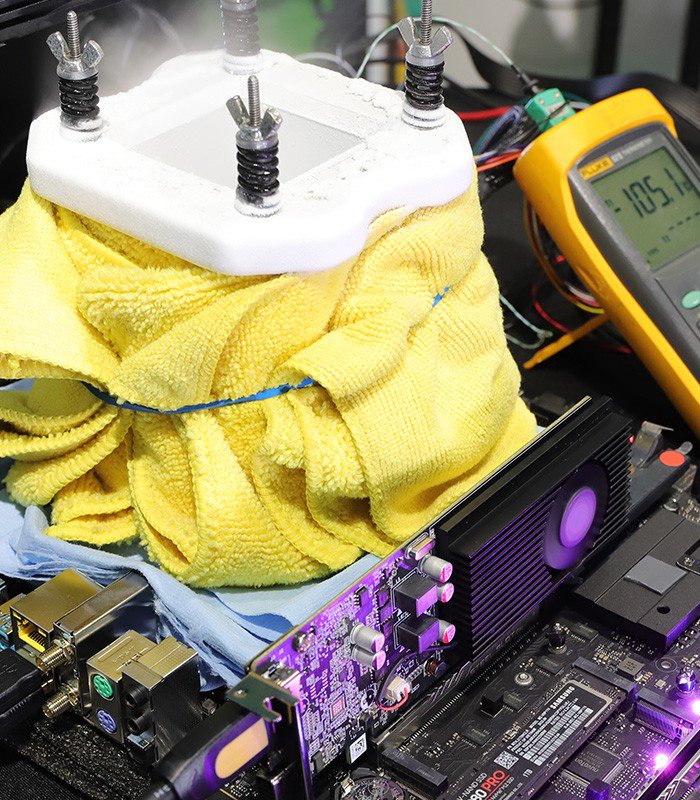

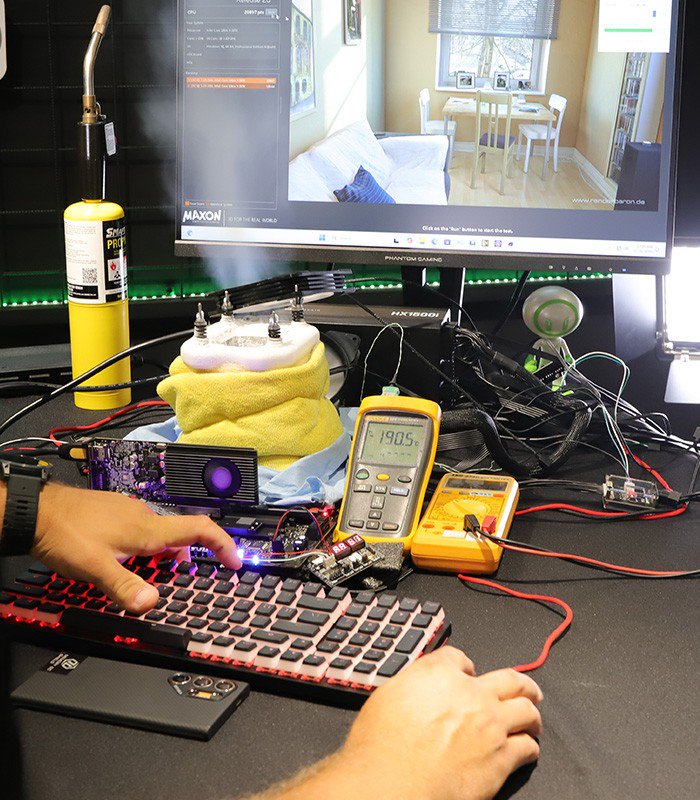

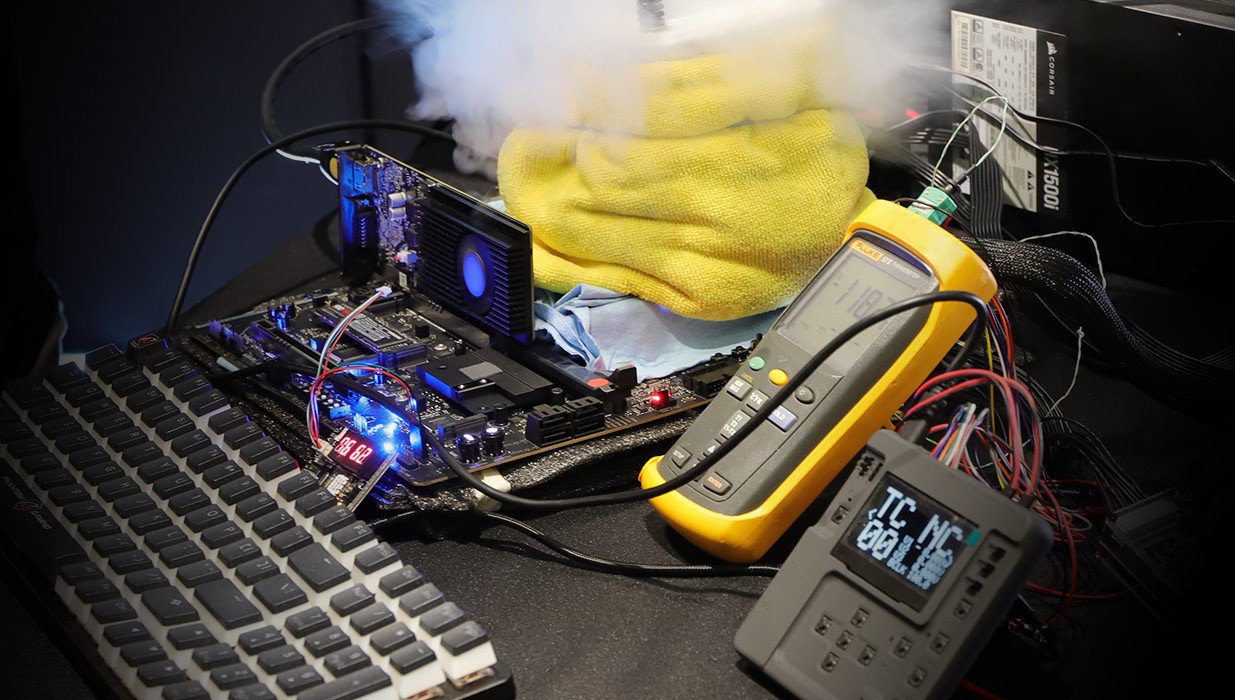

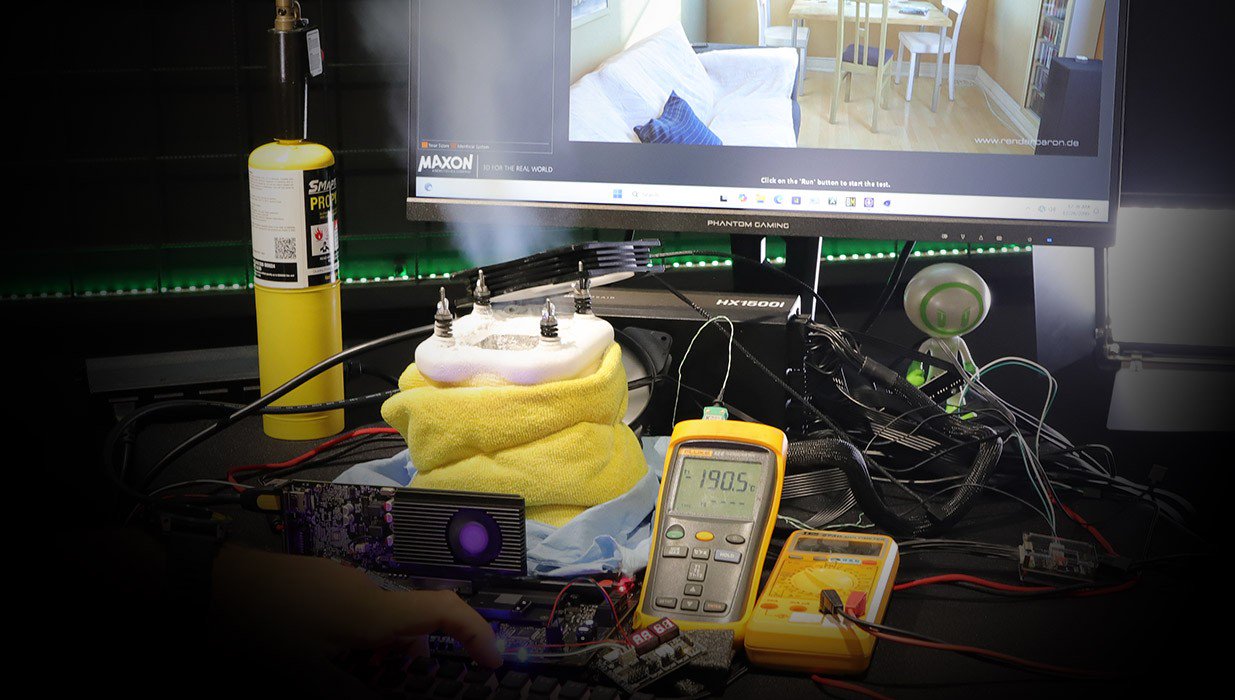

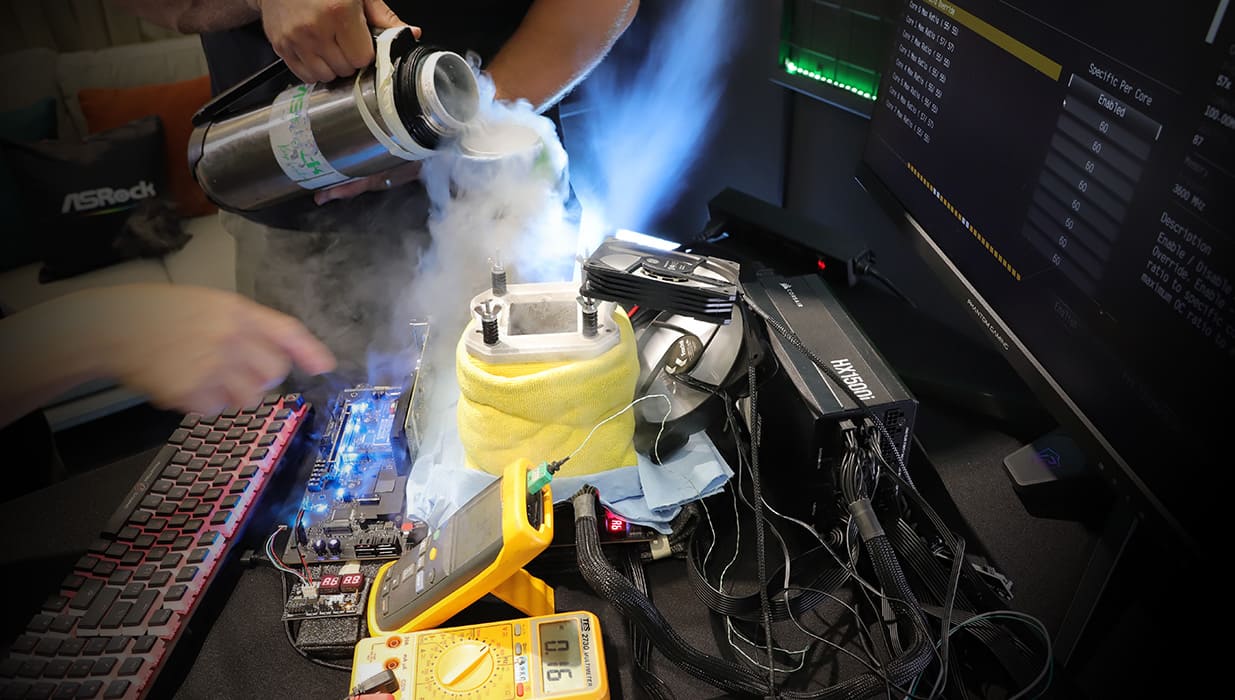

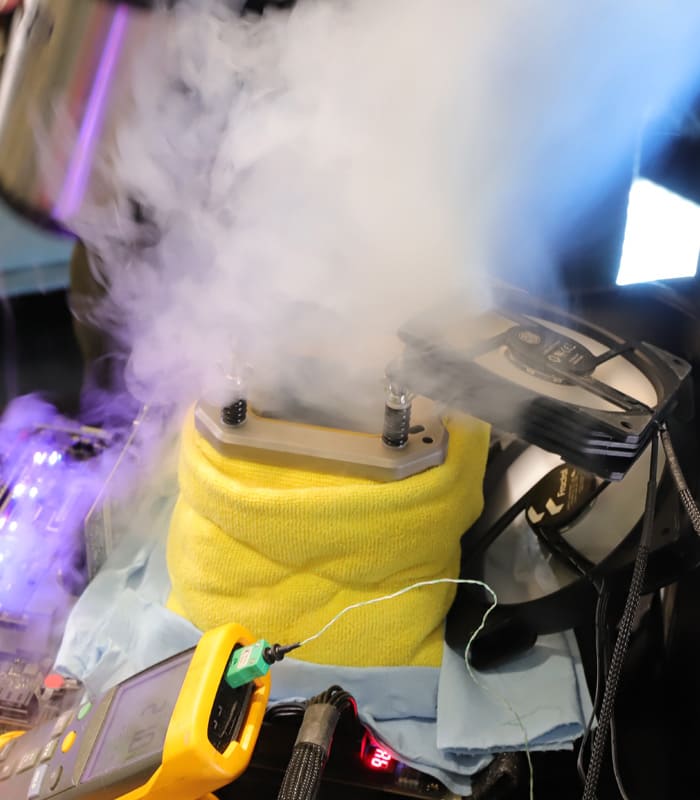

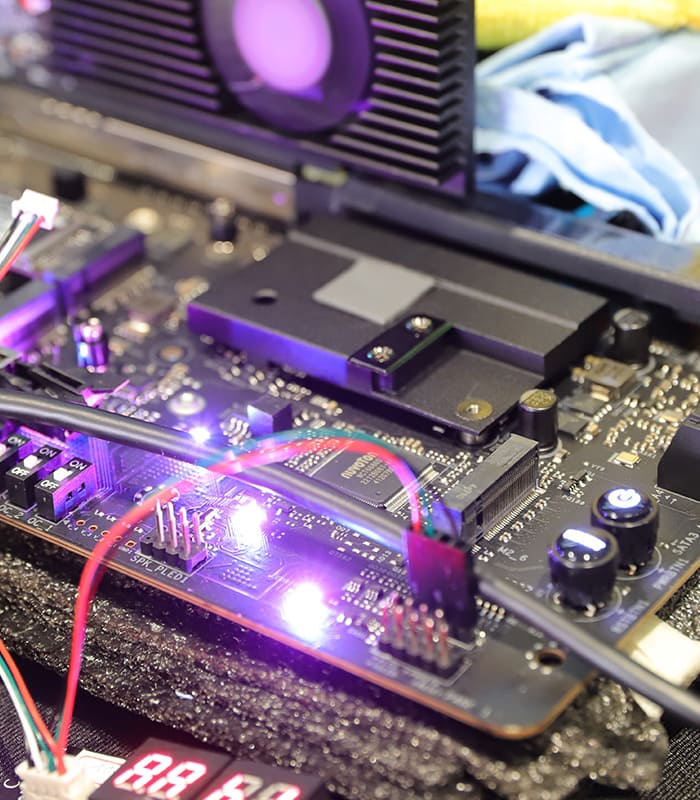

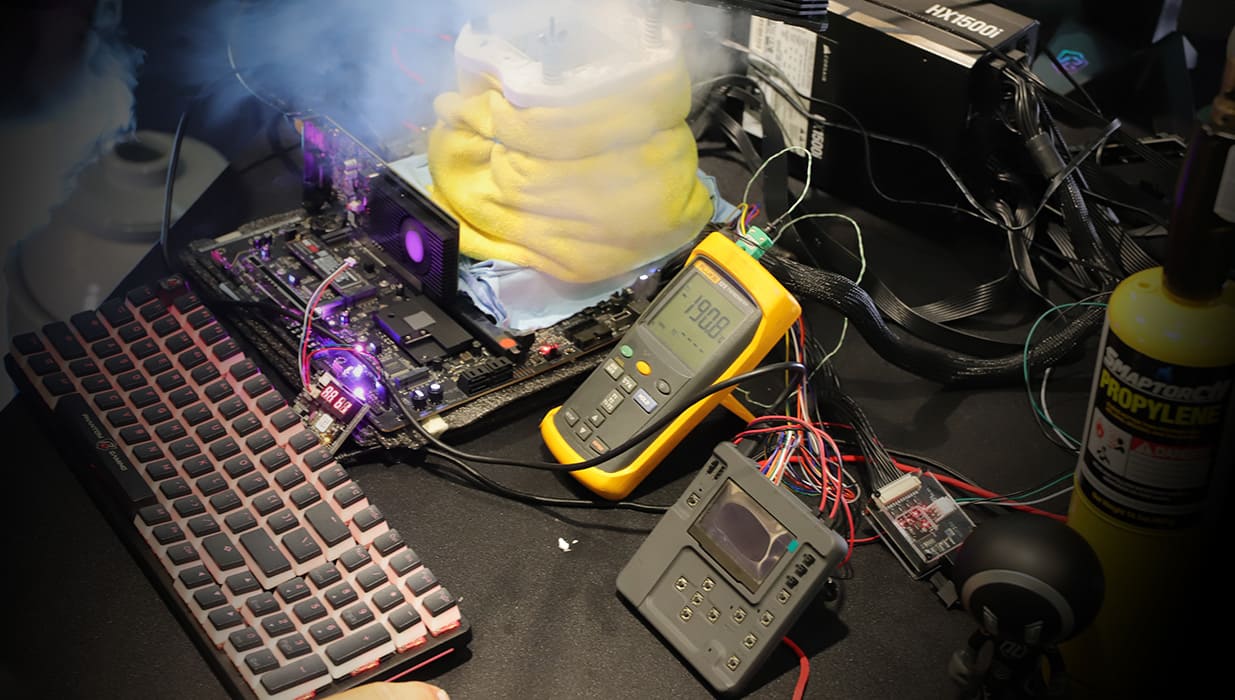

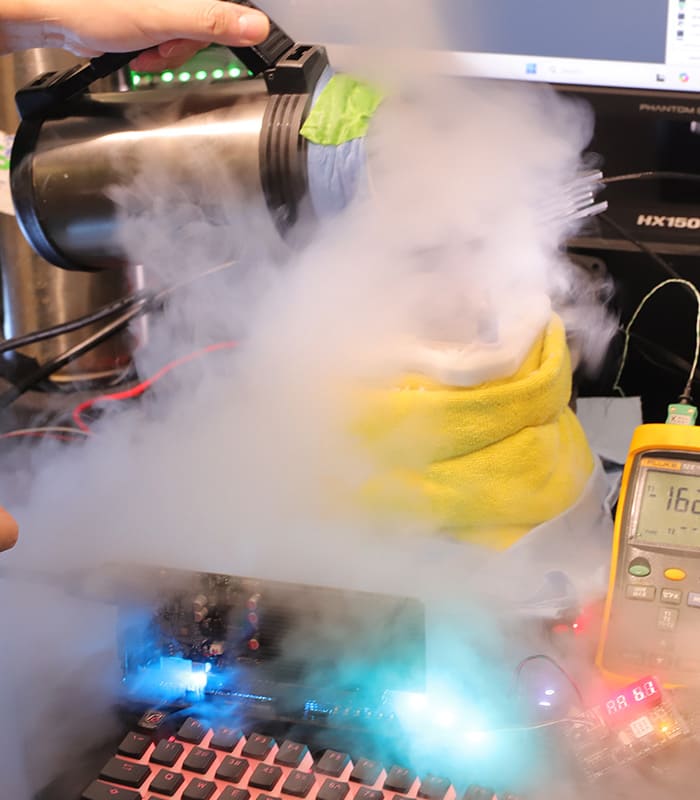

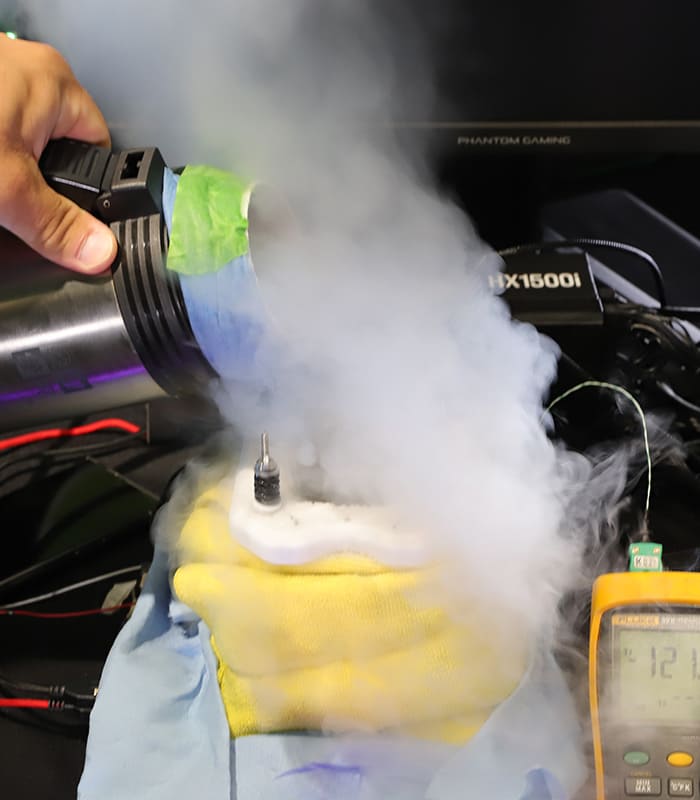

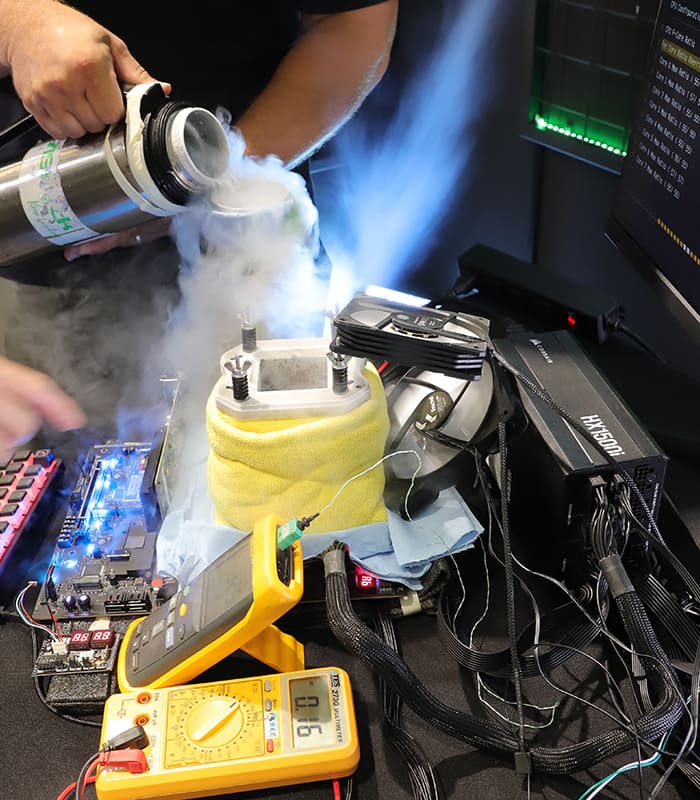

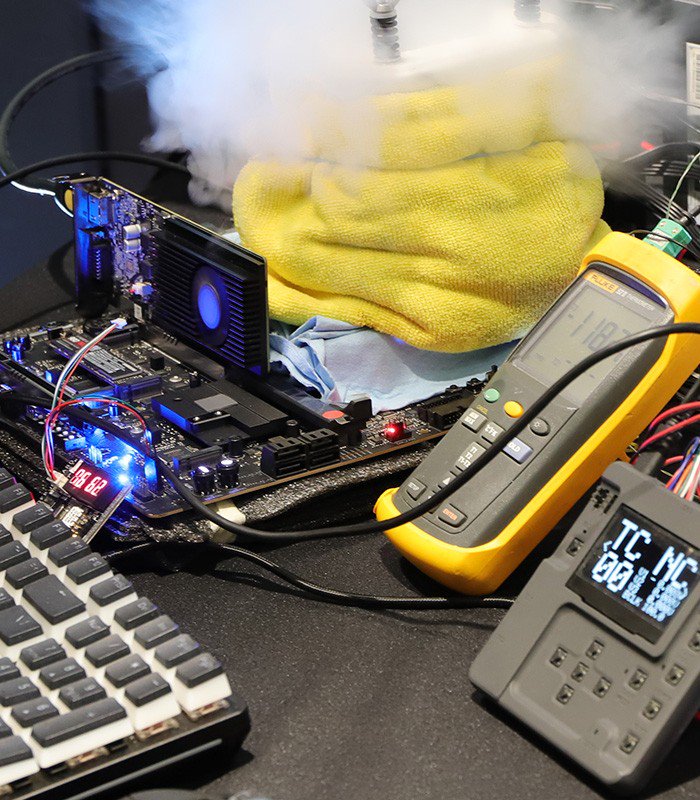

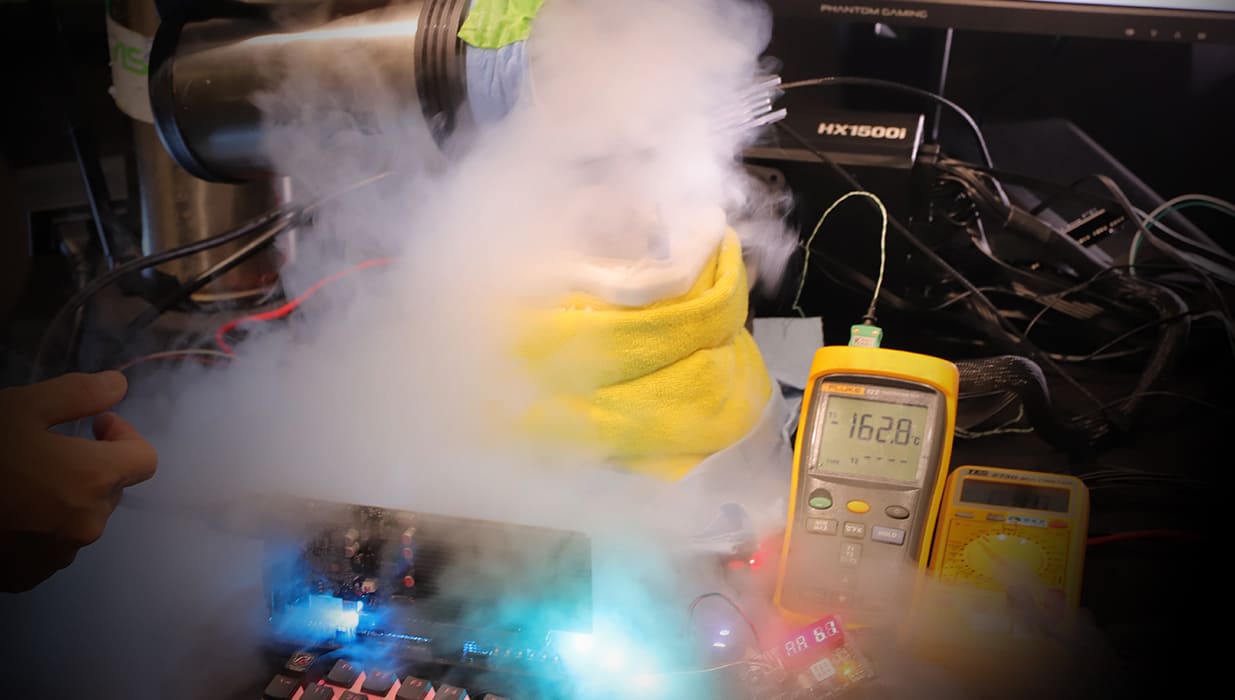

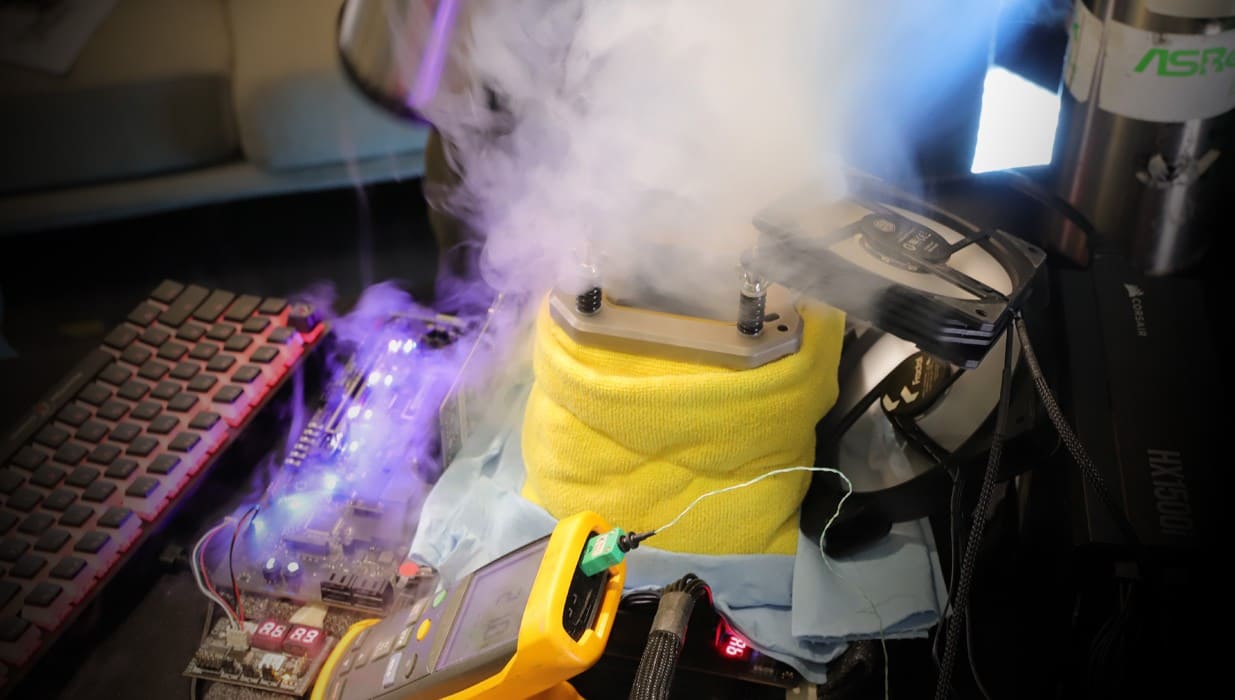

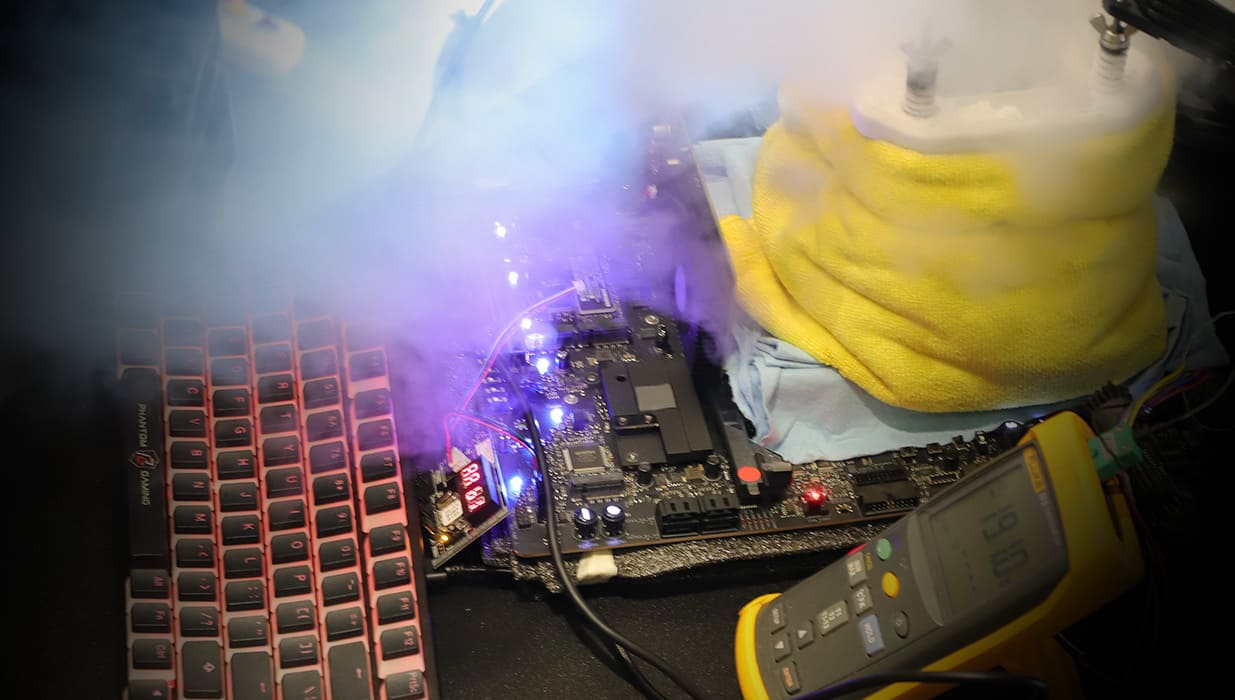

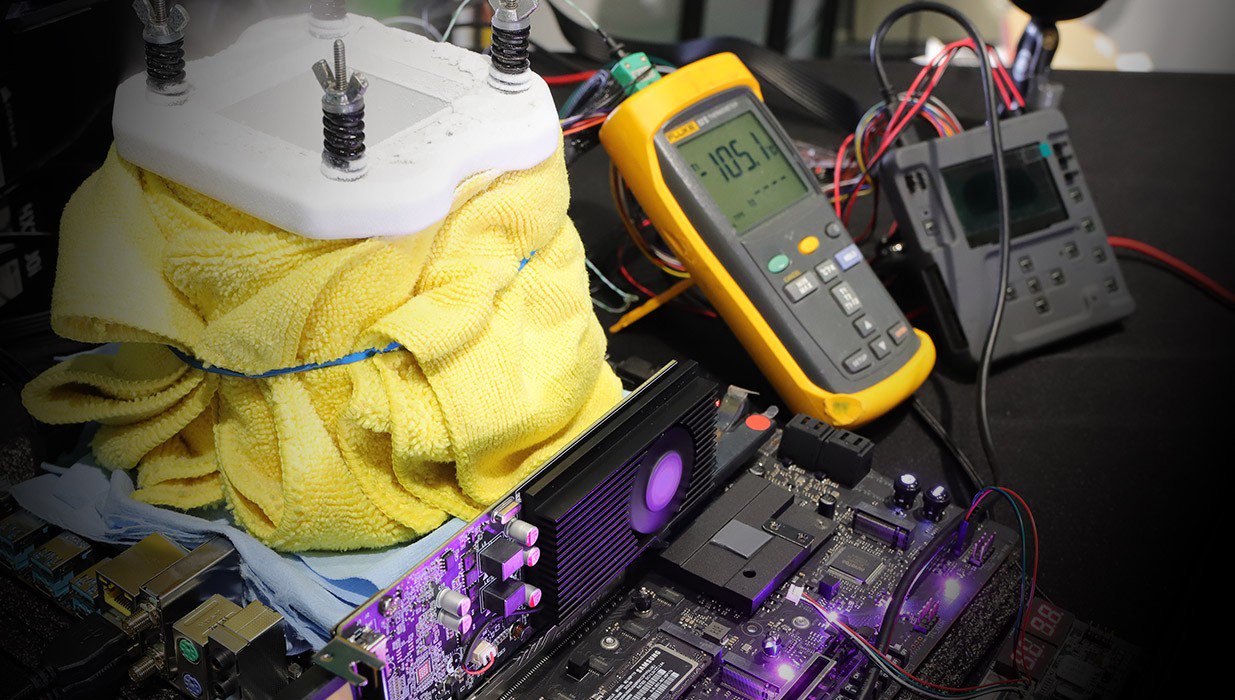

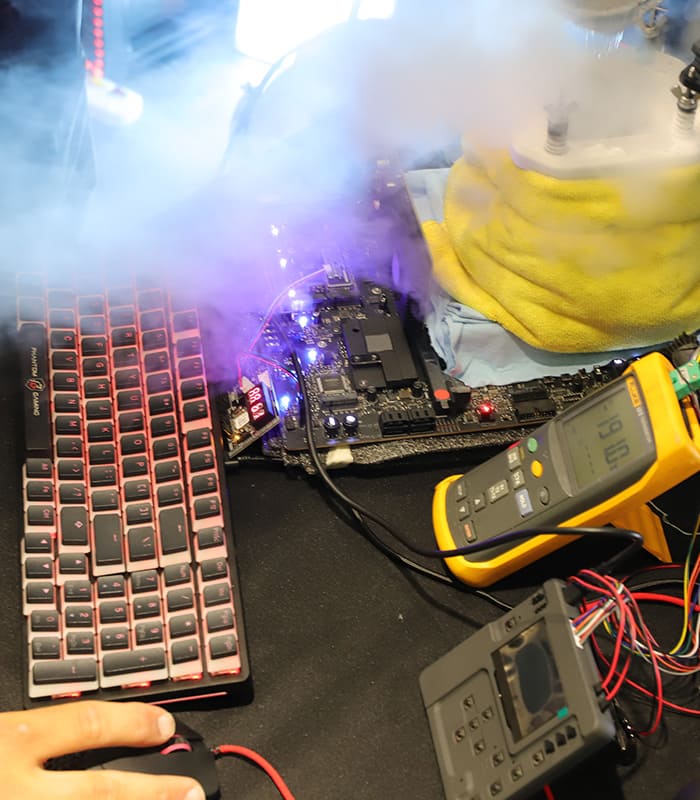

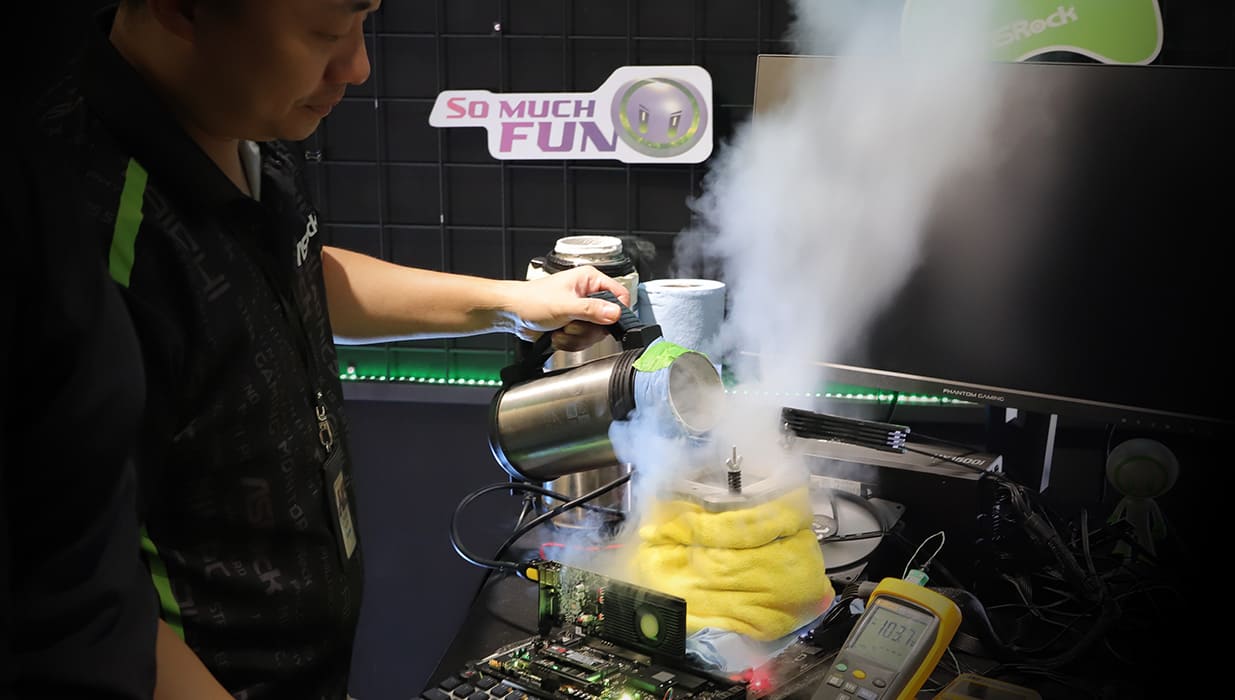

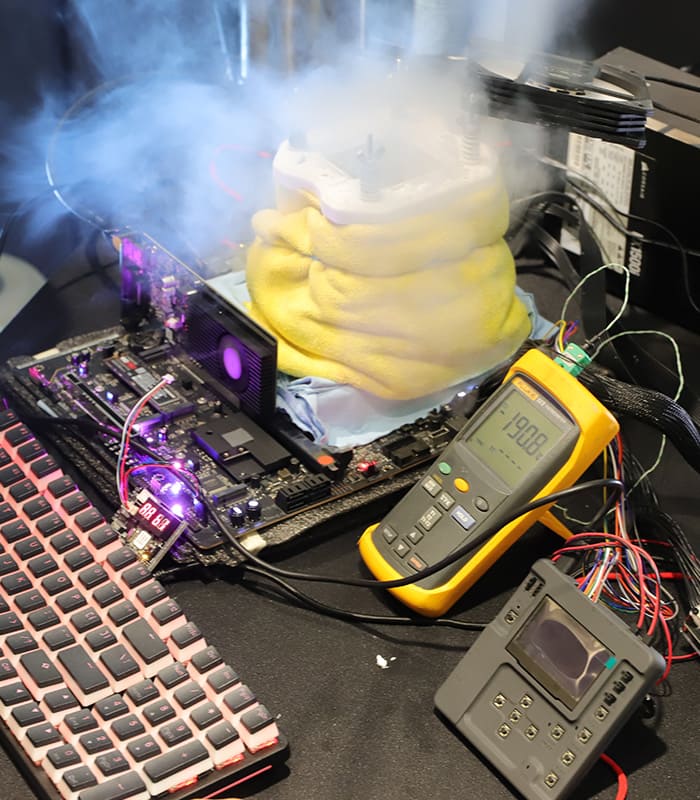

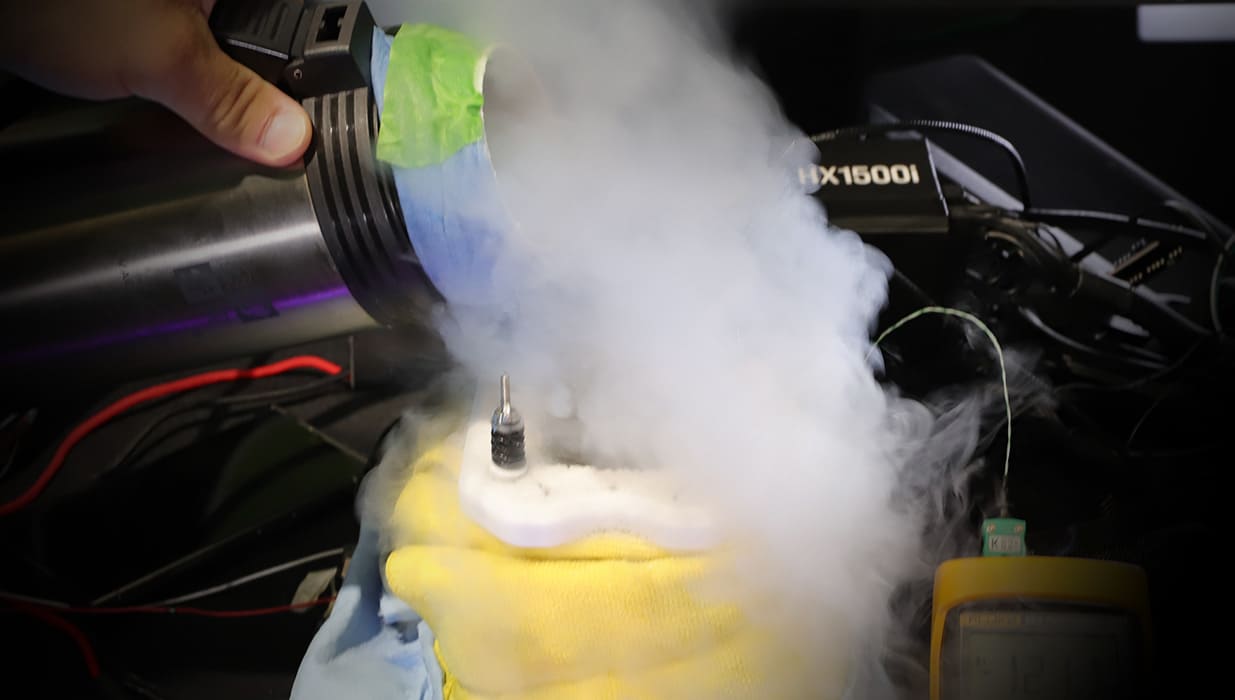

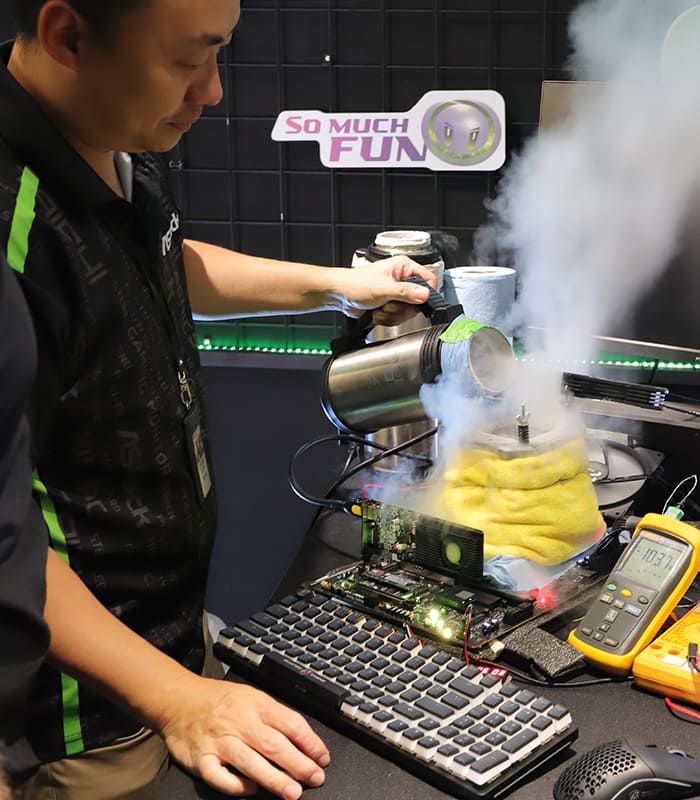

Designed for hardcore overclockers, this motherboard is engineered to push your system beyond its limits with LN2 cooling. Experience unprecedented performance and stability under extreme conditions, giving you the ultimate edge in breaking records and maximizing hardware potential.

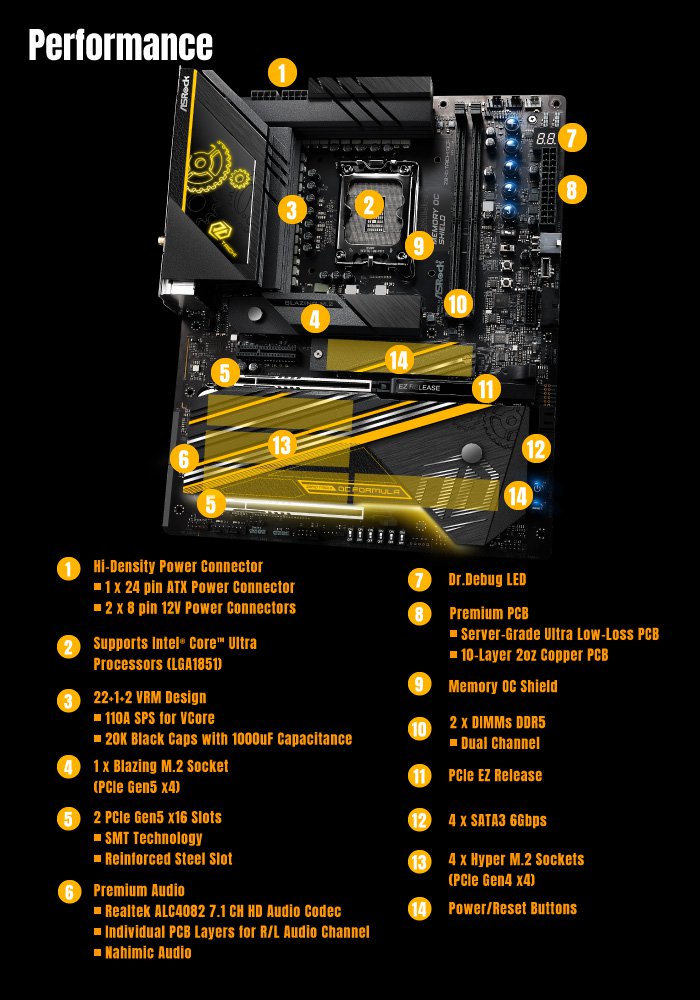

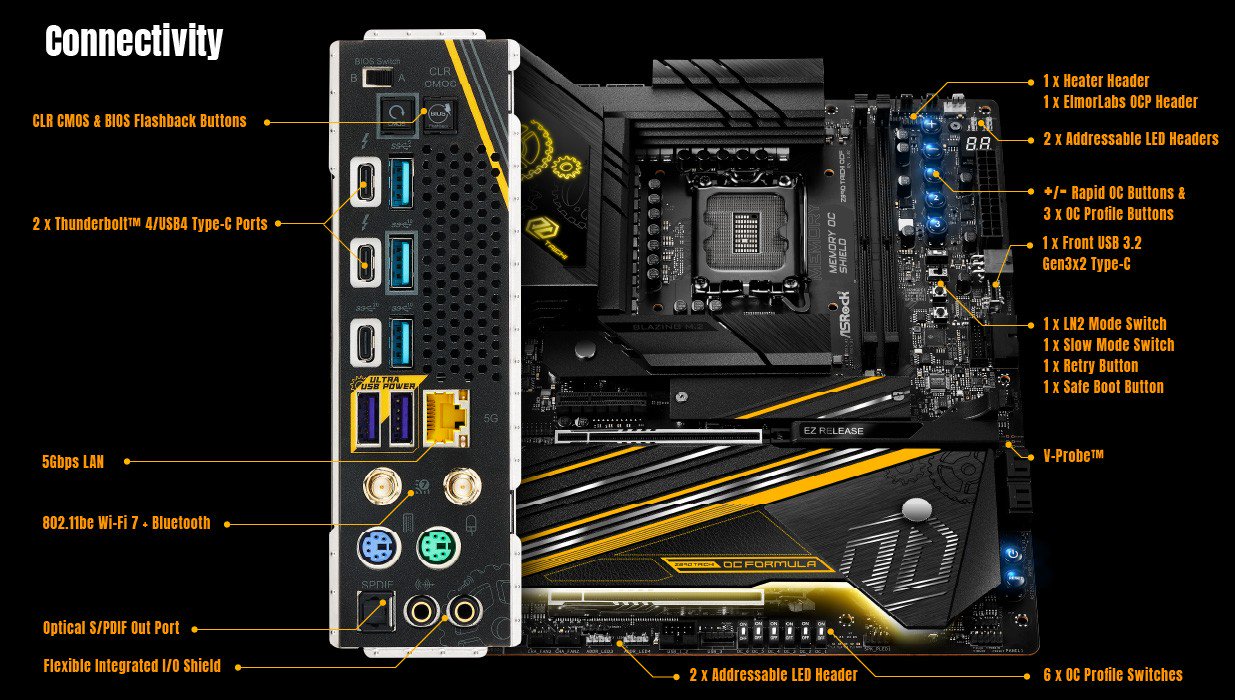

OVERVIEW

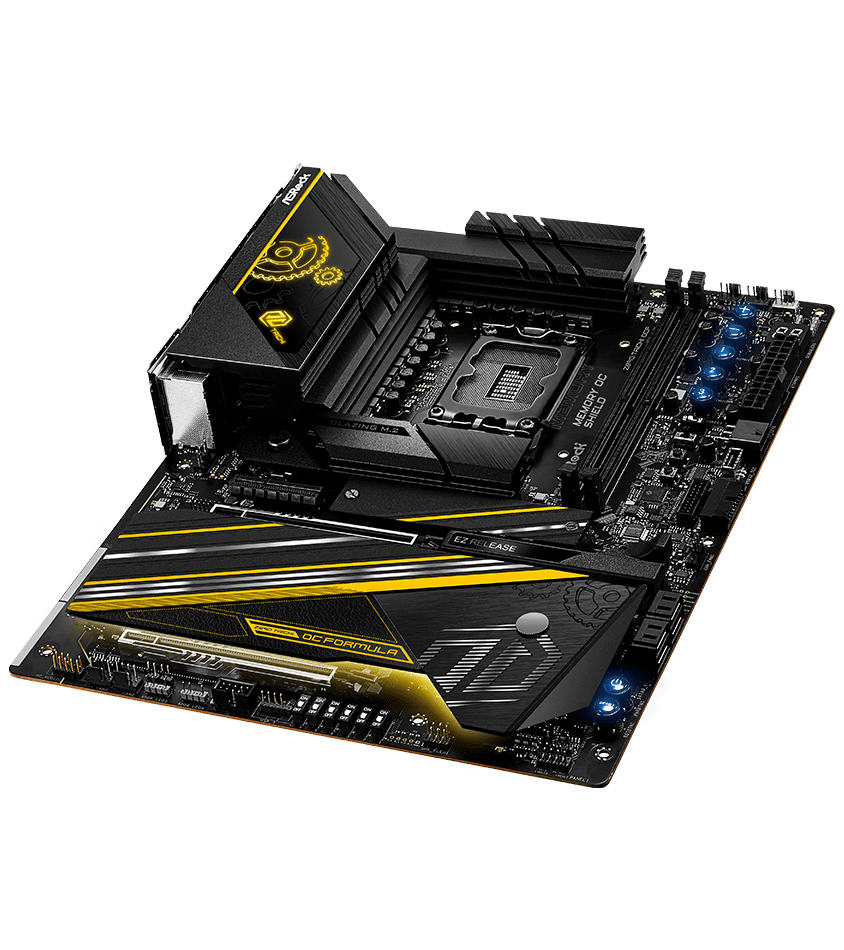

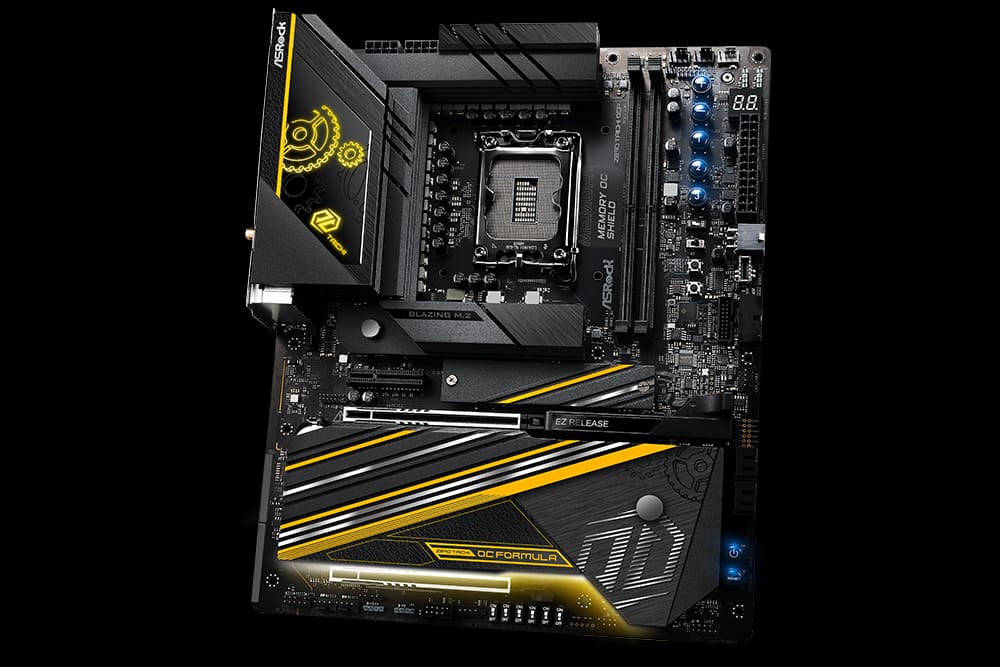

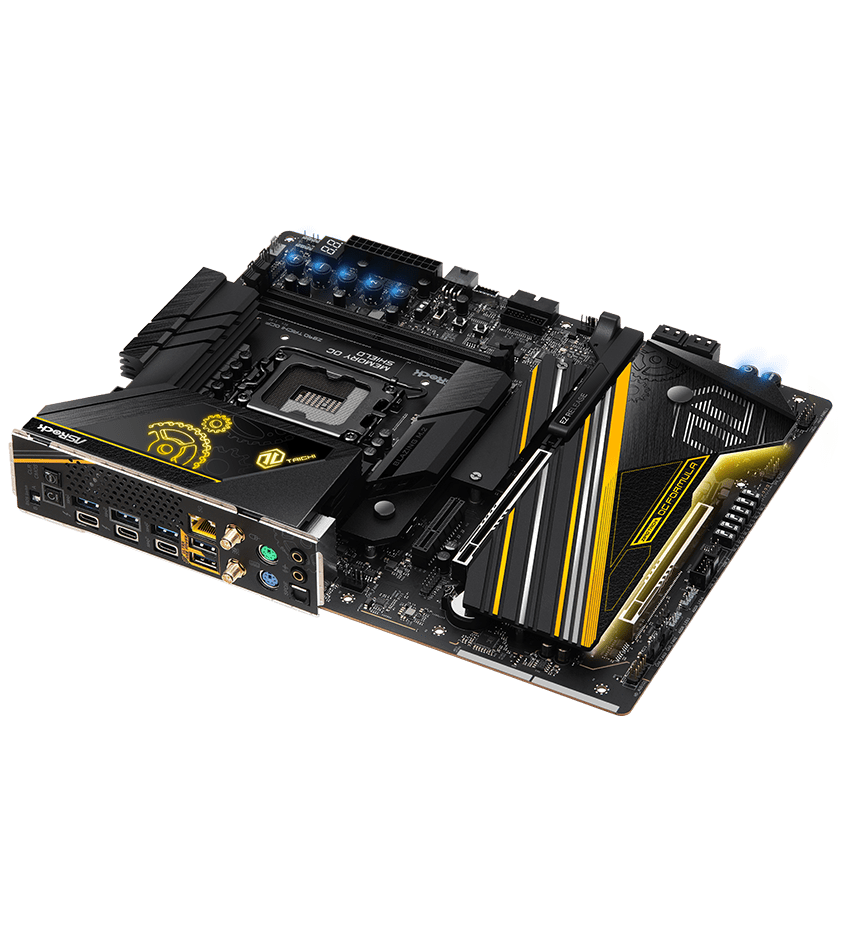

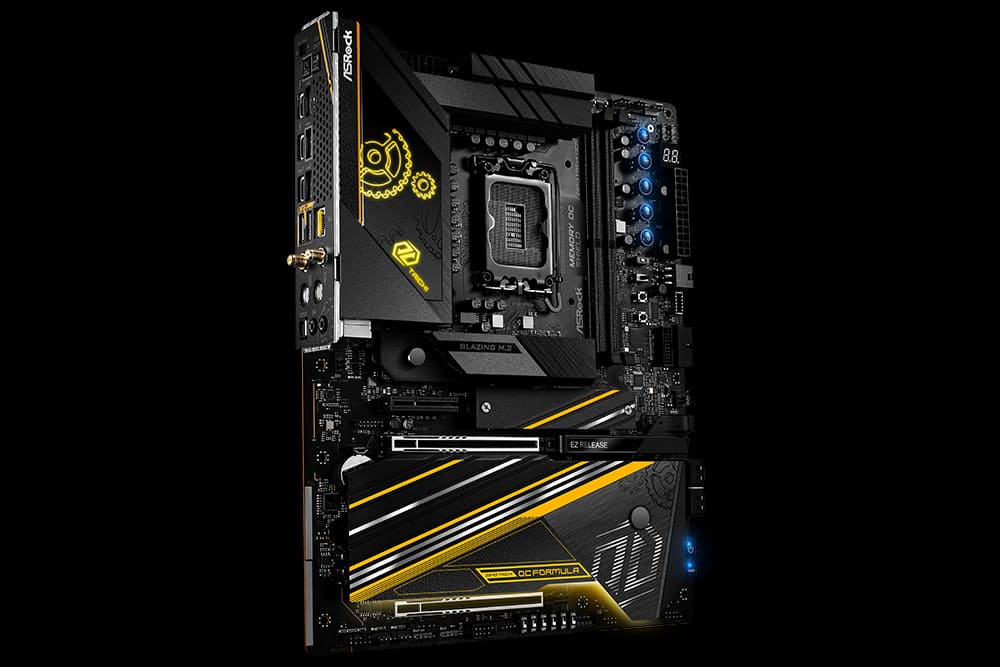

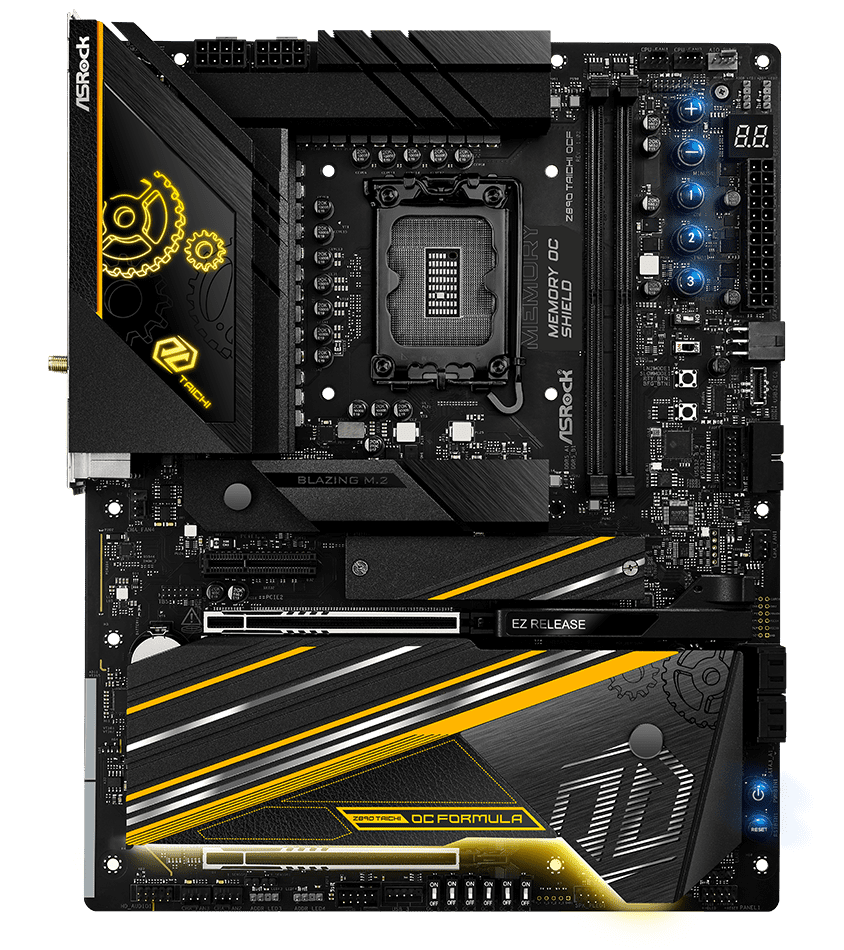

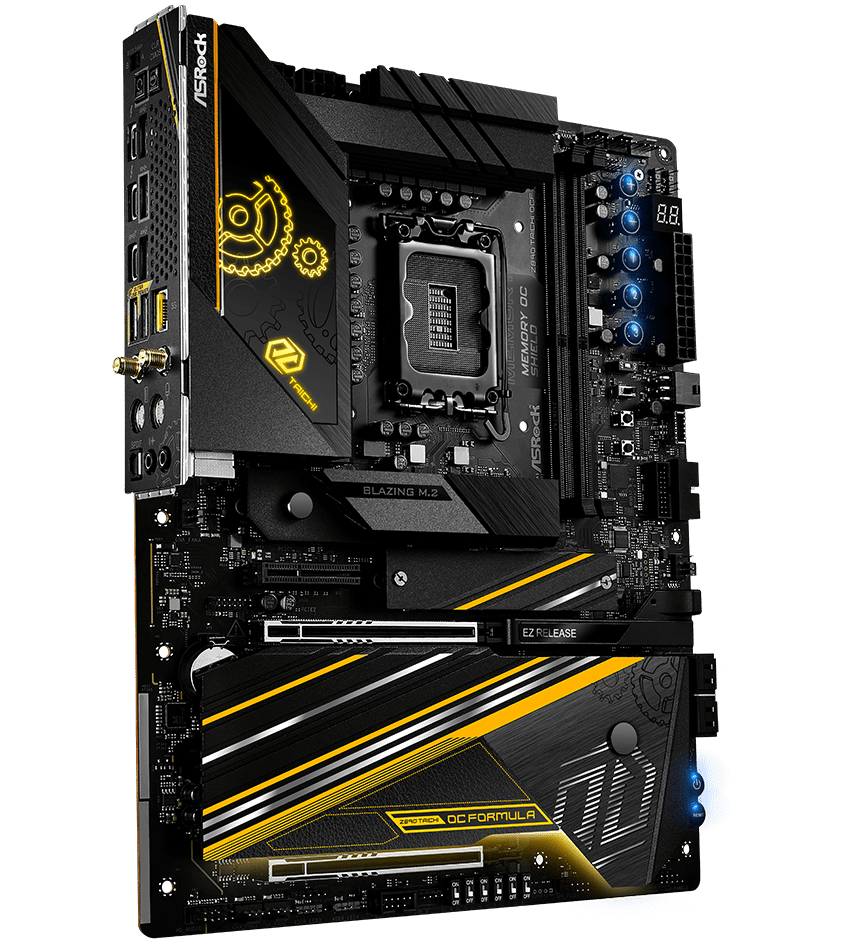

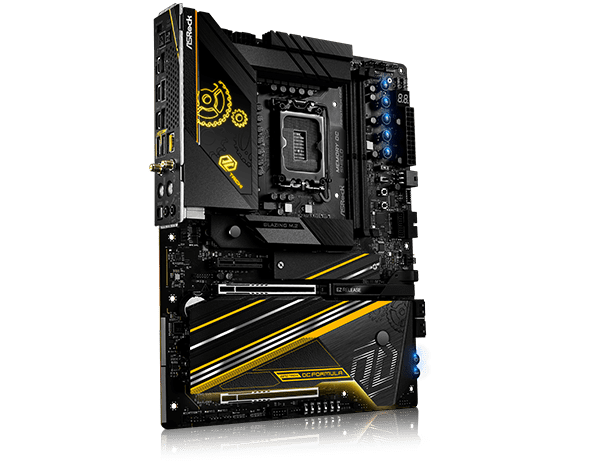

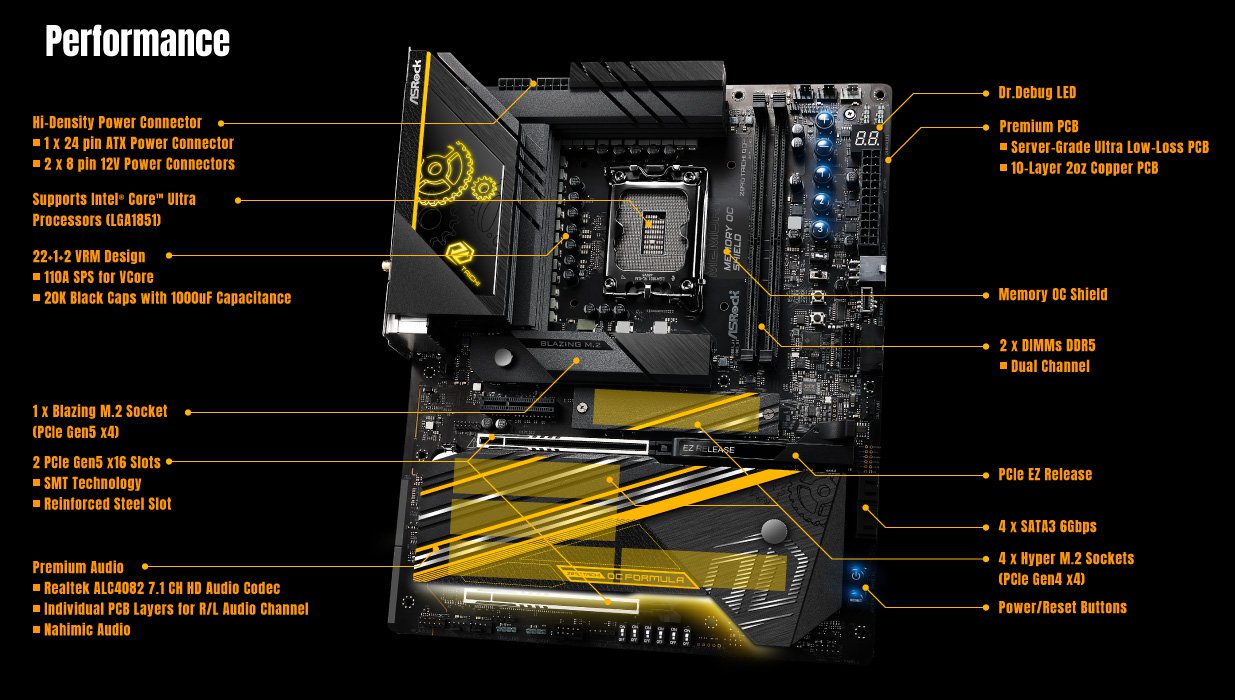

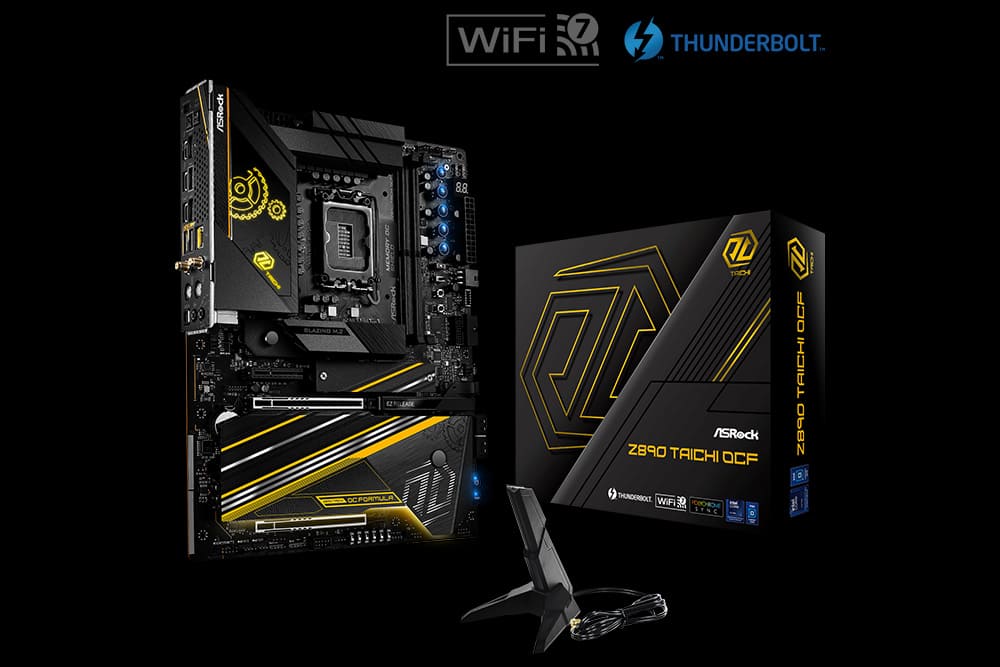

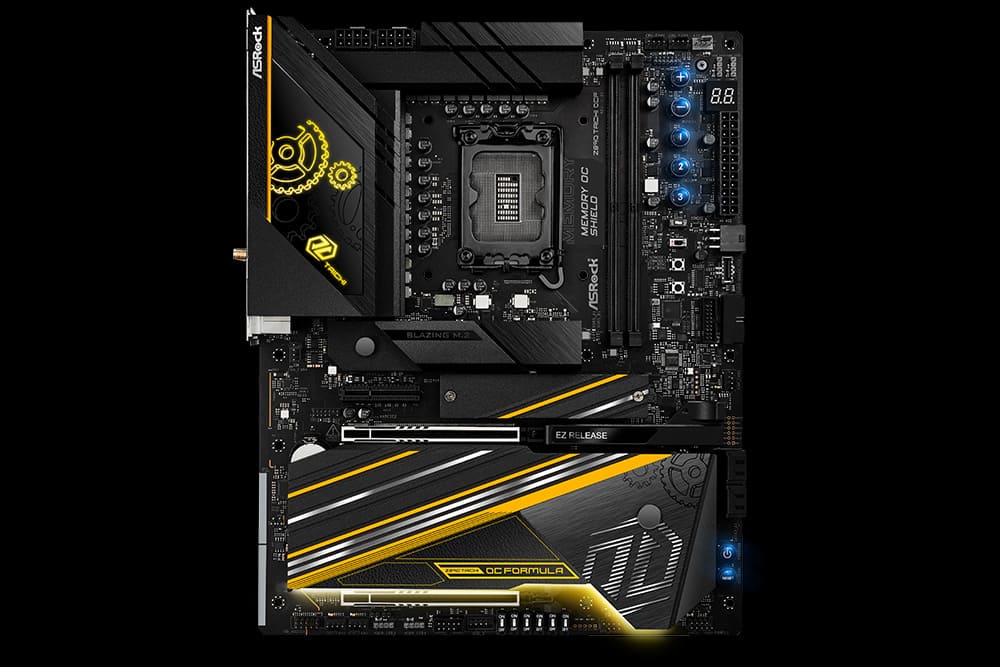

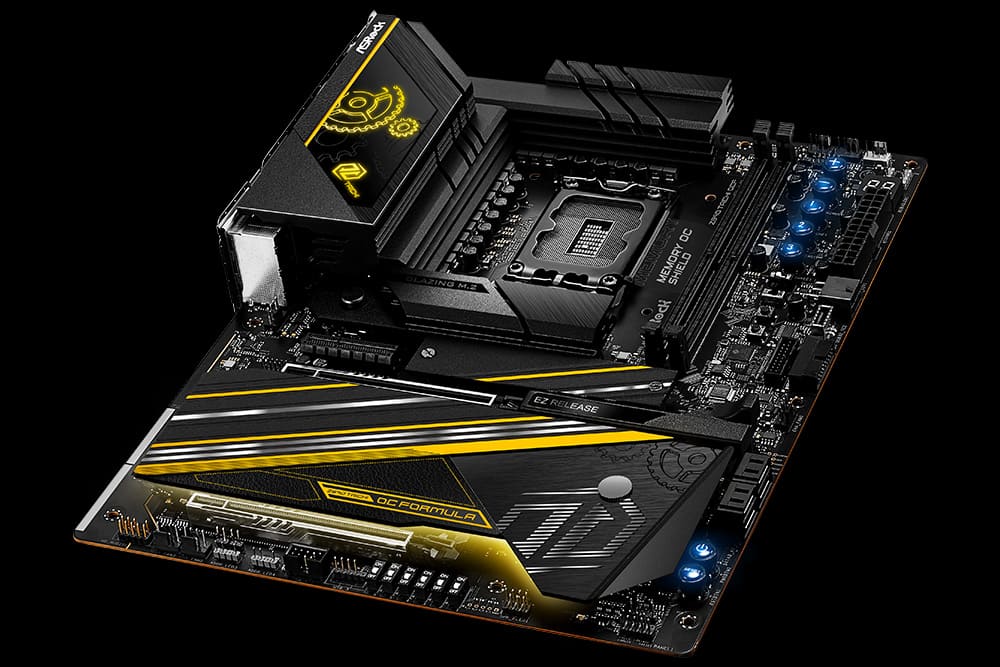

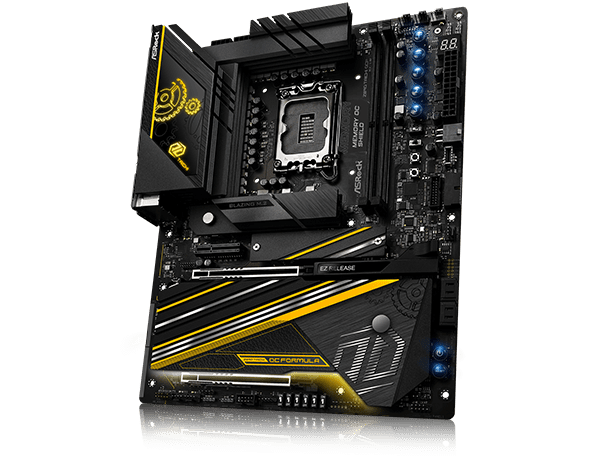

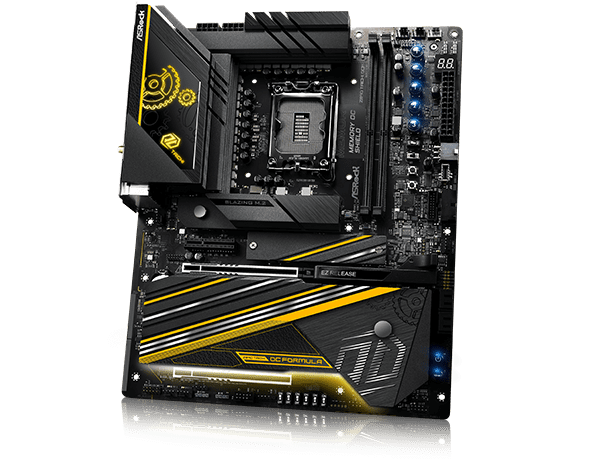

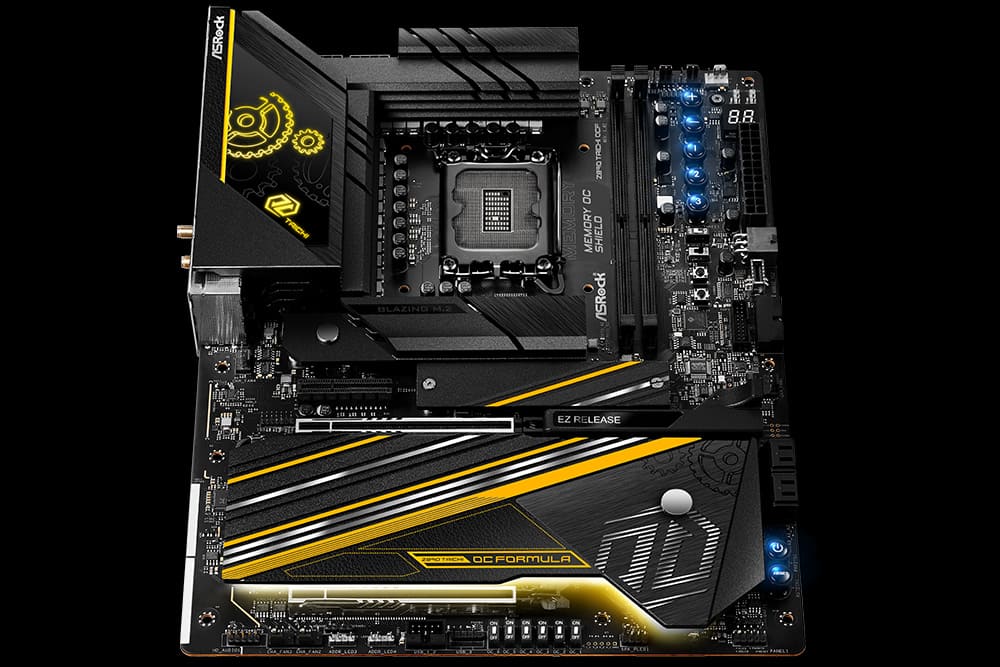

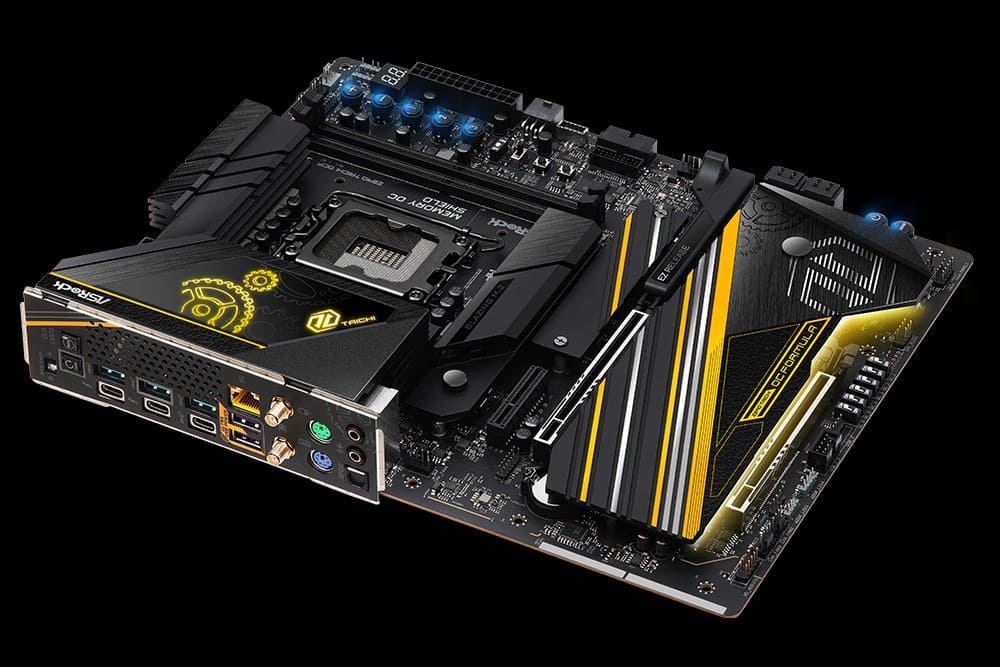

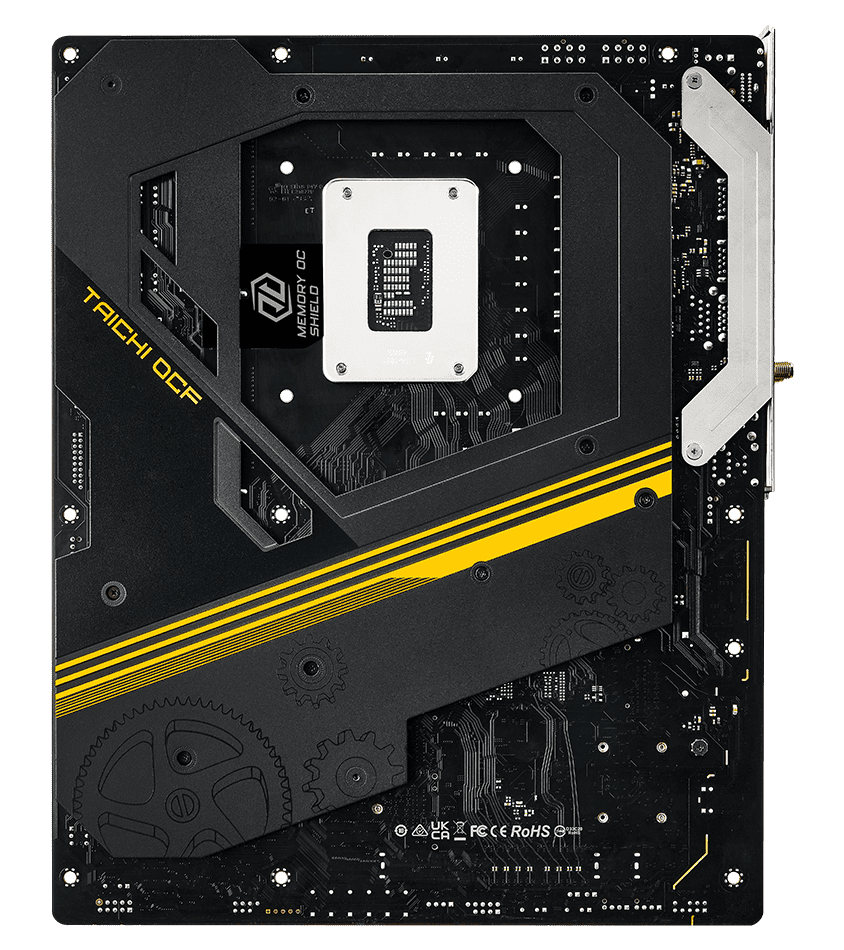

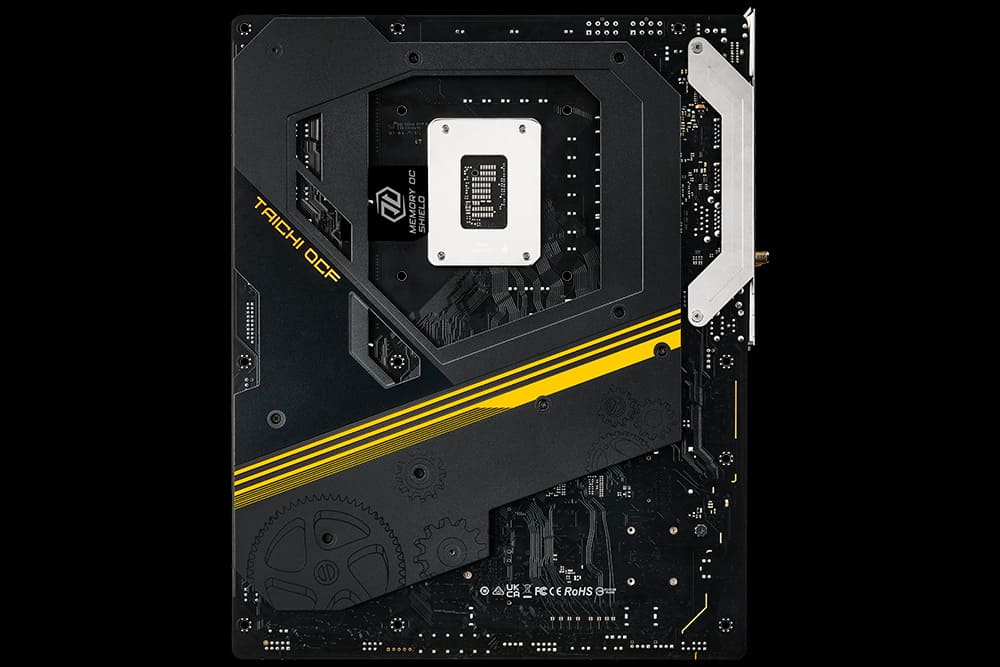

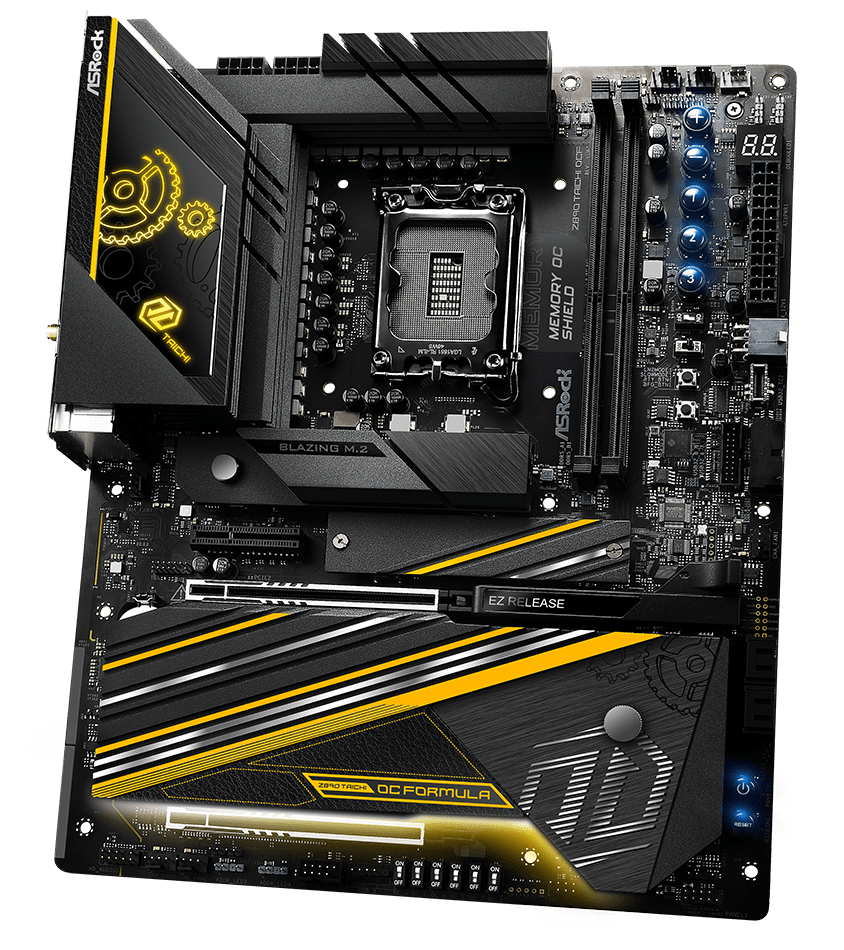

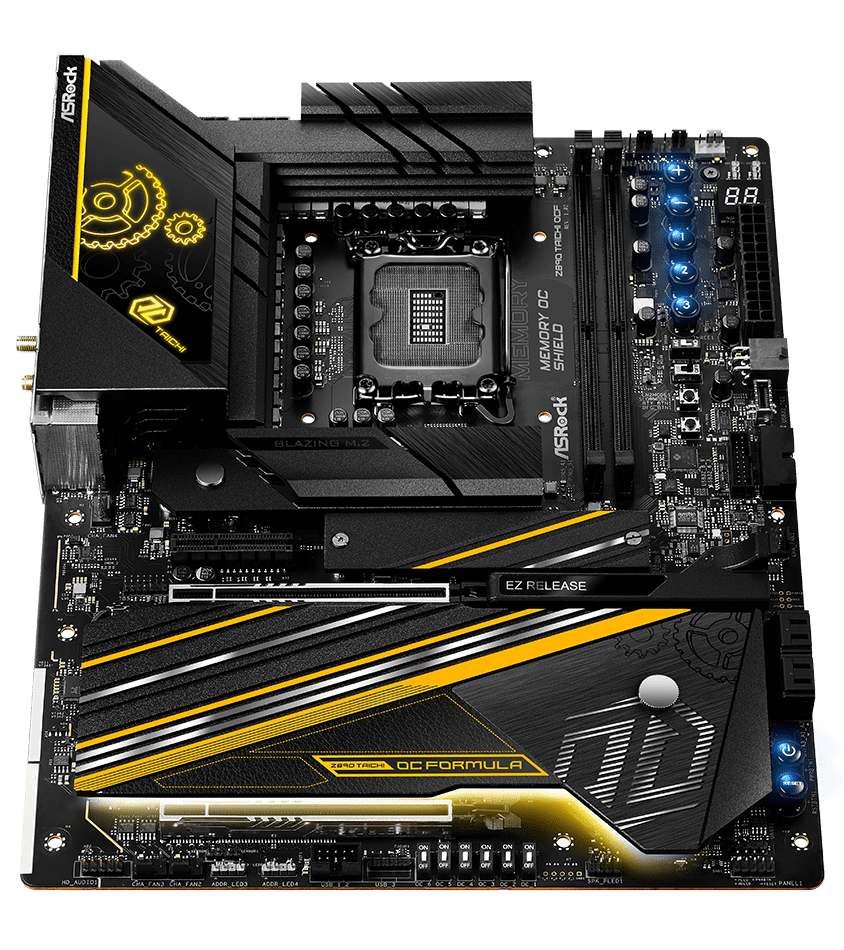

Z890 Taichi OCF

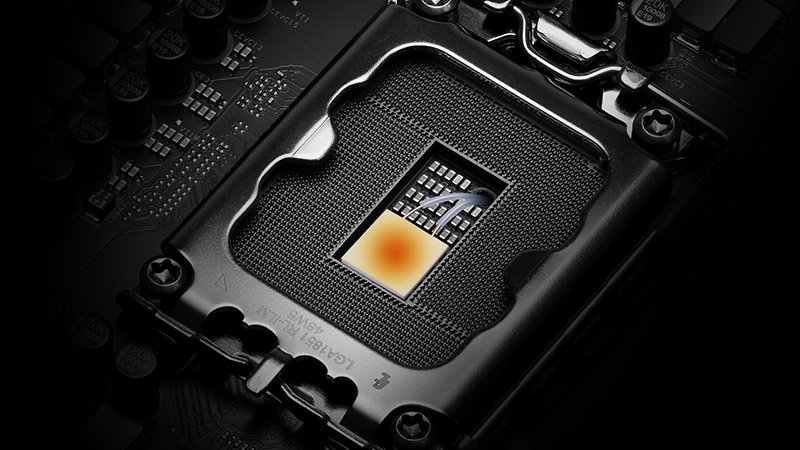

  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)

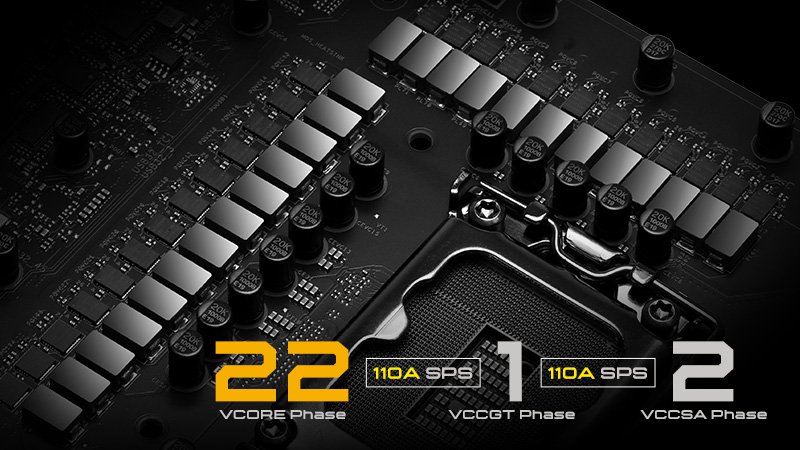

  • 22+1+2+1+1 Power Phase, 110A SPS for VCore
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 12527+ (OC)*

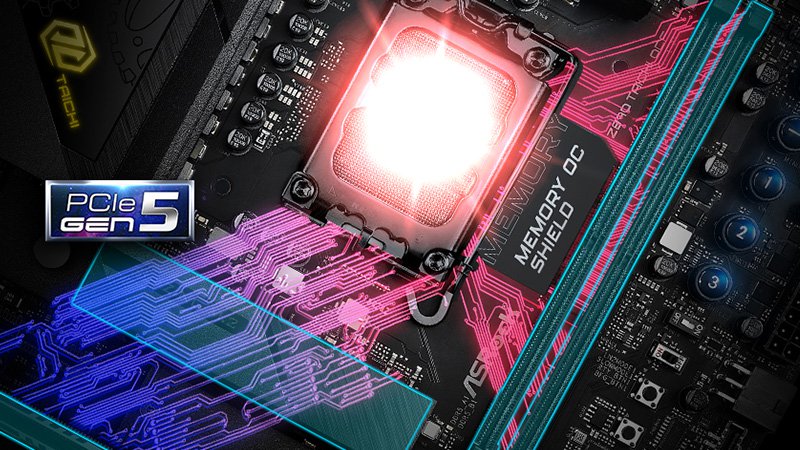

  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
  • Graphics Output Options: 2 Thunderbolt™ 4 Type-C
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3

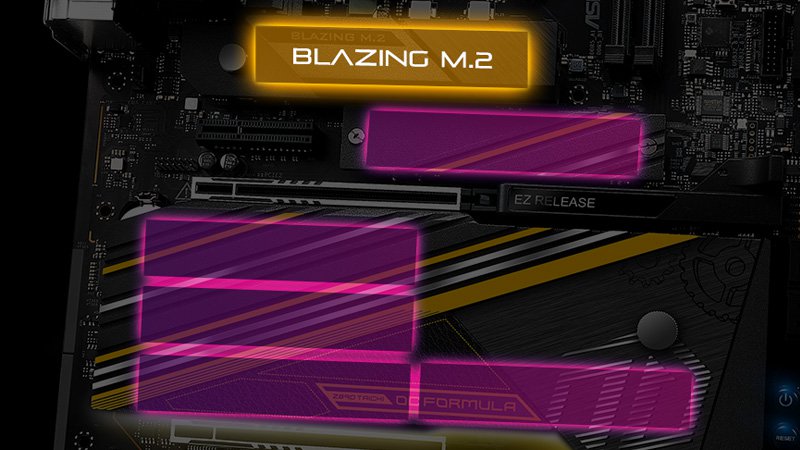

    1 Blazing M.2 (PCIe Gen5 x4)
    3 Hyper M.2 (PCIe Gen4 x4)
    2 Hyper M.2 (PCIe Gen4 x4 & SATA3)

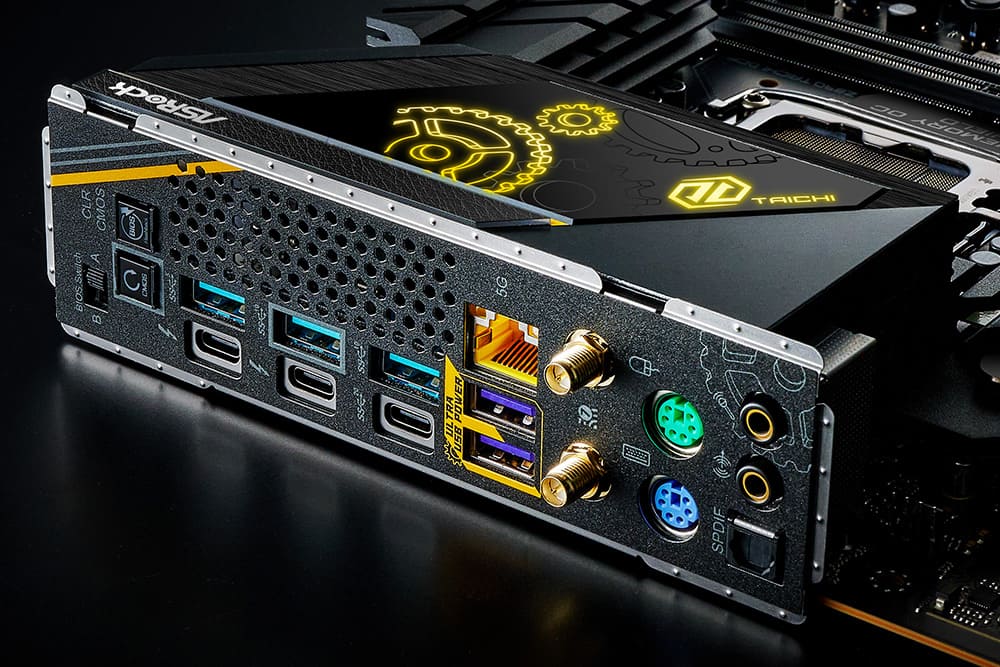

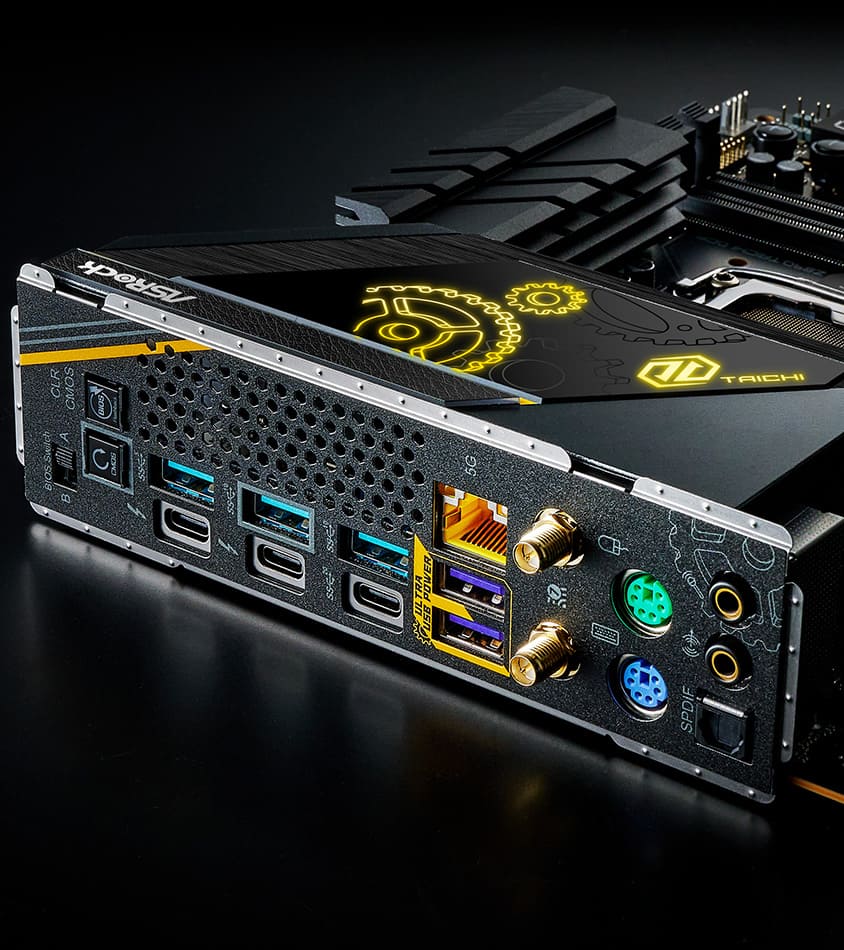

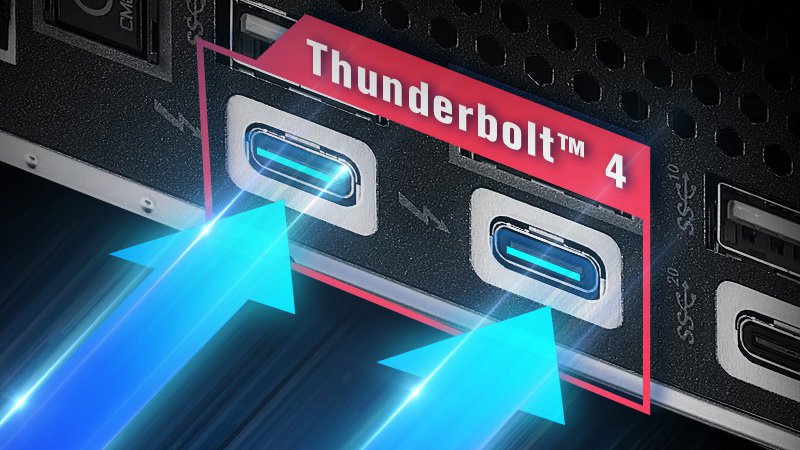

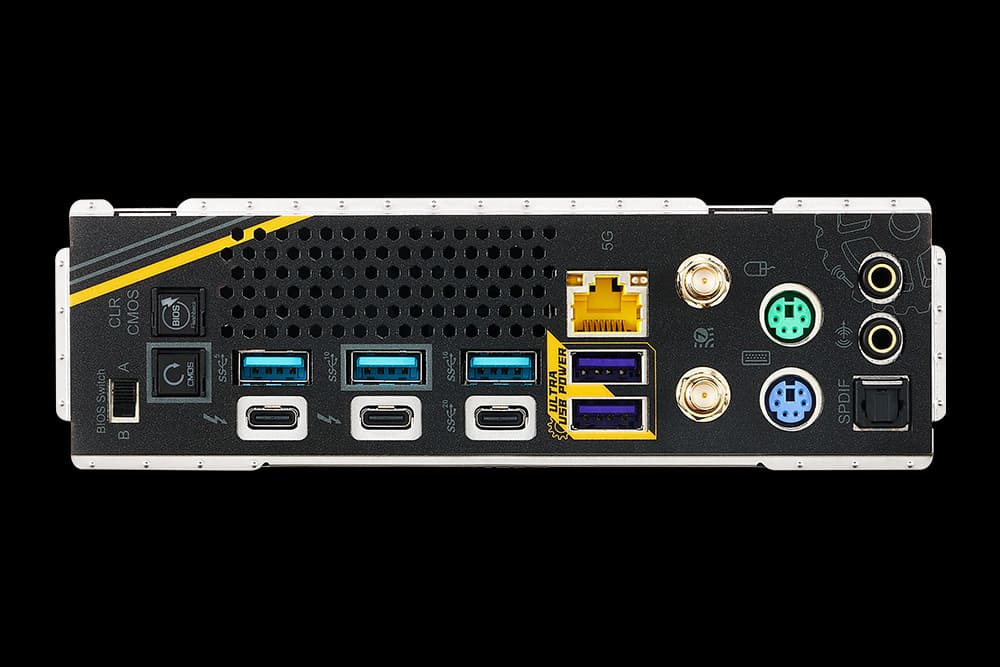

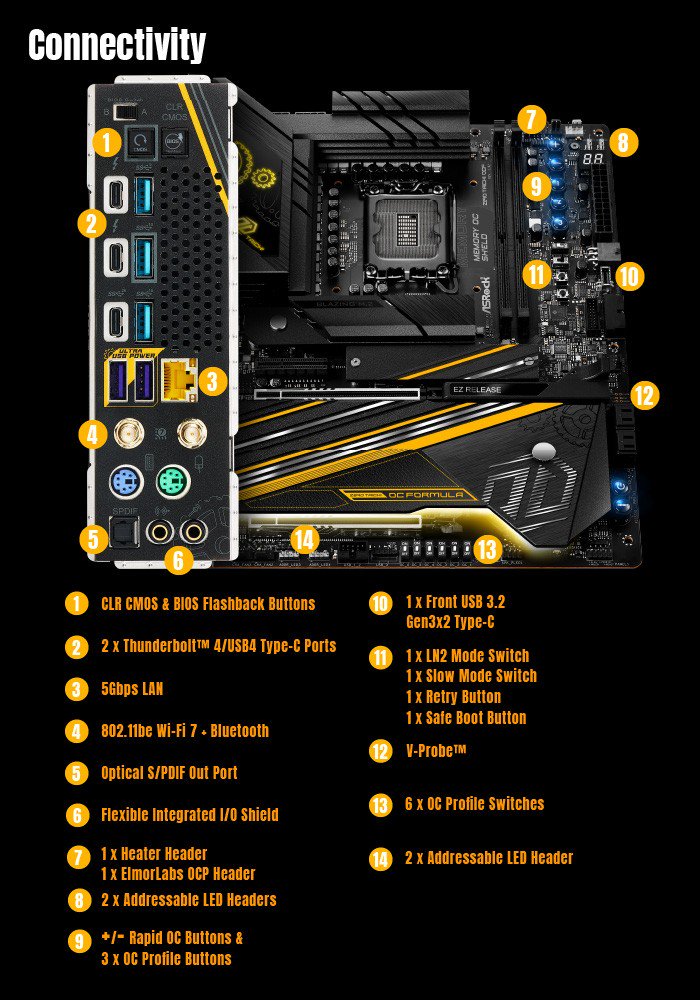

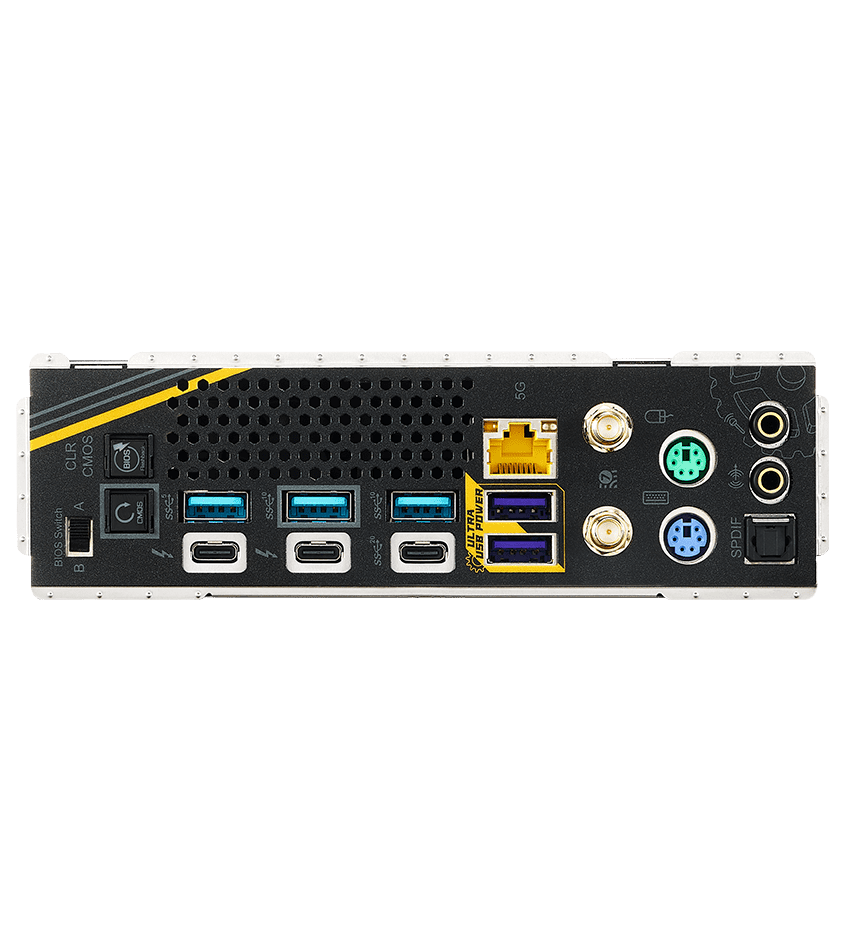

  • 2 Thunderbolt™ 4 Type-C (Rear)
    2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
    4 USB 3.2 Gen2 Type-A (Rear)
    5 USB 3.2 Gen1 (1 Rear, 4 Front)
    3 USB 2.0 (Front)
  • 5G LAN

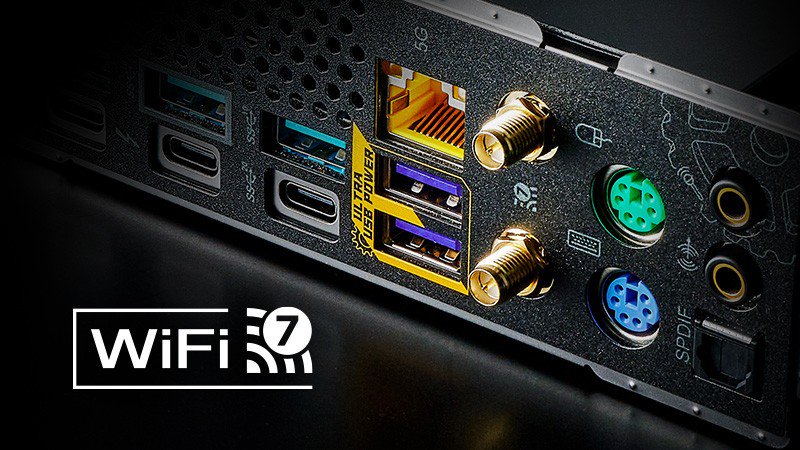

  • 802.11be Wi-Fi 7 + Bluetooth

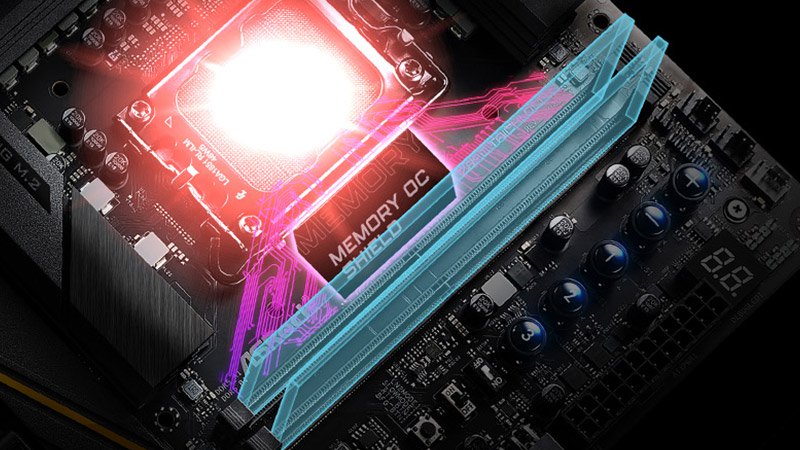

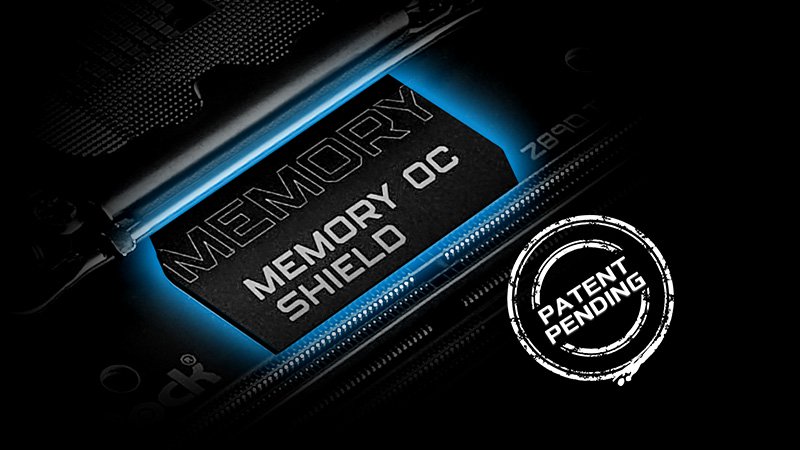

  • Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance

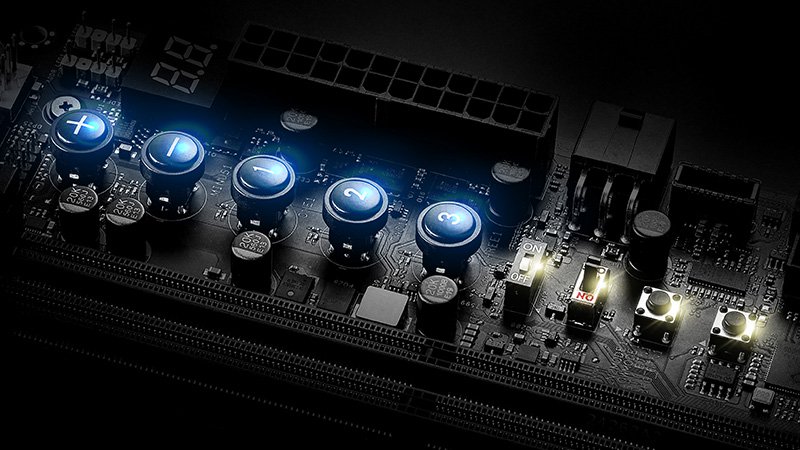

  • Professional Overclocking Toolkit
