H610TM-ITX

Thin Mini-ITX
Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors, up to 65W
Supports Intel^® LGA1700 & LGA1200 CPU Cooler
Supports Dual Channel DDR4-3200MHz, Max. 64GB (non-ECC)
Graphics Output Options: Dual HDMI, D-Sub
Supports LVDS
1 x Blazing M.2 2260/2280 slot (PCIe Gen5 x4)
1 x M.2 2280 slot (SATA3)
2 x SATA 3
1 x USB 3.2 Gen2 Type-C Port, 1 x USB 3.2 Gen2 Type-A Port
2 x USB 2.0 Type-A Ports
1 x M.2 Key-E for Wi-Fi

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

CPU
- Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
- 4 Power Phase design
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
Chipset
- Intel^® H610
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 SO-DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Max. capacity of system memory: 64GB
- Supports Intel^® Extreme Memory Profile (XMP) 2.0
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
Graphics
- Intel^® Xe Graphics Architecture (Gen 12)
- Four graphics output options: 2 x HDMI, 1 x LVDS, 1 x D-Sub ports
- Supports 2 x HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
HDMI x 1 port (Rear)
HDMI x 1 port (Internal)
- DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz(optional)
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports LVDS with max. resolution up to 1920x1080 @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

*Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- Realtek ALC269 Audio Codec
- 1 x MIC IN
- 1 x Line out

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Slots

- 1 x M.2 Socket (Key E), supports PCIe type 2230 WiFi module.

Storage

- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 1 x Blazing M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen5 x4*
- 1 x M.2 Socket (M2_3), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module

*Supports NVMe SSD as boot disks

Connector

- 1 x Chassis Intrusion Header
- 1 x Panel Voltage Selection Header
- 1 x Backlight Inverter Voltage Selection Header
- 1 x FPD Brightness Header
- 1 x Panel Off Header
- 1 x LVDS Connector
- 1 x CPU Fan Connector (4-pin)*
- 1 x 4 pin 19V Power Connector (2-Pin)
- 1 x Thermal Sensor Header
- 1 x Front Panel Audio Connector
- 1 x Internal Speaker Header (4-Pin)
- 1 x Digital MIC Header
- 2 x SATA Power Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Rear Panel I/O

- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port*
*(optional) 1 x COM Port
- 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)**
**(optional) 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (Supports ESD Protection)***
- 1 x USB 3.2 Gen2 Type-C Port (Supports ESD Protection)***
***(optional) 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Support ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line out / Microphone

Unique Feature

ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Blazing M.2 (PCIe Gen5 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
H/W TPM 2.0 IC (optional)

Accessories

- I/O Shield (optional)
- 1 x SATA Data Cable (optional)
- 1 x SATA Power Cable (optional)
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket

Hardware Monitor

- CPU Temperature Sensing
- CPU Fan Tachometer
- CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU Fan Multi-Speed Control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
- Solid Capacitor design

- Microsoft Windows^® 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Description	Language	Download
User Manual	English	Global	China
Quick Installation Guide	English	Global	China
Quick Installation Guide	Multi-Language	Global	China

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

ASRock

H610TM-ITX

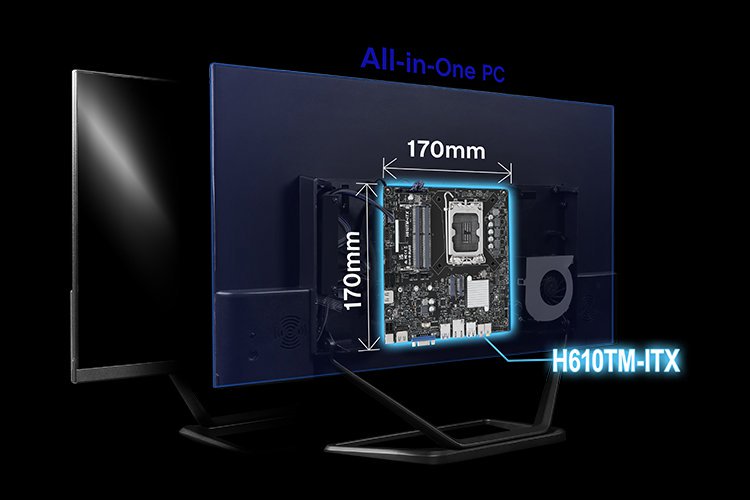

Suitable for All-in-One PC

Mini PC Motherboard

Dual Channel DDR4 Memory

High Speed M.2 Solution

2 X SATA Ports

Dual HDMI

USB Type-C

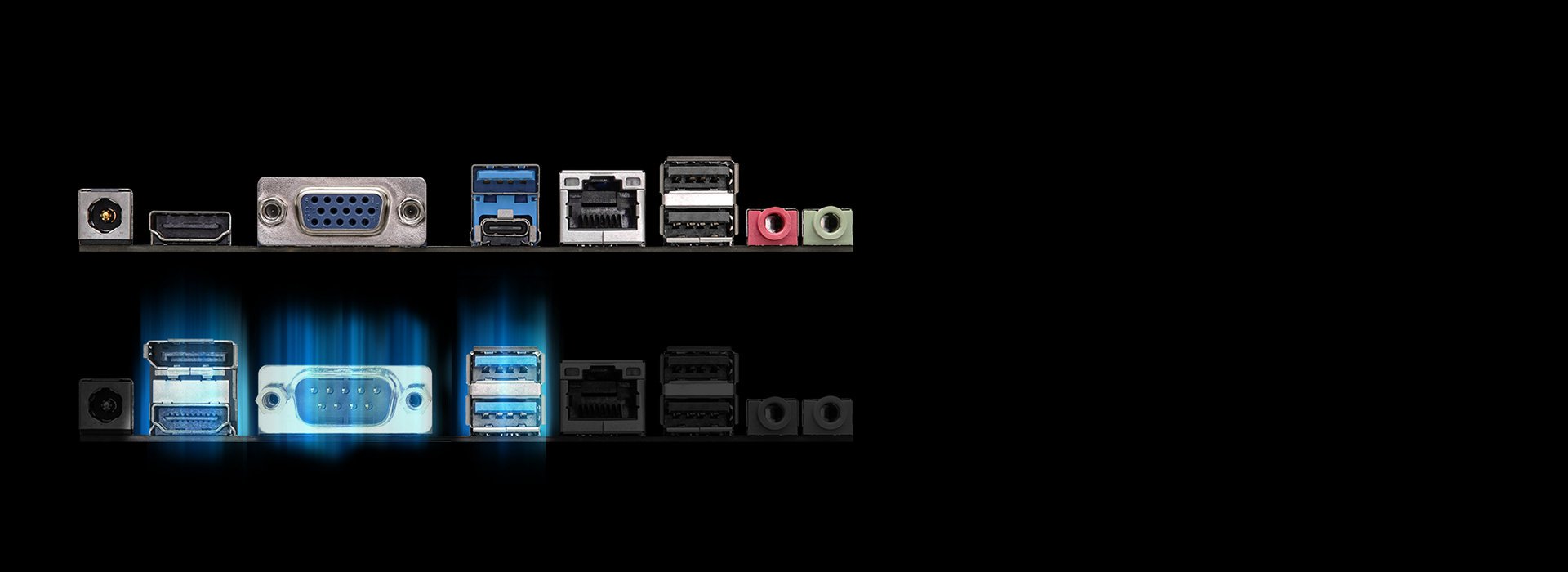

Customization Options
