• Caracteristici unice
  ASRock Super Alloy

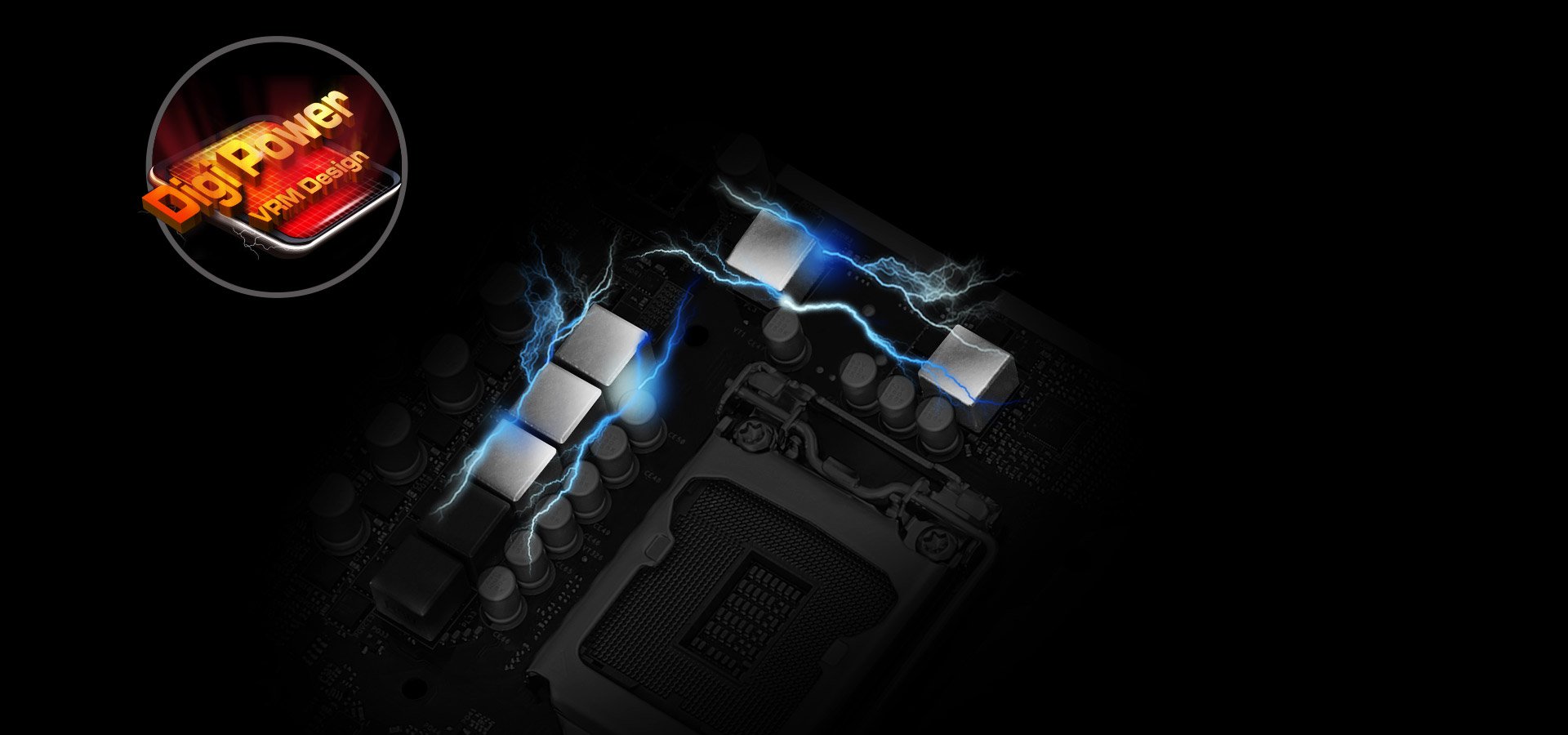

  - Premium 50A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• Procesor
  - Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors (LGA1200)
  - 5 Power Phase design
  - Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  - Intel^® H510
• Memorie
  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB**
  - Supports Intel^® Profil de memorie extrem (XMP) 2.0



  *11th Gen Intel^® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium^® and Celeron^® support DDR4 2666 natively.
  10th Gen Intel^® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 2666 natively.

  **Datorita limitarii sistemului de operare, dimensiunea reala a memoriei poate fi mai mica de 4GB pentru rezervarea de utilizare a sistemului in Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
• Grafică
  - 11th Gen Intel^® Core™ Processors support Intel^® Xe Arhitectură grafică (Gen 12). 10th Gen Intel^® Core™ Processors support Gen 9 Graphics
  - Iesire grafica dubla: support HDMI and D-Sub ports by independent display controllers
  - Supports HDMI 2.0 with max. rezoluţie up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel^® Core™ Processors
  - Supports HDMI 1.4 with max. rezoluţie up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel^® Core™ Processors
  - Supports D-Sub with max. rezoluţie up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
  - Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel^® Core™ Processors)



  *Grafica Intel^® UHD Graphics Built-in si iesirile VGA pot fi suportate numai cu procesoare cu GPU-ul integrat.
  Specificațiile grafice pot varia între tipurile de CPU.
• Audio
  - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  - Supports Surge Protection
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - 1 x Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Sloturi
  11th Gen Intel^® Core™ Processors
  - 1 x PCI Express 4.0 x16 Slot*
  10th Gen Intel^® Core™ Processors
  - 1 x PCI Express 3.0 x16 Slot*

  - 1 x PCI Express 3.0 x1 Slot



  *Suporta SSD-ul NVMe ca boot disks.
• Depozitare
  - 4 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
• Conectori
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)



  *Conectorul ventilatorului de pe procesor suporta ventilatorul de pe procesor cu o putere maxima de 1A (12W).

  **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Scut I/O
  - 1 x PS/2 Keyboard Port
  - 1 x PS/2 Mouse Port
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 4 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software și UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Flash instant
  - ASRock Internet Flash



  *Aceste utilități pot fi descărcate din Live Update & APP Shop.
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accesorii
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor
  - Fan Tachometer: CPU, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  - CASE OPEN detection
  - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
• Format
  - Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
  - Solid Capacitor design
• SO
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certificări
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

Termenii HDMI, HDMI High-Definition Multimedia Interface şi sigla HDMI sunt mărci comerciale sau mărci comerciale înregistrate ale HDMI Licensing Administrator, Inc. în Statele Unite şi în alte ţări.

Specificaţiile se pot schimba fără o notificare prealabilă. Mărcile şi numele produselor sunt mărci comerciale ale companiilor respective. Orice alta configuraţie, alta decât cea originală, nu este garantată.

Interfata utilizatorului din imaginea de mai sus este un exemplupentru referinte. Interfata utilizatorului actuala poate varia in functie de versiunea software-ului actualizat.
