B860M-X
X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.
hero image
Layout - 3
Layout - 3
Performance

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

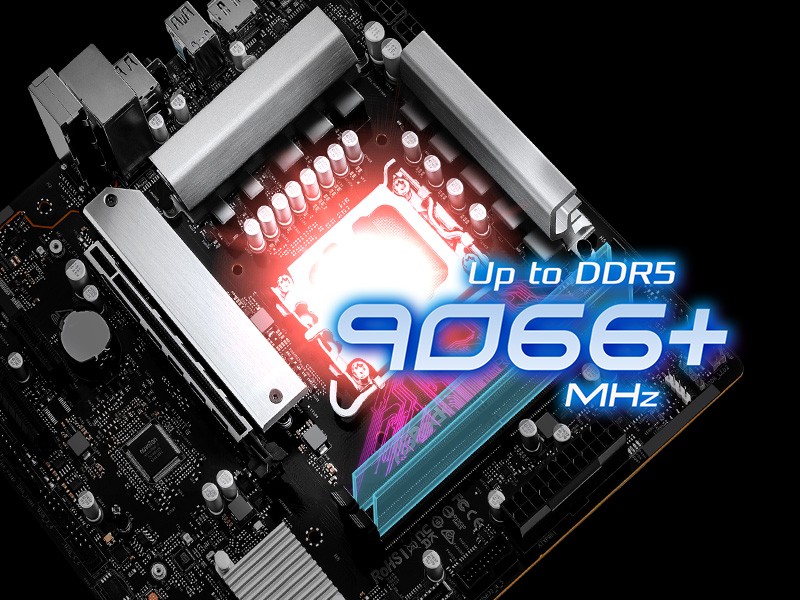

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

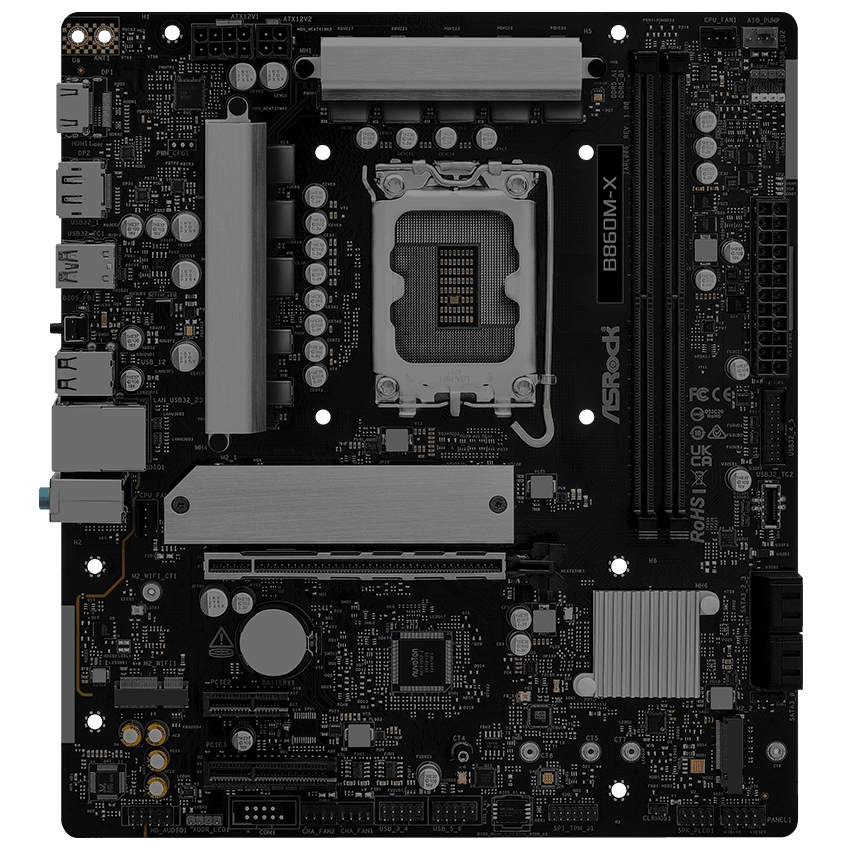

High Speed M.2 Solution

【RE】HyperM.2(BlazingM2 + Gen4x4)
【RE】HyperM.2(BlazingM2 + Gen4x4)【RE】HyperM.2(BlazingM2 + Gen4x4)
【RE】HyperM.2(BlazingM2 + Gen4x4)【RE】HyperM.2(BlazingM2 + Gen4x4)
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Cooling

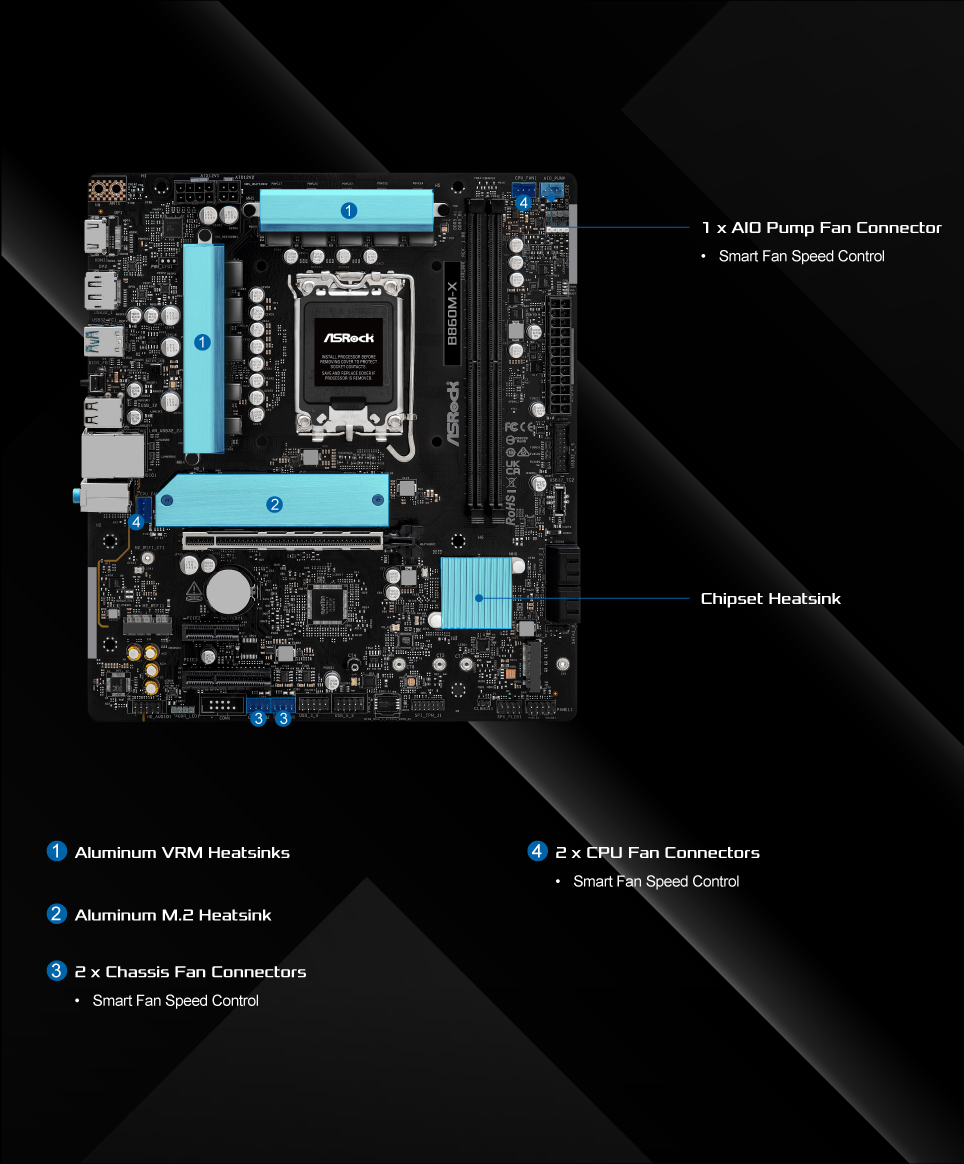

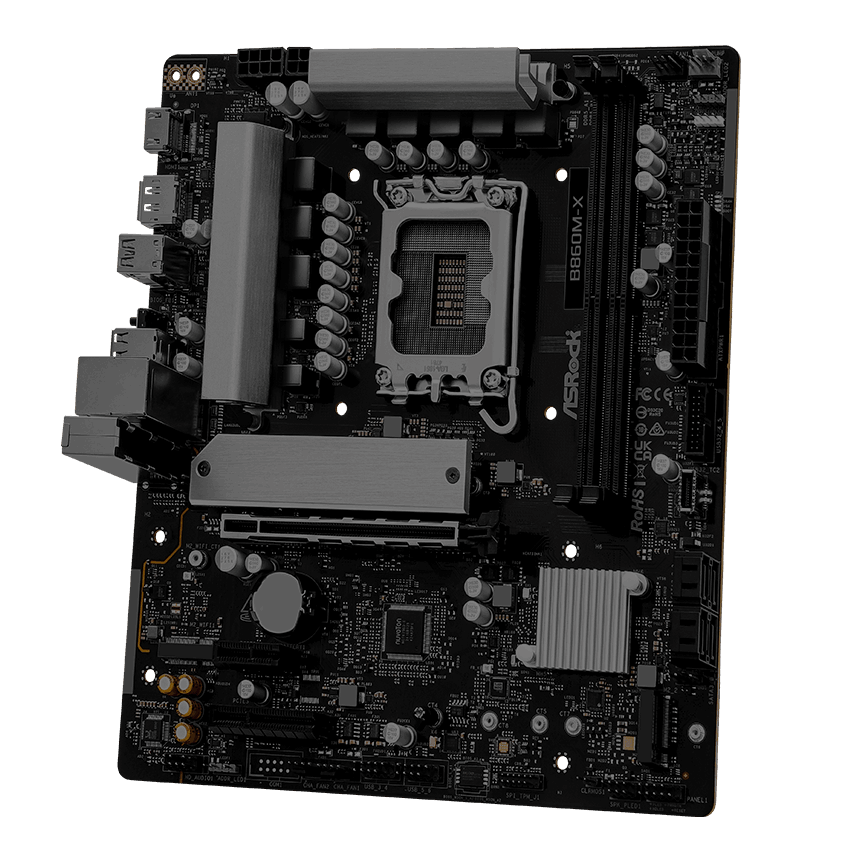

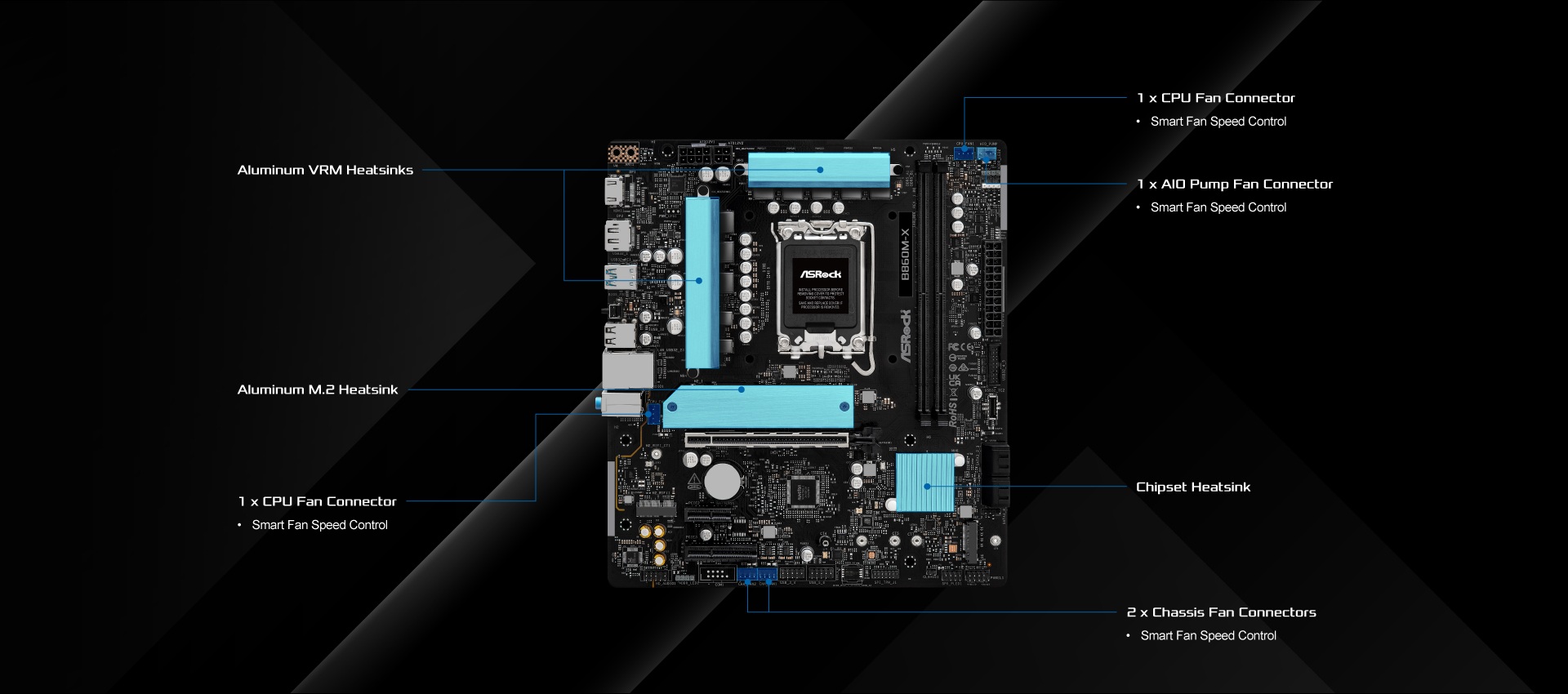

Intelligent Cooling Design

【RE】Cooling3(Alum+Fan+PWM)-notPG
【RE】Cooling3(Alum+Fan+PWM)-notPG【RE】Cooling3(Alum+Fan+PWM)-notPG【RE】Cooling3(Alum+Fan+PWM)-notPG
【RE】Cooling3(Alum+Fan+PWM)-notPG【RE】Cooling3(Alum+Fan+PWM)-notPG【RE】Cooling3(Alum+Fan+PWM)-notPG
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Connectivity

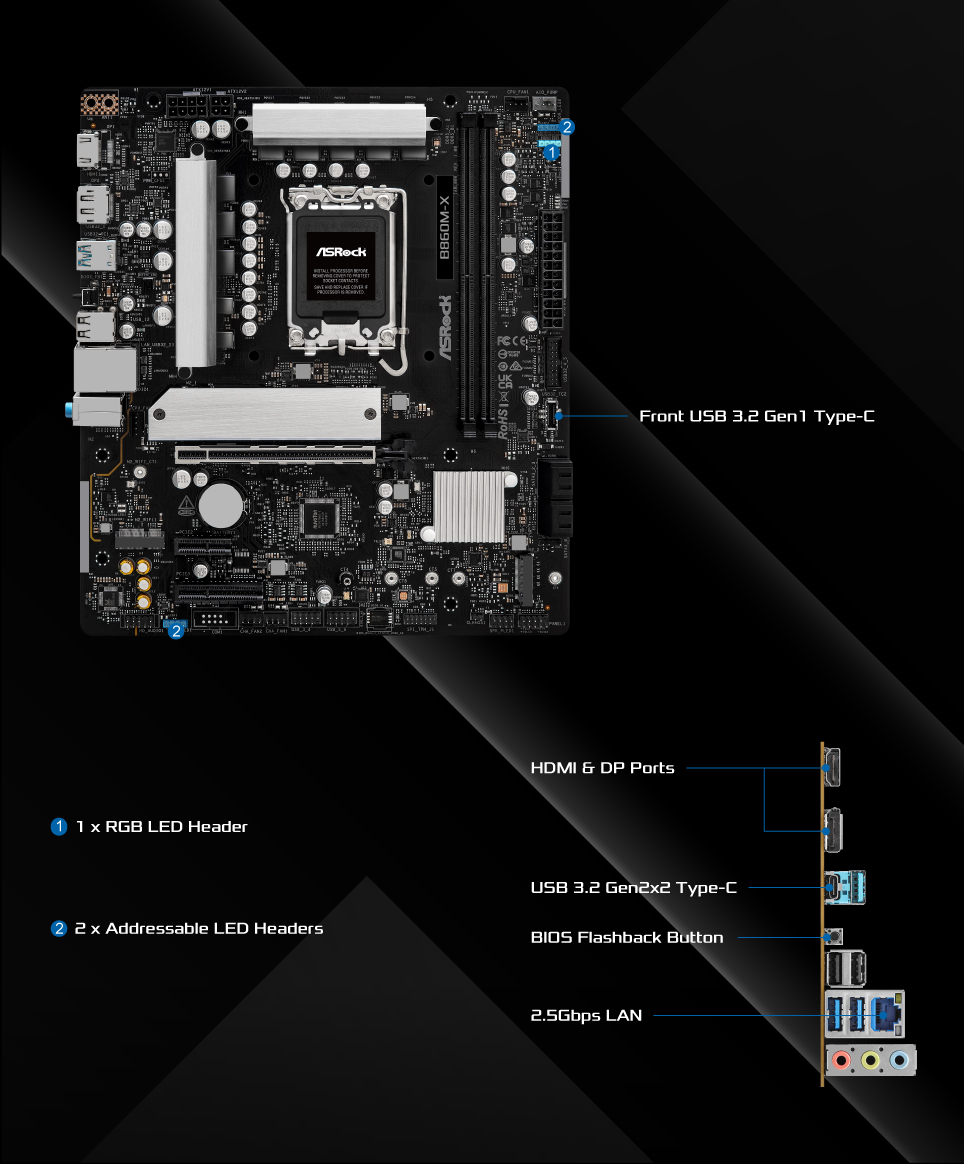

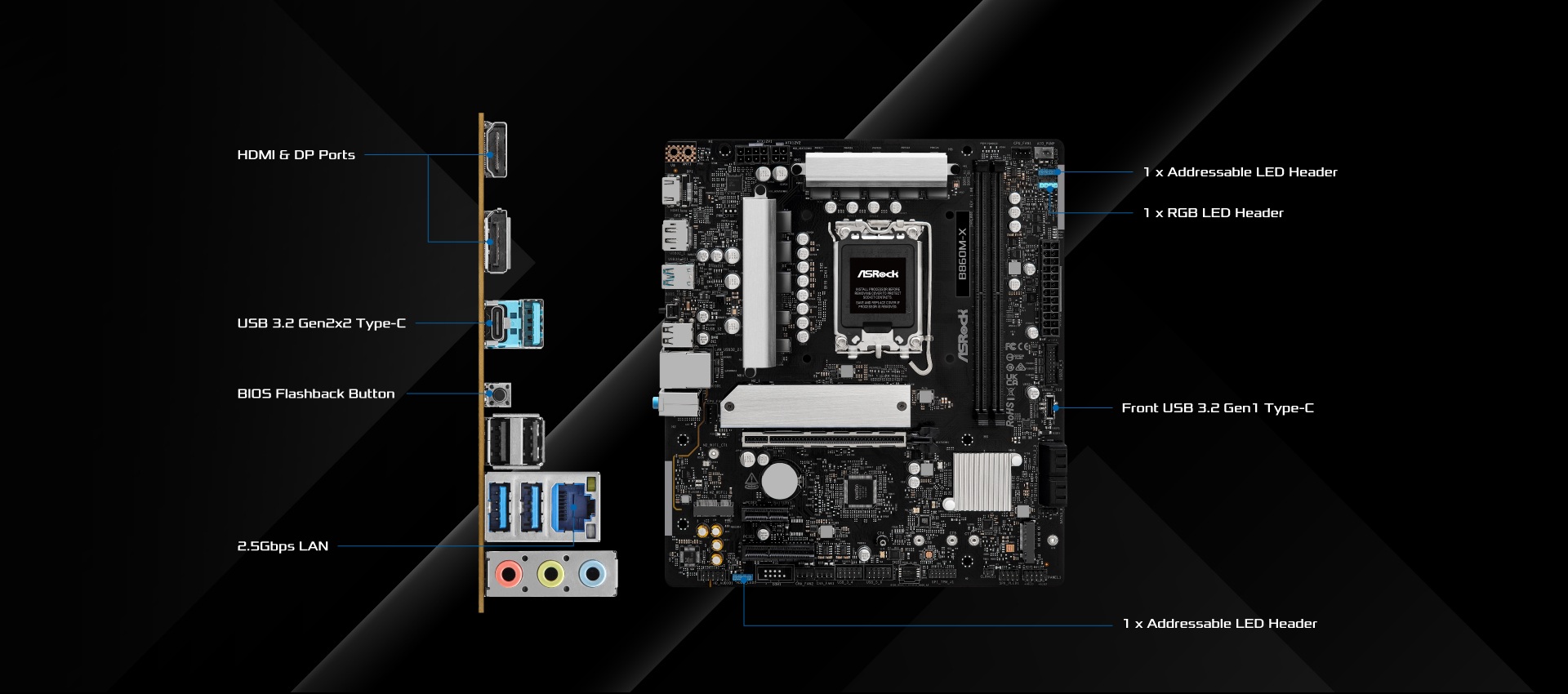

Abundant USB

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
【RE】Abundant USB(Gen2x2 T-C & FrGen1 T-C) 【RE】Abundant USB(Gen2x2 T-C & FrGen1 T-C)
Stylish Design

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
DIY Friendly

EZ Setting

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1 : Install Auto Driver Installer

step2 : Update drivers needed

step3 : Done!

【RE】EZ (ADI+BIOS) 【RE】EZ (ADI+BIOS)

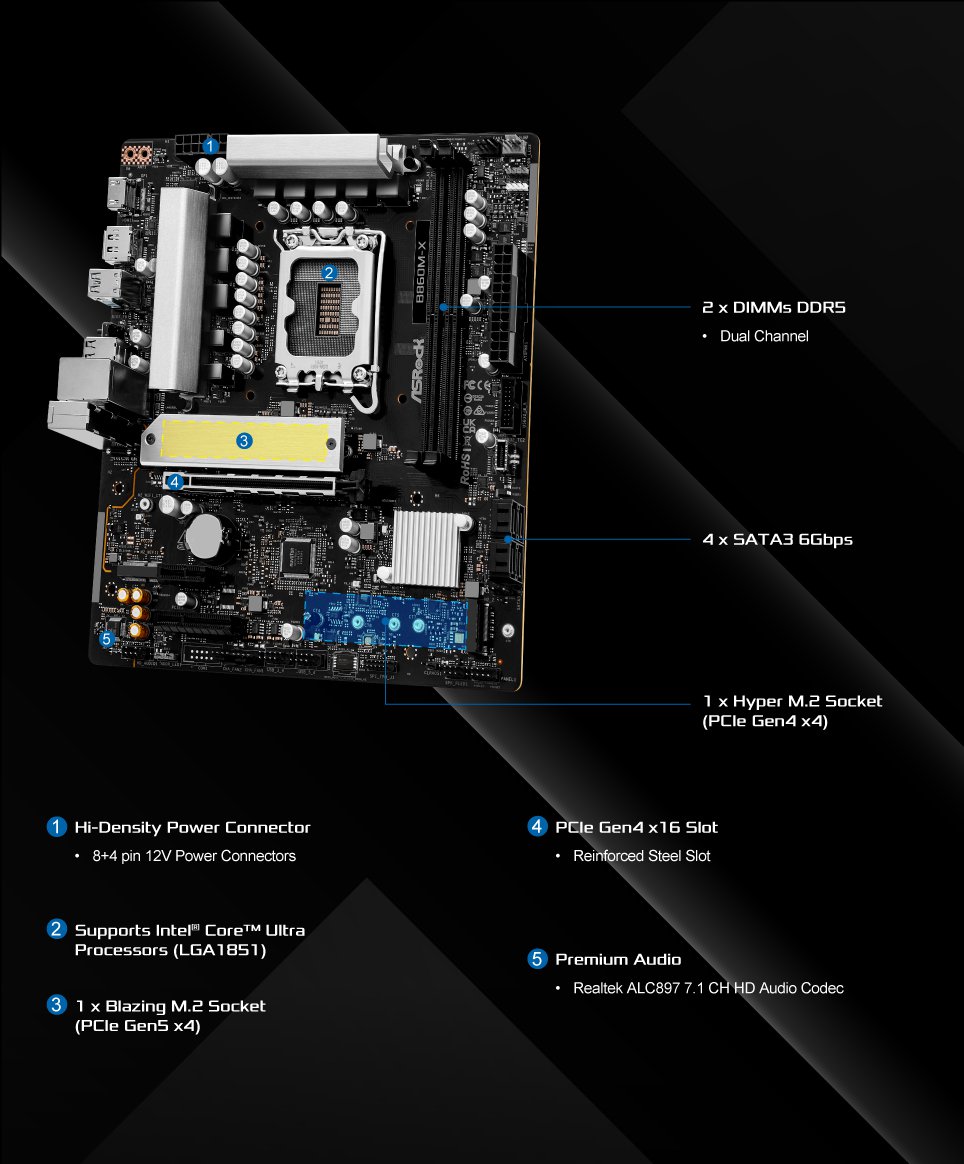

B860M-X
  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • 7+1+1+1+1 Power Phase
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 9066+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
    1 Blazing M.2 (PCIe Gen5x4)
    1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2x2 Type-C (Rear)
    1 USB 3.2 Gen1 Type-C (Front)
    5 USB 3.2 Gen1 (3 Rear, 2 Front)
    6 USB 2.0 (2 Rear, 4 Front)
  • Realtek 2.5G LAN
  • Supports BIOS Flashback
