X600TM-ITX

Thin Mini-ITX
Supports AMD AM5 Socket CPUs (Ryzen™ 9000, 8000 and 7000 Series Processors, up to 65W)
Supports Intel^® CPU Cooler
Supports Dual DDR5 6400+(OC)MHz memory, Max. 96GB
Multi Video Outputs: Dual HDMI, one DisplayPort, one LVDS

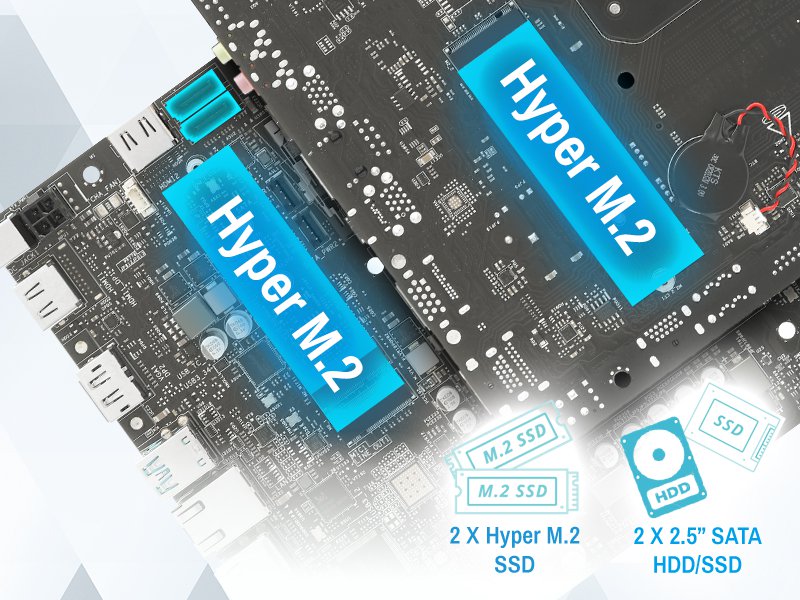

Quad Storage Devices: Dual Hyper M.2 Socket (PCIe Gen4 x4 & SATA 6Gb), Dual SATA 6Gb
Abundant USB Ports:
1 USB 3.2 Gen1 Type-C port,
1 x USB 3.2 Gen2 Type-A Port,
2 x USB 3.2 Gen1 Ports

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

Opt for a powerful yet compact desktop setup to create a clutter-free workspace, perfect for handling daily office tasks, presentations, and various productivity software.

Build a compact and efficient computer for students, providing a powerful tool for learning, research, and completing assignments.

Integrate a thin mini ITX motherboard into a smart mirror for multimedia applications and smart home control. It's ideal for checking news, weather, schedules, and fitness routines—a versatile all-in-one solution for modern living.

Transform your living room into a multimedia hub with seamless 4K streaming, ultra-fast storage, and exceptional audio capabilities.

CPU
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- Supports CPU up to 65W
- 4+1+1 Power Phase design
CPU Cooler
- Supports CPU coolers with Intel^® LGA1700 (78mm x 78mm) mounting holes*

*Please note that a CPU cooler compatible with proprietary AMD socket backplate is required.
Chipset
- AMD X600
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 SO-DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
- Max. capacity of system memory: 96GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- Three graphics output options: HDMI, LVDS, D-Sub ports
- 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz (HDMI x 1 port (Rear) )
- 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz (HDMI x 1 port (Internal) )
* (Optional) 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz (Rear DP1)
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz (Rear DP2)
* (Optional) 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz
- 1 x LVDS, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
- Realtek ALC269 Audio Codec
- 1 x MIC IN
- 1 x Line out
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
* (Optional) Realtek RTL8111FP
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

*Supports NVMe SSD as boot disks
Connector
* (Optional) 1 x Onboard TPM 2.0 (INFINEON SLB9672 or NUVOTON NPCT750AADYX)
- 1 x Chassis Intrusion Header
- 1 x Panel Voltage Selection Header
- 1 x Backlight Inverter Voltage Selection Header
- 1 x FPD Brightness Header
- 1 x Panel Off Header
- 1 x LVDS Connector
- 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- 1 x 4 pin 19V Power Connector
* (Optional) 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x Front Panel Audio Connector
- 1 x Internal Speaker Header (4-Pin)
- 1 x Digital MIC Header
- 2 x SATA Power Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x DisplayPort 1.4 (DP2)

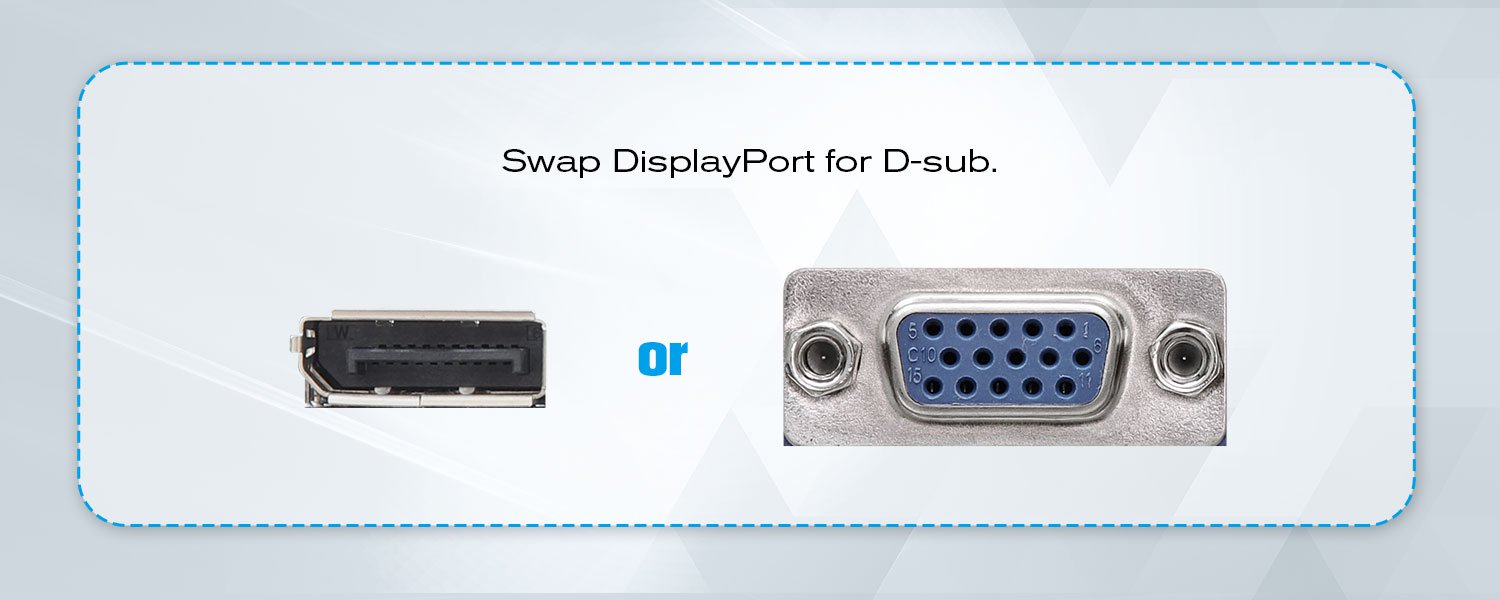

* (Optional) 1 x D-Sub Port
- 1 x HDMI Port: HDMI2 (Internal)
- 1 x HDMI Port: HDMI1 (Rear)

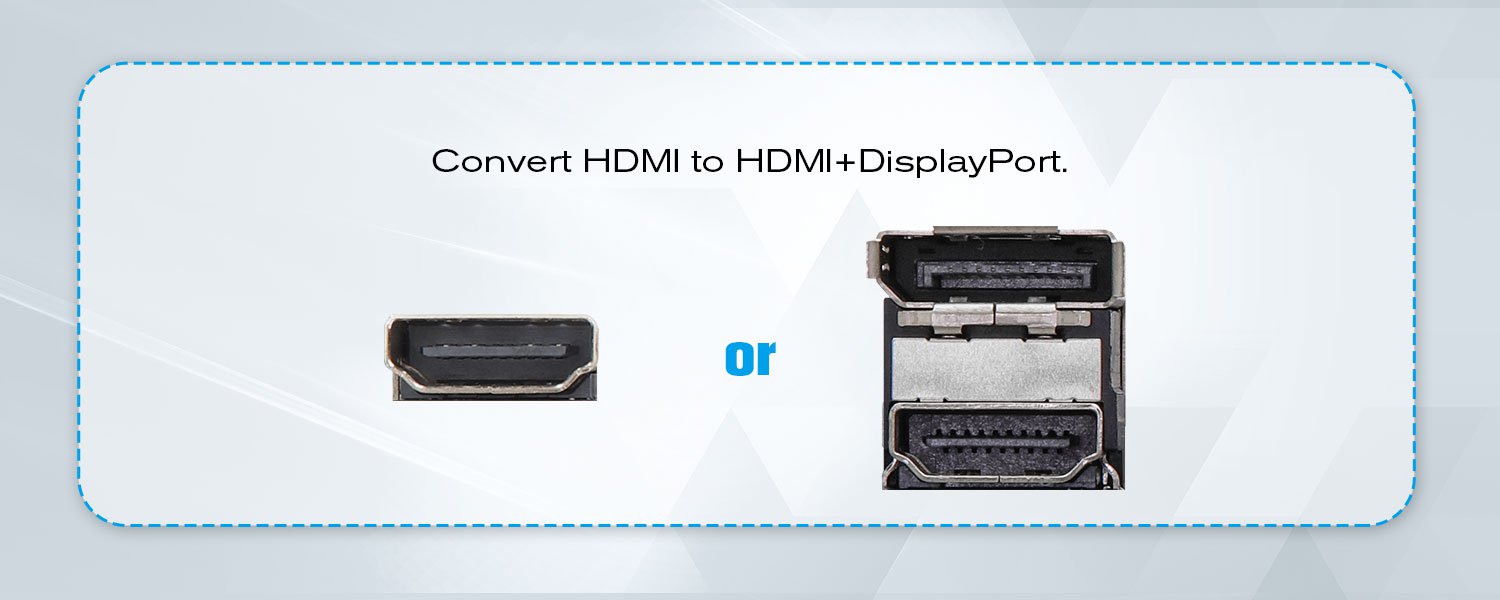

* (Optional) 1 x DisplayPort 1.4 (DP1) + 1 x HDMI Port: HDMI1 (Rear)
- 1 x USB 3.2 Gen2 Type-A Port (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (Supports ESD Protection)
* (Optional) 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Support ESD Protection)

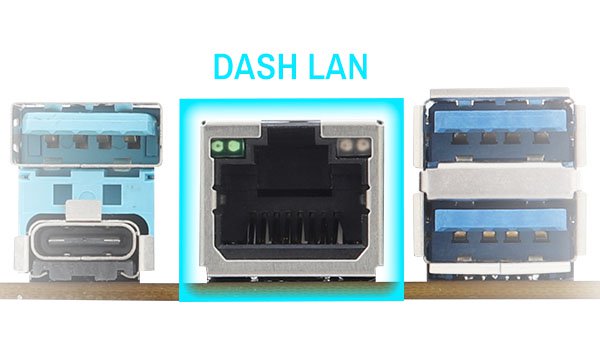

- 1 x RJ-45 LAN Port with LED
- HD Audio Jacks: Line out / Microphone
Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
Accessories
- I/O Shield (Optional)
- 1 x SATA Data Cable (Optional)
- 1 x SATA Power Cable (Optional)
- 2 x Screws for M.2 Sockets
- 1 x Screw for WiFi Module
- 1 x Standoff for M.2 Socket
Hardware Monitor
- CPU Temperature Sensing
- CPU Fan Tachometer
- CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU Fan Multi-Speed Control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
- Solid Capacitor design
OS
- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Description	Language	Download
User Manual	English	Global	China
Quick Installation Guide	English	Global	China

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

ASRock

X600TM-ITX

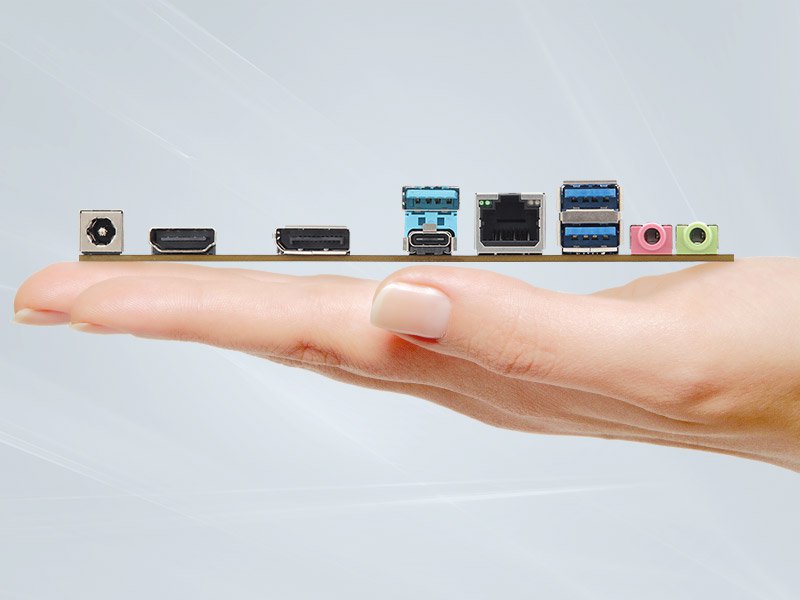

Unleash Power with the First AM5 Thin Mini ITX Motherboard

Unleashing Versatility: Powerful X600TM-ITX Applications

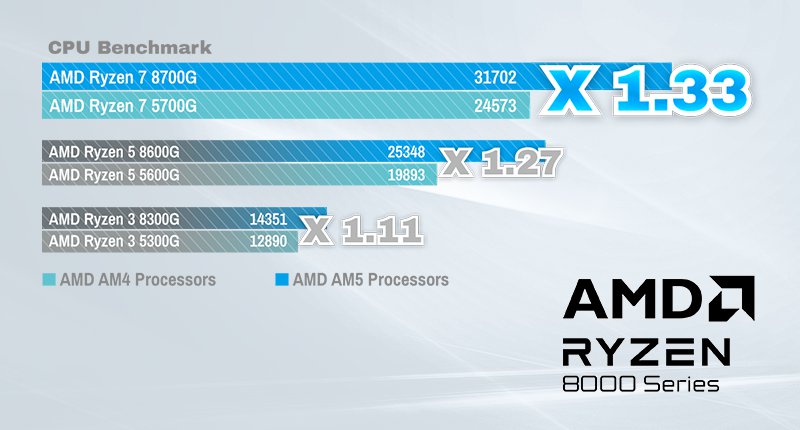

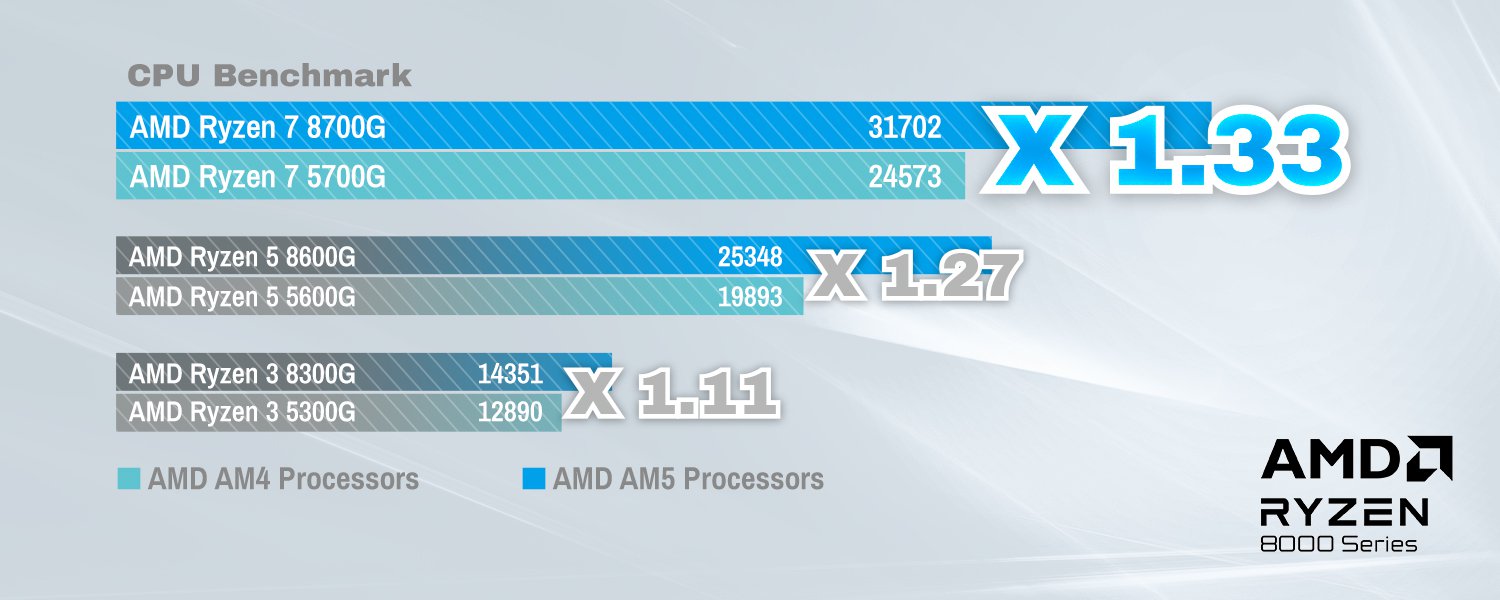

Elevate Your Performance with X600TM-ITX

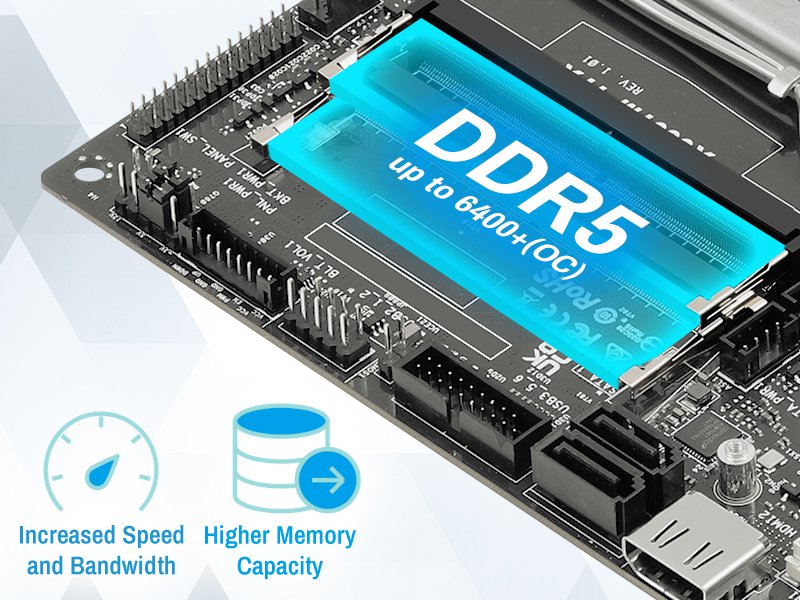

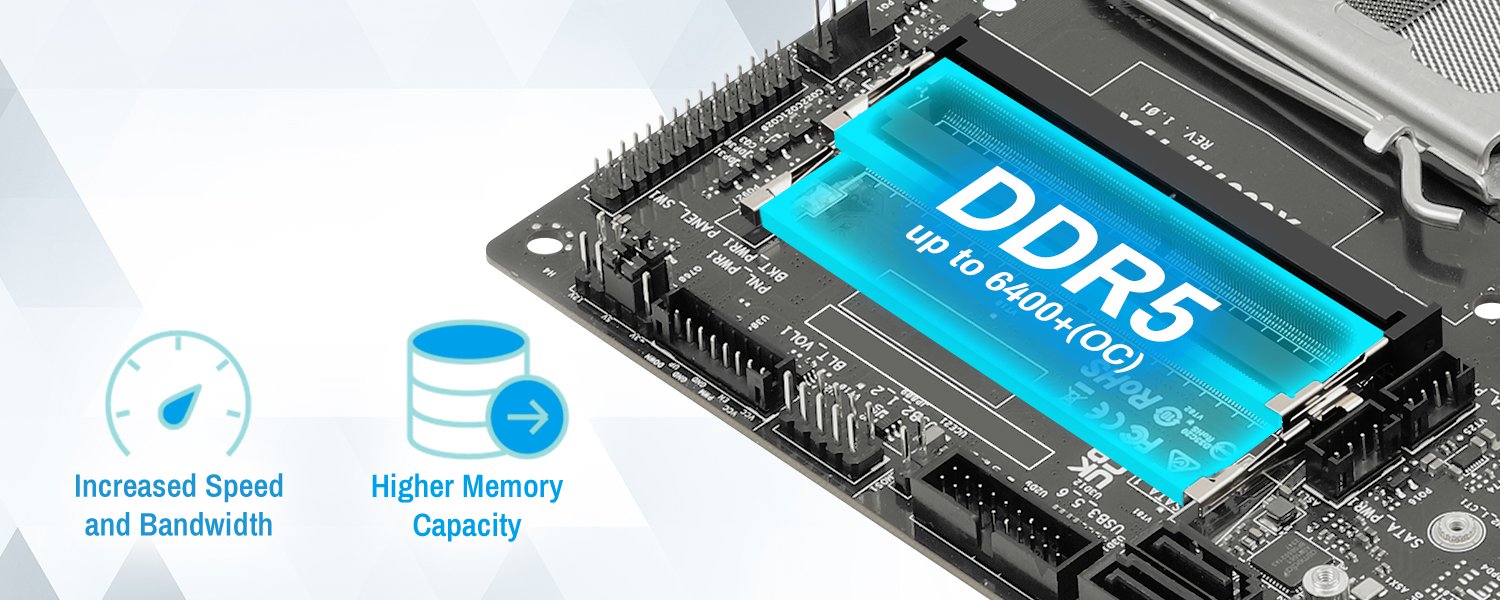

Lightning-Fast Memory: Dual Channel DDR5 Technology Up to 96GB

Versatile Display Options: Quad Display Support

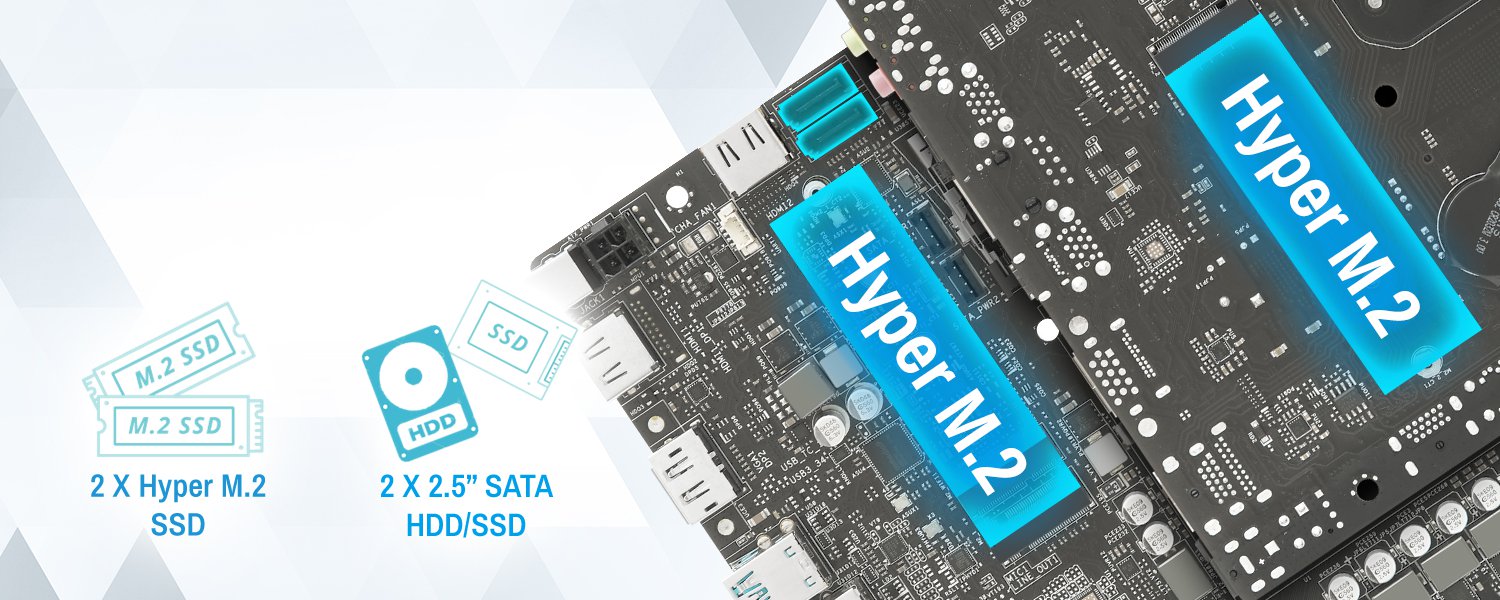

Expandable Storage Solutions: Support for Four Storage Devices

Rich Connectivity: Abundant USB Ports

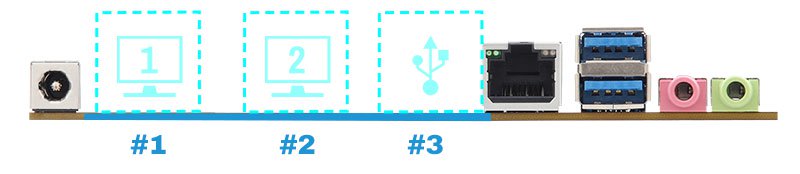

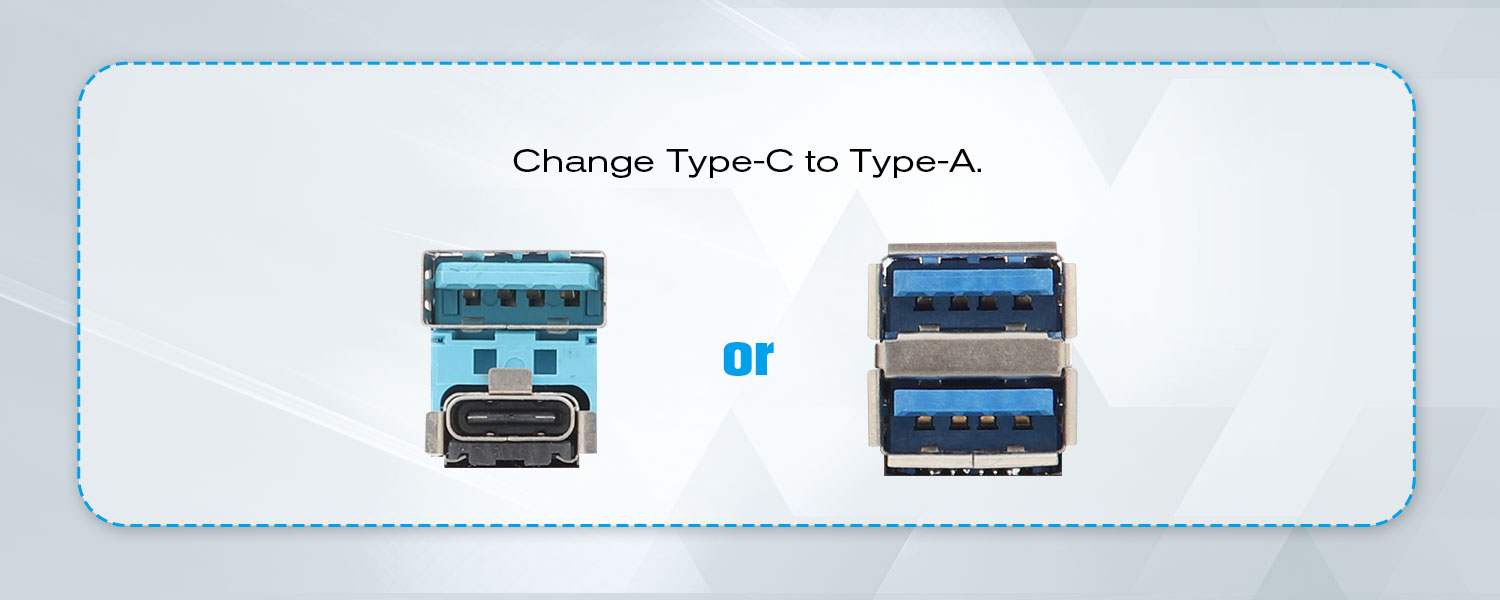

Flexible I/O Design: Up to 8 Configuration Options

Enhance Your Security and Management with X600TM-ITX

DASH LAN (optional)

TPM 2.0 (optional)
