• Gaming Armor
  Power
  - Hi-Density Power Connectors (24 pin for Motherboard, 8+4 pin for Motherboard, 6 pin for PCIe Slot)
  - IR Dr. MOS
  Memory
  - 15μ Gold Contact in DIMM Slots
  VGA Card
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
  Internet
  - AQUANTIA^® / Marvell 10G LAN
  - Intel^® LAN
  Cooling
  - XXL Aluminum Alloy Heatsink
  - 8 Layer PCB
  - 2oz Copper PCB
  - Heat Pipe Design
  Audio
  - Creative Sound Blaster™ Cinema 3
• Egyéni tuljadonságok
  ASRock USB 3.1 Gen2
  - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
  - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
  ASRock Super Alloy
  - XXL Aluminum Alloy Heatsink
  - Premium 60A Power Choke
  - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  - IR3555M Dr. MOS 60A
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - I/O Armor
  - Matte Black PCB
  - High Density Glass Fabric PCB
  AQUANTIA^® / Marvell 10G LAN
  Intel^® 802.11ac WiFi
  ASRock Steel Slots
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Ultra USB Power
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• Processzor
  - Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
  - IR Digital PWM
  - 11 Power Phase design
  - Supports ASRock Hyper BCLK Engine III
• Chipset
  - AMD X399
• Memória
  - Quad Channel DDR4 Memory Technology
  - 8 x DDR4 DIMM Slots
  - Supports DDR4 3600+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory(U-DIMM)
  - Max. capacity of system memory: 128GB*
  - 15μ Gold Contact in DIMM Slots



  *Az operációs rendszer korlátai miatt a tényleges memóriaméret kevesebb lehet 4 GB-nál, mert a rendszer 32 bites Windows^® operációs rendszer alatt saját használatra fenntartja egy részét.. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
• Videokártyák
  - n/a
• Audio
  - 7.1 CH HD Audio with Content Protection támogatás (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - TI^® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB Isolate Shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - RGB LED
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports Creative Sound Blaster™ Cinema 3
• LAN
  1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA^® / Marvell AQC107):
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports PXE
  2 x Intel^® Gigabit LAN 10/100/1000 Mb/s (2 x Intel^® I211AT):
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Dual LAN with Teaming*
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE



  *A Teaming funkció Windows^® 10 RS2, RS3 és RS4 rendszeren támogatott.
• Wireless LAN
  - Intel^® 802.11ac WiFi Module (Free Bundle)
  - Supports IEEE 802.11a/b/g/n/ac
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 433Mbps
  - Supports Bluetooth 4.2 / 3.0 + High speed class II
• Slotok
  - 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))*
  - 1 x PCI Express 2.0 x1 Slot
  - Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
  - Supports NVIDIA^® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™
  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)



  *NVMe SSD-k támogatása rendszerindító lemezként
• Tárolás
  - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  - 1 x U.2 Connector**



  *NVMe SSD-k támogatása rendszerindító lemezként
  Supports ASRock U.2 Kit

  **If M2_1 is plugged, U.2 Connector will be disabled.
• Csatlakozó
  - 1 x COM Port Header
  - 1 x Power LED and Speaker Header

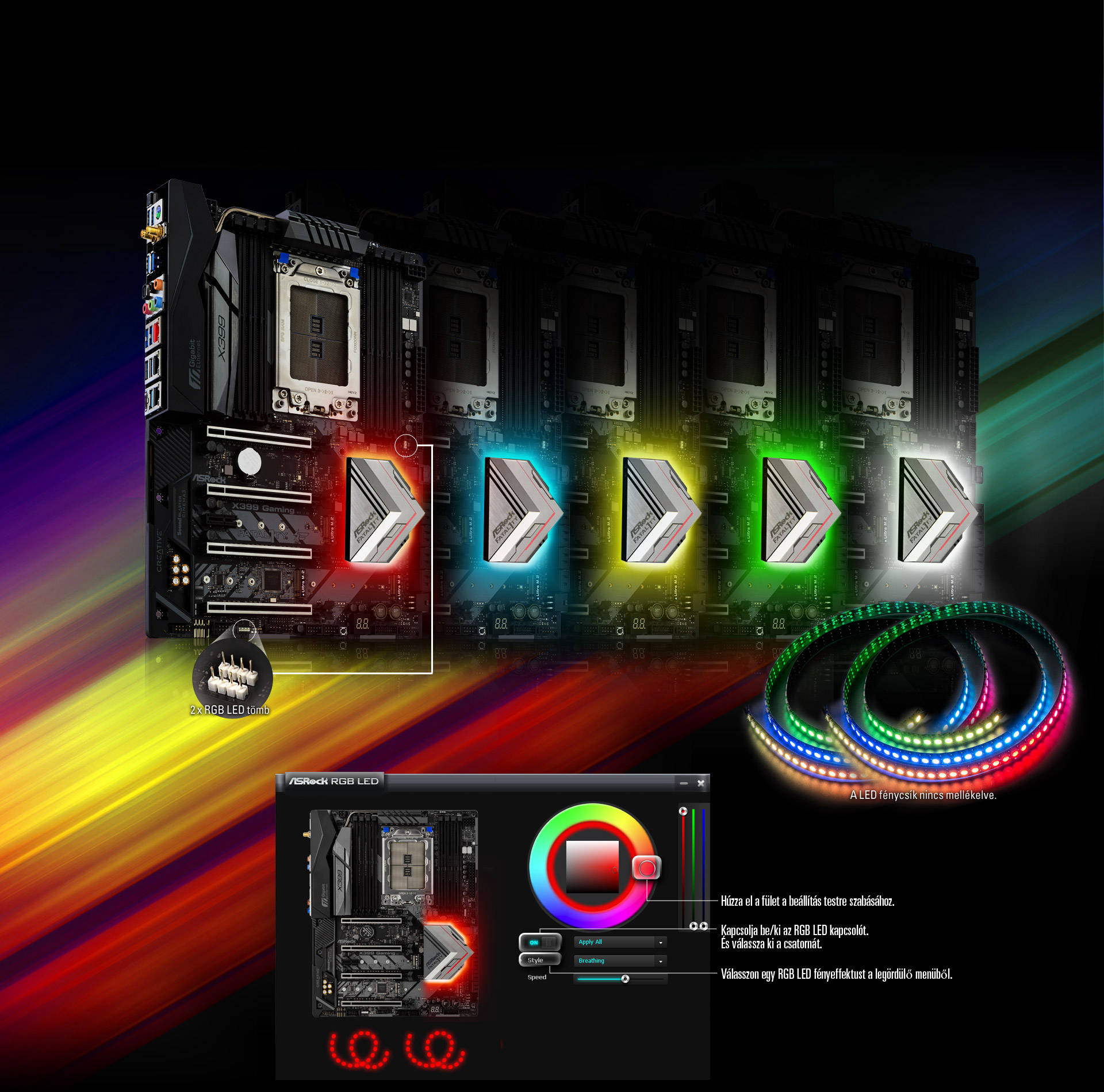

  - 2 x RGB LED Headers*
  - 1 x CPU Fan Connector (4-pin)**
  - 1 x CPU opcionális/Vízszivattyú ventilátor csatlakozó (4-pin) (Smart Fan Speed Control)***
  - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
  - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
  - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)*****
  - 1 x Right Angle Front Panel Audio Connector*****
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
  - 1 x Clear CMOS Switch
  - 1 x Dr. Debug with LED
  - 1 x Power Switch with LED
  - 1 x Reset Switch with LED
  - 1 x CPU Xtreme OC Switch



  *Minden tömb támogatja az akár 12 V/3 A, 36 W teljesítményű LED csíkokat

  **A CPU ventilátor csatlakozó legfeljebb 1 A (12 W) áramfelvételű CPU ventilátort támogat.

  ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

  ****Az opcionális ház/vízszivattyú ventilátor legfeljebb 1,5 A (18 W) teljesítményű ventilátort támogat.
  CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

  ******Connect the audio device to either one of the audio connectors.
• Hátsó panel I/O
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x Optical SPDIF Out Port
  - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  - 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x BIOS Flashback Switch
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



  *Ultra USB Power is supported on USB3_6 port.
  1 x Tartalmaz Fatal1ty Mouse Port (USB 3.1 Gen1) csatlakozót
• Szoftver és UEFI
  Software
  - ASRock F-Stream
  - ASRock RGB LED
  - ASRock Key Master
  - ASRock APP Charger
  UEFI
  - ASRock Full HD UEFI
  - ASRock Instant Flash
  - ASRock Crashless BIOS
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Kiegészítők
  - I/O Shield
  - 4 x SATA Data Cables
  - 1 x ASRock 3-Way SLI™ Bridge Card
  - 1 x ASRock 4-Way SLI-S111 Bridge Card
  - 1 x ASRock SLI_HB_Bridge_3S Card
  - 2 x ASRock WiFi 2.4/5 GHz Antennas
  - 3 x Screws for M.2 Sockets
• Hardware Monitor
  - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
• Form Factor
  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 8 Layer PCB
  - 2oz Copper PCB
• Operációs rendszer
  - Microsoft^® Windows^® 10 64-bit
• Tanusítványok
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

Fenntartjuk a jogot a specifikációk előzetes bejelenetés nélküli megváltoztatására. A márka- és terméknevek a tulajdonosaik bejegyzett védjegyei. Az eredeti termék-specifikációtól eltérő konfigurációra nem vonatkozik garancia.

A fenti felhasználói felület képe csak példa. A tényleges felhasználói felület változhat a frissített szoftververzióval.
