• Unique Feature
  Superb Productivity
  - Dual Channel DDR5
  Rock-Solid Durability
  - 6+1+1 Power Phase, 50A Dr.MOS for VCore
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker
• CPU
  - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors**



  *Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/)
  The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
• Chipset
  - AMD A620
• Memory
  - Dual Channel DDR5 Memory Technology
  - 2 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
  - Max. capacity of system memory: 128GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



  *Please refer to Memory Support List for more information.
• BIOS
  - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
• Slots
  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

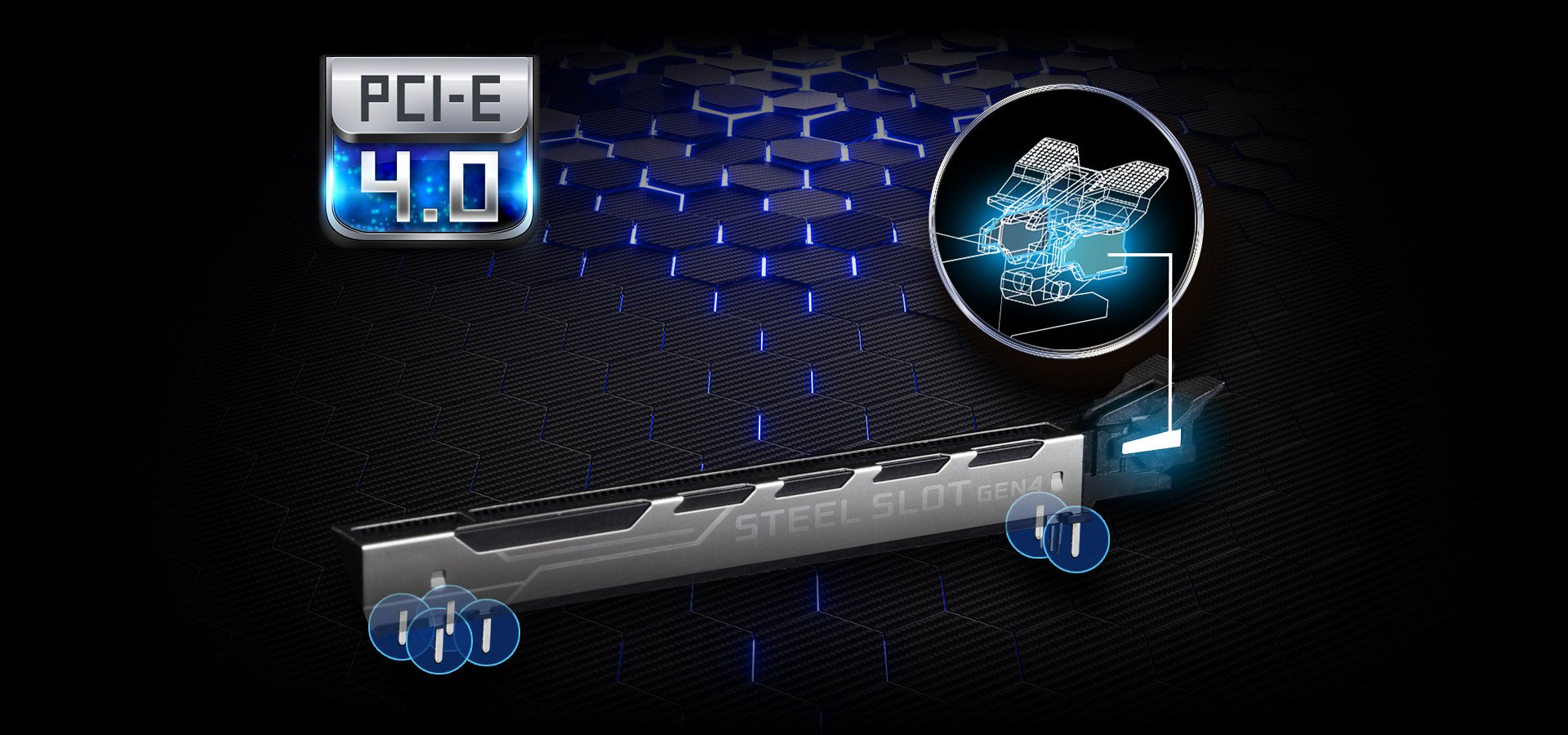

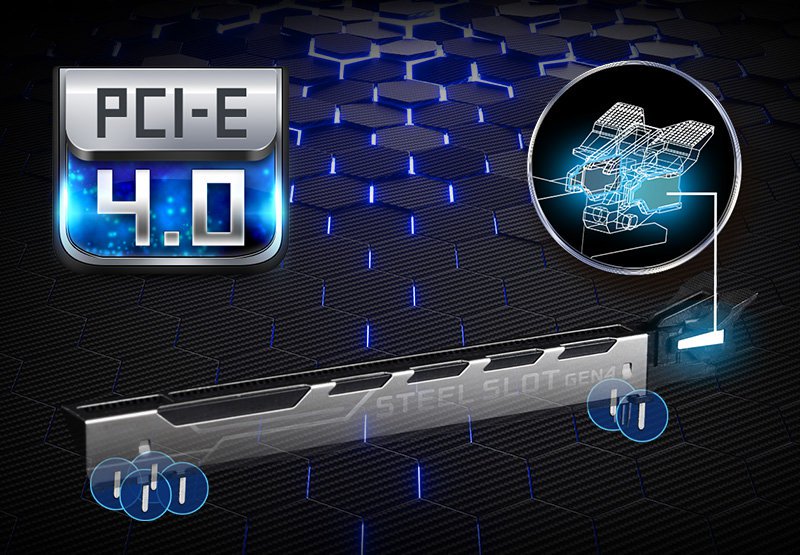

  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 4 x SATA3 6.0 Gb/s Connectors



  *Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*



  *Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  - 1 x USB 3.2 Gen1 Type-C (Rear)
  - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)



  *All USB ports support ESD Protection
• Connector
  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)



  *CPU_FAN1 supports the fan power up to 1A (12W).

  **CHA_FAN1~3/WP support the fan power up to 2A (24W).
  CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  - 2 x Antenna Mounting Points
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen1 Type-C Port
  - 3 x USB 3.2 Gen1 Type-A Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x BIOS Flashback Button
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 3 x Screws for M.2 Sockets
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
• OS
  - Microsoft Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
