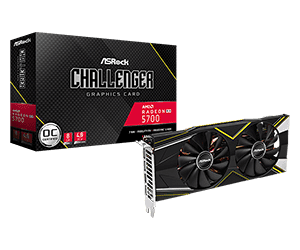

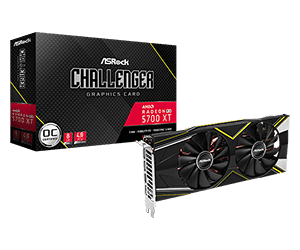

| Model |  Radeon RX 5700 Challenger D 8G OC |  Radeon RX 5700 XT Challenger D 8G OC |
|---|
| Graphics Engine | - AMD Radeon™ RX 5700 | - AMD Radeon™ RX 5700 XT |
| Bus Standard | - PCI® Express 4.0 | - PCI® Express 4.0 |
| DirectX | - 12 | - 12 |
| OpenGL | - 4.6 | - 4.6 |
| Memory | - GDDR6 8GB | - GDDR6 8GB |
| Engine Clock | - Boost Clock: Up to 1750 MHz Game Clock: Up to 1675 MHz Base Clock: 1515 MHz | Boost Clock: Up to 1905 MHz Game Clock: Up to 1795 MHz Base Clock: 1650 MHz |
| Stream Processors | - 2304 | - 2560 |
| Memory Clock | - 14 Gbps | - 14 Gbps |
| Memory Bus | - 256-bit | - 256-bit |
| Resolution | - Digital Max Resolution: 8K HDR 60 Hz | - Digital Max Resolution: 8K HDR 60 Hz |
| Interface | - 1 x HDMI 2.0b - 3 x DisplayPort 1.4 with DSC 1.2a | - 1 x HDMI 2.0b - 3 x DisplayPort 1.4 with DSC 1.2a |
| HDCP | - Yes | - Yes |
| Multi-view | - 4 | - 4 |
| Power Connector | - 2 x 8-pin | - 2 x 8-pin |
| Accessories | - 1 x Quick Installation Guide | - 1 x Quick Installation Guide |
| Dimensions | - 281 x 137 x 42mm | - 281 x 137 x 42mm |
