S330

Intel^® Dual Core Atom™ 330
Intel^® 945GC + ICH7
Small (2.5L)
Silent (acoustic below 30 dB)
Stylish (High gloss outlook)
Energy Star 5.0 level
(Low power consumption)
ASRock OC Tuner (Overclocking)
ASRock Instant Boot

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Specification
Support

CPU
- Intel^® Atom™ 330 1.6GHz (Dual core)
Memory
- 1GB DDR2 memory support up to 4GB* (2 x DIMM Slots, Dual channel)

*Due to the CPU and chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32 / 64-bit OS.
Chipset
- Intel^® 945GC + ICH7
Graphics
- Intel^® GMA950, support DirectX9 3D Hardware Acceleration
Audio
- 5.1 CH HD Audio
HDD
- 2.5" HDD 160GB
ODD
- DVD Super Multi (Slim type)
LAN
- Gigabit LAN

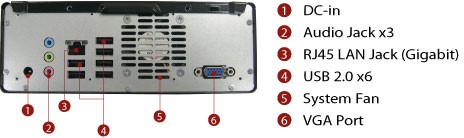

Rear I/O
- 1 x D-Sub VGA, 6 x USB 2.0
System Acoustic
- Below 30dB
Volume (liters)
- 2.5L
Weight
- 1.7Kg
Power Unit
- 65W/19V Adapter
Dimension
- 195mm (W) x 70mm (H) x 186mm (L)
OS
- Microsoft^® Windows^® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Description	Language	Download
User Manual	English	Global	China
Quick Installation Guide	Multi-Language	Global	China

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
