• Unique Feature
  ASRock Super Alloy
  - XXL Aluminum Alloy Heatsink
  - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  - Dual-Stack MOSFET (DSM)
  - NexFET™ MOSFET
  - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
  - Sapphire Black PCB
  ASRock Ultra M.2 (PCIe Gen3 x4)
  ASRock HDD Saver Technology
  ASRock Full Spike Protection
  ASRock Cloud
  ASRock APP Shop
• CPU
  - Supports 5^th Generation Intel^® Core™ i7 / i5 / i3 / Pentium^® / Celeron^® Processors (Socket 1150)
  - Supports New 4^th and 4^th Generation Intel^® Xeon^® / Core™ i7 / i5 / i3 / Pentium^® / Celeron^® Processors (Socket 1150)
  - Digi Power design
  - 12 Power Phase design
  - Supports Intel^® Turbo Boost 2.0 Technology
  - Supports Intel^® K-Series unlocked CPUs
  - Supports ASRock BCLK Full-range Overclocking
• Chipset
  - Intel^® Z97
• Memory
  - Dual Channel DDR3/DDR3L Memory Technology
  - 4 x DDR3/DDR3L DIMM Slots
  - Supports DDR3/DDR3L 3200+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 32GB*
  - Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2
  - 15μ Gold Contact in DIMM Slots



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
  - Supports Secure Backup UEFI Technology
  - ACPI 1.1 Compliant wake up events
  - SMBIOS 2.3.1 Support
  - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
• Graphics
  - Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 4400/4600
  - Pixel Shader 5.0, DirectX 11.1
  - Max. shared memory 512MB*
  - Three graphics output options: DVI-I, HDMI and DisplayPort 1.2
  - Supports Triple Monitor
  - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
  - Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
  - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with DVI-I, HDMI and DisplayPort 1.2 Ports
  - Supports Full HD 1080p Blu-ray (BD) playback with DVI-I, HDMI and DisplayPort 1.2 Ports



  *The size of maximum shared memory may vary from different operating systems.

  **Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  ***Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.

  ****Intel^® InTru™ 3D is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.
• Audio

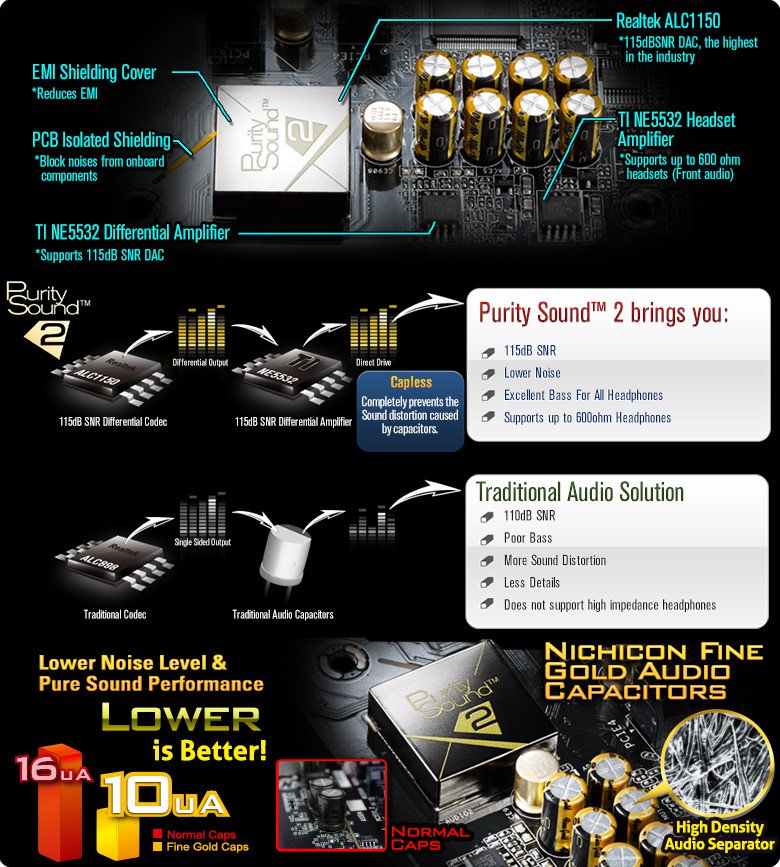

  - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection (ASRock Full Spike Protection)

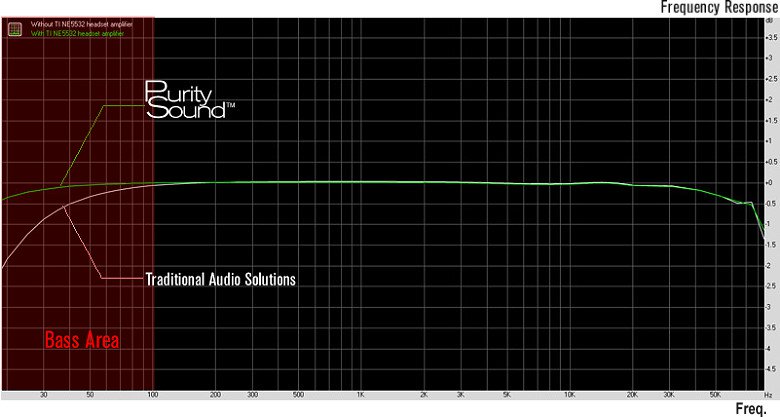

  - Supports Purity Sound™ 2
  - Nichicon Fine Gold Series Audio Caps
  - 115dB SNR DAC with differential amplifier
  - TI^® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
  - Direct Drive Technology
  - EMI shielding cover
  - PCB isolate shielding
  - Supports DTS Connect
• LAN
  - 1 x Intel^® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
  - 1 x Realtek RTL8111GR (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
  - Supports Intel^® Remote Wake Technology (on Intel^® I218V)
  - Supports Wake-On-WAN (on Realtek RTL8111GR)
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  - Supports LAN Cable Detection (on Realtek RTL8111GR)
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))
  - 1 x PCI Express 2.0 x16 slot (PCIE5: x2 mode)
  - 2 x PCI Express 2.0 x1 Slots
  - 1 x mini-PCI Express Slot
  - Supports AMD Quad CrossFireX™ and CrossFireX™
  - Supports NVIDIA^® Quad SLI™ and SLI™
  - 15μ Gold Contact in VGA PCIe Slot (PCIE2)



  *If M2_1 slot is occupied, PCIE2 slot will run at x8 mode, and PCIE4 slot will run at x4 mode.

  **mini-PCI Express slot is shared with PCIE3 slot.
• Storage
  - 6 x SATA3 6.0 Gb/s Connectors by Intel^® Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 13 and Intel^® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
  - 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology (SATA3_A4 connector is shared with the eSATA port)
  - 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket (M2_2))*
  - 1 x eSATA Connector by ASMedia ASM1061, supports NCQ, AHCI and Hot Plug

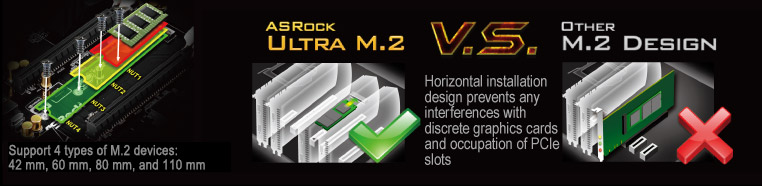

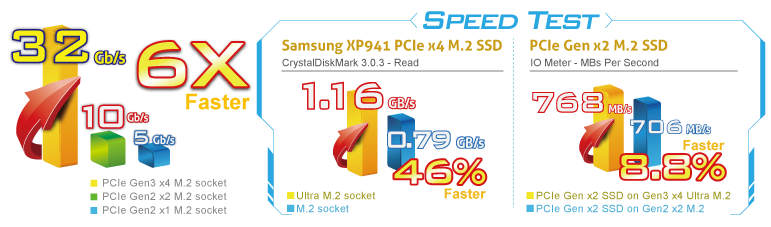

  - 1 x Ultra M.2 Socket (M2_1), supports M Key M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  - 1 x M.2_SSD (NGFF) Socket 3 (M2_2), supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)



  *Support to be announced.
  ** The M.2 Socket (M2_2), SATA3_4, SATA3_5 and SATA Express share lanes. If either one of them is in use, the others will be disabled.
• Connector
  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Power LED Header
  - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
  - 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
  - 1 x Power Fan Connector (3-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x HDD Saver Connector
  - 1 x PCIe Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt™ AIC Connector*
  - 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x Vertical Type A USB 2.0
  - 2 x USB 3.1 Gen1 Headers (support 4 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x Dr. Debug with LED
  - 1 x Power Switch with LED
  - 1 x Reset Switch with LED
  - 1 x BIOS Selection Switch



  *Please update to the latest BIOS to support Thunderbolt™ technology.
• Rear Panel I/O
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x DVI-I Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.2
  - 1 x Optical SPDIF Out Port
  - 1 x eSATA Connector
  - 2 x USB 3.1 Gen1 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection))
  - 4 x USB 3.1 Gen1 Ports (Intel^® Z97) (Supports ESD Protection (ASRock Full Spike Protection))
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Switch
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock A-Tuning
  - ASRock Disk Health Report
  - ASRock USB Key
  - ASRock APP Charger
  - ASRock XFast RAM
  - ASRock Restart to UEFI
  UEFI
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock UEFI Guide
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Crashless BIOS
  - ASRock OMG (Online Management Guard)
  - ASRock UEFI System Browser
  - ASRock UEFI Tech Service
  - ASRock Dehumidifier
  - ASRock Easy RAID Installer
  - ASRock Easy Driver Installer
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional
• Accessories
  - 1 x ASRock SLI_Bridge_2S Card
  - Quick Installation Guide, Support CD, I/O Shield
  - 4 x SATA Data Cables
  - 1 x HDD Saver Cable
  - 2 x Screws for M.2 Sockets
  - 1 x Screw for mini-PCIe Slot
• Hardware Monitor
  - CPU, Chassis temperature sensing
  - CPU, Chassis, Power Fan Tachometer
  - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU, Chassis Fan multi-speed control
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
• Form Factor
  - ATX Form Factor
  - High Density Glass Fabric PCB
• OS
  - Microsoft Windows^® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
