• CPU
  - Supports New 4^th and 4^th Generation Intel^® Xeon^® / Core™ i7 / i5 / i3 / Pentium^® / Celeron^® Processors (Socket 1150)
  - 4 Power Phase design
  - Supports Intel^® Turbo Boost 2.0 Technology
• Chipset
  - Intel^® H81
• Memory
  - Dual Channel DDR3/DDR3L Memory Technology
  - 2 x DDR3/DDR3L DIMM Slots
  - Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 16GB*
  - Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 32Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 1.1 compliance wake up events
  - SMBIOS 2.3.1 support
  - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
• Graphics
  - Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 4400/4600
  - Pixel Shader 5.0, DirectX 11.1
  - Max. shared memory 512MB*
  - Three graphics output options: D-Sub, DVI-D and HDMI**
  - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  - Supports HDCP with DVI-D and HDMI Ports
  - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports



  *The size of maximum shared memory may vary from different operating systems.

  **Supports up to 2 displays simultaneously.

  ***Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  ****Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

  *****Intel^® InTru™ 3D is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.
• Audio
  - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  - Premium Blu-ray Audio support
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Qualcomm^® Atheros^® AR8171
  - Supports Qualcomm^® Atheros^® Security Wake On Internet Technology
  - Supports Wake-On-LAN
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 2.0 x16 Slot
• Storage
  - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  - 1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
• Connector
  - 1 x Chassis Intrusion Header
  - 1 x TPM Header
  - 1 x CPU Fan Connector (4-pin)
  - 1 x Chassis Fan Connector (4-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 4 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (supports 2 USB 2.0 ports)
• Rear Panel I/O
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 1 x Optical SPDIF Out Port
  - 1 x eSATA Connector
  - 4 x USB 2.0 Ports
  - 2 x USB 3.1 Gen1 Ports
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Unique Feature

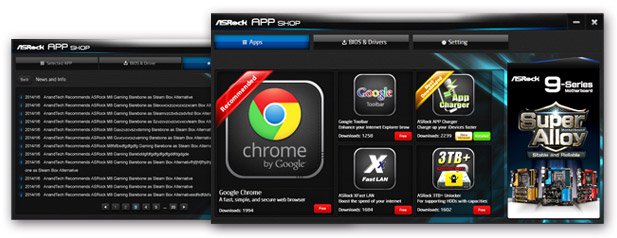

  - ASRock APP Shop
  - ASRock A-Tuning
  - ASRock Instant Flash
  - ASRock APP Charger
  - ASRock XFast USB
  - ASRock XFast RAM
  - ASRock Crashless BIOS
  - ASRock OMG (Online Management Guard)
  - ASRock Internet Flash
  - ASRock System Browser
  - ASRock UEFI Tech Service
  - ASRock Dehumidifier
  - ASRock Easy Driver Installer
  - ASRock Interactive UEFI
  - ASRock Fast Boot
  - ASRock Restart to UEFI
  - ASRock On/Off Play Technology
  - ASRock USB Key
  - ASRock FAN-Tastic Tuning
  - Hybrid Booster:
  - ASRock U-COP
  - Boot Failure Guard (B.F.G.)
  - Good Night LED
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial)
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor
  - CPU, Chassis temperature sensing
  - CPU, Chassis Tachometer
  - CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU, Chassis Fan multi-speed control
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor
  - Mini-ITX Form Factor
  - All Solid Capacitor design
• OS
  - Microsoft Windows^® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
