• A-Style
  - ASRock Cloud
• CPU
  - Supports Socket FM2+ 95W / FM2 100W processors
  - 4 + 2 Power Phase design
• Chipset
  - AMD A58 FCH (Bolton-D2)
• Memory
  - Dual Channel DDR3 Memory Technology
  - 4 x DDR3 DIMM Slots
  - Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 64GB*
  - Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2
  - Supports AMD Memory Profile Technology (AMP) up to AMP 2400
  - 15μ Gold Contact in DIMM Slots



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 64Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 1.1 Compliant wake up events
  - Supports jumperfree
  - SMBIOS 2.3.1 support
  - DRAM, CPU Voltage multi-adjustment
• Graphics
  - Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
  - DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
  - Max. shared memory 2GB
  - Dual graphics output: support DVI-D and D-Sub by independent display controllers
  - Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
  - Supports HDCP with DVI-D Port
  - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port
• Audio
  - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  - Supports Surge Protection (ASRock Full Spike Protection)
  - TI^® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets) (Line-Out on rear I/O only)
• LAN
  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111GR
  - Supports Wake-On-WAN
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  - Supports LAN Cable Detection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 1 x PCI Express 3.0 x16 Slot (PCIE4 @ x16 mode)
  - 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
  - 3 x PCI Express 2.0 x1 Slots
  - 2 x PCI Slots
  - Supports AMD Quad CrossFireX™, CrossFireX™ and Dual Graphics
  - 15μ Gold Contact in VGA PCIe Slot (PCIE4)



  *PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
• Storage
  - 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• Connector
  - 1 x COM Port Header
  - 1 x Power LED Header
  - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
  - 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
  - 1 x Power Fan Connector (3-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector

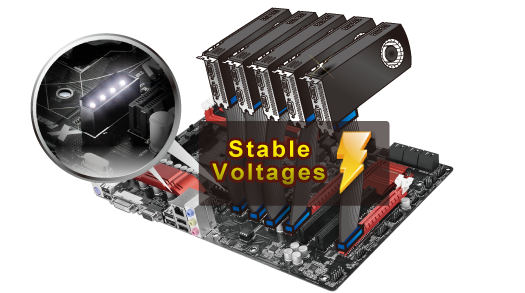

  - 1 x PCIe Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB Power Jumper (Ultra USB Power)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• Rear Panel I/O
  - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Unique Feature
  - ASRock A-Tuning
  - ASRock APP Shop
  - ASRock Instant Boot
  - ASRock Instant Flash
  - ASRock APP Charger
  - ASRock XFast RAM
  - ASRock Crashless BIOS
  - ASRock OMG (Online Management Guard)
  - ASRock Internet Flash
  - ASRock UEFI System Browser
  - ASRock UEFI Tech Service
  - ASRock Dehumidifier Function
  - ASRock Easy RAID Installer
  - ASRock Easy Driver Installer
  - ASRock Interactive UEFI
  - ASRock Fast Boot
  - ASRock X-Boost
  - ASRock Restart to UEFI
  - ASRock USB Key
  - ASRock FAN-Tastic Tuning
  - Hybrid Booster:
  - ASRock U-COP
  - Good Night LED
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor
  - CPU temperature sensing
  - Chassis temperature sensing
  - CPU Fan Tachometer
  - Chassis Fan Tachometer
  - CPU, Chassis Quiet Fan
  - CPU, Chassis Fan multi-speed control
  - Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  - ATX Form Factor
  - All Solid Capacitor design
  - High Density Glass Fabric PCB
• OS
  - Microsoft Windows^® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit



  *Carrizo FM2r2 processor supports Windows^® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
