• Einzigartige Features
  ASRock USB 3.1 Gen2
  - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
  - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
  ASRock Super Alloy
  - XXL Aluminum Alloy Heatsink
  - Premium 60A Power Choke
  - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  - IR3555M Dr. MOS 60A
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - I/O Armor
  - Matte Black PCB
  - High Density Glass Fabric PCB
  Intel^® 802.11ac WiFi
  ASRock Steel Slots
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Ultra USB Power
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
  - IR Digital PWM
  - 11 Power Phase design
  - Supports ASRock Hyper BCLK Engine III
• Chipsatz
  - AMD X399
• Arbeitsspeicher
  - Quad Channel DDR4 Memory Technology
  - 8 x DDR4 DIMM Slots
  - Supports DDR4 3600+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory(U-DIMM)
  - Max. capacity of system memory: 128GB*
  - 15μ Gold Contact in DIMM Slots



  *Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows^® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
• Grafik
  - n/a
• Audio
  - 7.1 CH HD Audio with Schutz von Inhalten (Realtek ALC1220 Audio Codec)
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - Supports Purity Sound™ 4
  - Nichicon Fine Gold Series Audio Caps
  - 120dB SNR DAC with Differential Amplifier
  - TI^® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  - Pure Power-In
  - Direct Drive Technology
  - PCB Isolate Shielding
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Gold Audio Jacks
  - 15μ Gold Audio Connector
  - Supports DTS Connect
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - 2 x GigaLAN Intel^® I211AT
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Dual LAN with Teaming*
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE



  *Teaming wird mit Windows® 10 RS2, RS3 und RS4 unterstützt.
• Drahtloses LAN
  - Intel^® 802.11ac WiFi Module (Free Bundle)
  - Supports IEEE 802.11a/b/g/n/ac
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 433Mbps
  - Supports Bluetooth 4.2 / 3.0 + High speed class II
• Steckplätze
  - 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))*
  - 1 x PCI Express 2.0 x1 Slot
  - Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
  - Supports NVIDIA^® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™
  - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)



  *Unterstützt NVMe-SSD als Boot-Festplatte
• Speicherplatz
  - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  - 1 x U.2 Connector**



  *Unterstützt NVMe-SSD als Boot-Festplatte
  Supports ASRock U.2 Kit

  ***If M2_1 is plugged, U.2 Connector will be disabled.
• Anschluss
  - 1 x Power LED and Speaker Header
  - 2 x RGB LED Headers*
  - 1 x CPU Fan Connector (4-pin)**
  - 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
  - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
  - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)*****
  - 1 x Right Angle Front Panel Audio Connector*****
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
  - 1 x Clear CMOS Switch
  - 1 x Dr. Debug with LED
  - 1 x Power Switch with LED
  - 1 x Reset Switch with LED
  - 1 x CPU Xtreme OC Switch



  *Jeder Header unterstützt bis zu 12V/3A, 36W-LED-Strip

  **Der CPU-Lüfteranschluss unterstützt CPU-Lüfter mit einer Leistung von maximal 1 Ampere (12 Watt).

  ***Der Anschluss CPU Optional/Water Pump Fan unterstützt Wasserkühler-Lüfter mit einer Leistung von maximale 1.5 Ampere (18 W).

  ****Der optionale Lüfteranschluss für Gehäuse oder Wasserpumpe unterstützt Wasserkühlungs-Lüfter mit maximal 1,5 Amper (18 Watt).
  CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

  *****Connect the audio device to either one of the audio connectors.
• Blende
  - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x Optical SPDIF Out Port
  - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  - 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)*
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x BIOS Flashback Switch
  - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



  *Ultra USB Power is supported on USB3_6 port.
• Software und UEFI
  Software
  - ASRock A-Tuning

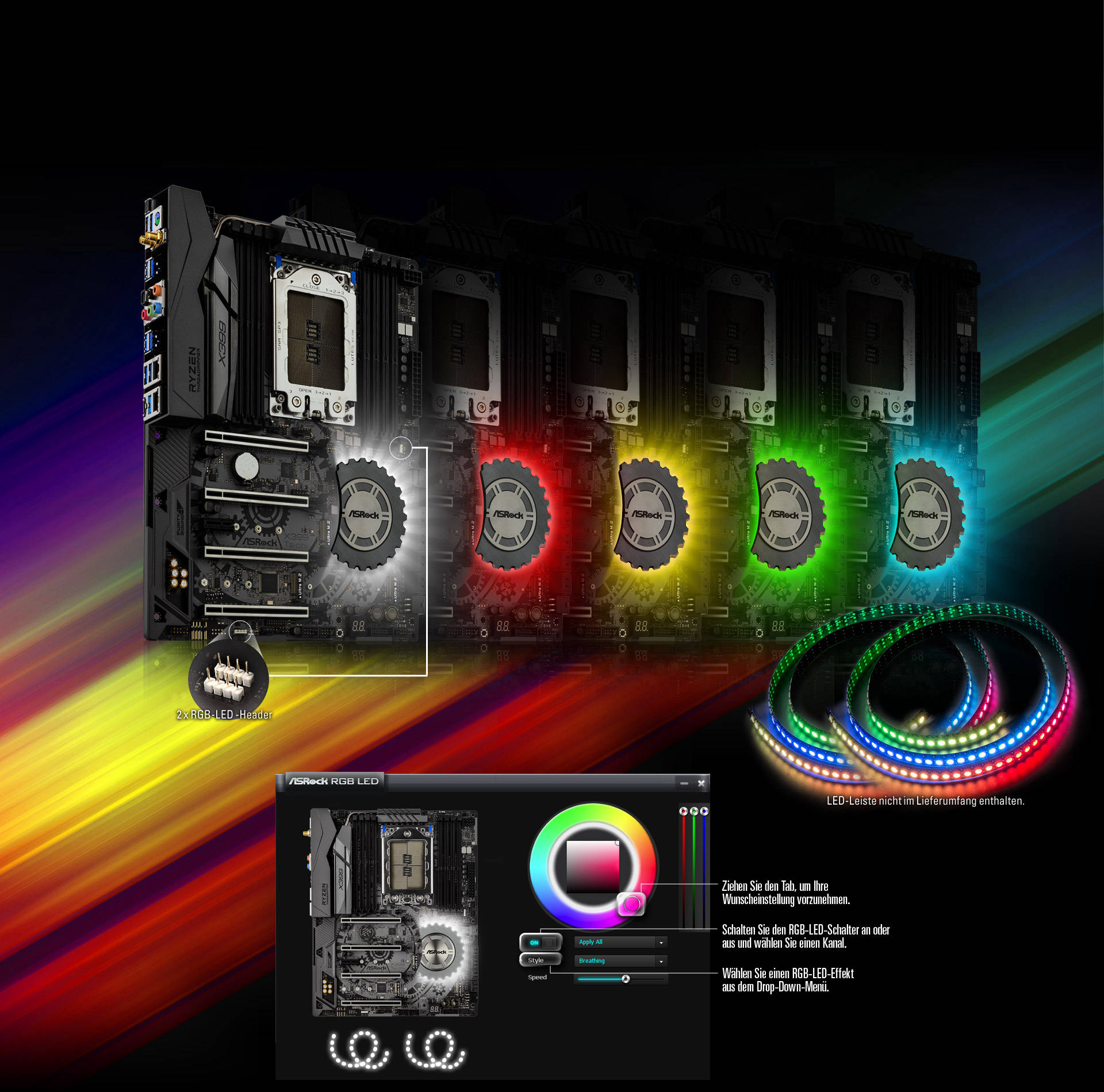

  - ASRock RGB LED
  - ASRock APP Charger
  UEFI
  - ASRock Full HD UEFI
  - ASRock Sofort-Flash
  - ASRock Crashless BIOS
  - ASRock Easy RAID Installer



  *Diese Tools können im Live Update & APP Shop heruntergeladen werden.
• Support-CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Produktzubehör
  - Quick Installation Guide, Support CD, I/O Shield
  - 4 x SATA Data Cables
  - 1 x ASRock 3-Way SLI™ Bridge Card
  - 1 x ASRock 4-Way SLI-S111 Bridge Card
  - 1 x ASRock SLI_HB_Bridge_3S Card
  - 2 x ASRock WiFi 2.4/5 GHz Antennas
  - 3 x Screws for M.2 Sockets
• Hardware überwachung
  - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
• Formfaktor
  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 8 Layer PCB
  - 2oz Copper PCB
• Betriebssystem
  - Microsoft^® Windows^® 10 64-bit
• Zertifizierungen
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

Die Spezifikationen können ohne vorherigen Hinweis geändert werden. Die Marken und Produktnamen sind Schutzmarken der jeweiligen Firmen. Alle Konfigurationen die von den original Spezifikationen abweichen werden nicht garantiert.

Das oben abgebildete User-Interface ist ein Referenzbeispiel. Das tatsächliche User-Interface kann von der Abbildung abweichen.
